HIGH FLOW CSR FILTER SYSTEMS
®

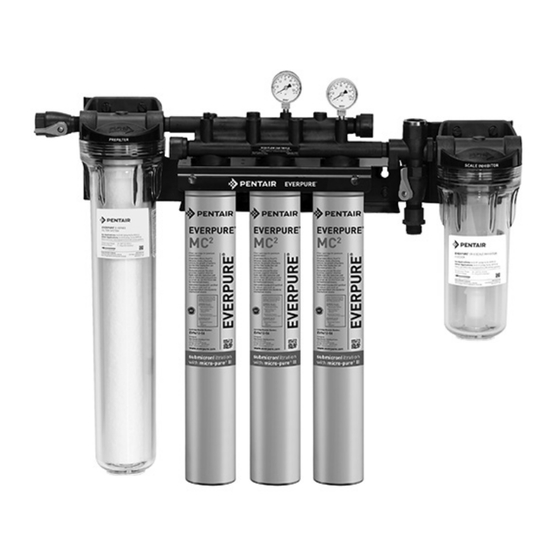

Figure 1 Twin
SELECT A MOUNTING LOCATION
1. Give consideration to the weight of the unit when
operating (filled with water). Operating weights of
Everpure High Flow CSR Systems are:
• Twin System - 45 lbs (20.4 kg)
• Triple System - 47 lbs (21.3 kg)
• Quad System - 49 lbs (22.2 kg)
• Quad Plus System - 49 lbs (25.2 kg) + separate
surge/storage tank @ 60 lbs (27.2 kg)
INSTALLATION
1. Use the predrilled mounting holes in the manifold
bracket as guides. Mark and drill anchor holes. Mount
securely. See Figures 5-8.
2. Shut off power to equipment. If system is an Everpure
High Flow CSR Quad Plus (separate Everpure SR-X
Feeder and surge/storage tank), proceed to step 4.
3. Connect outlet ports of High Flow system to equipment
served per the instructions below. Always use NSF
approved pipe dope or plumber tape at all connections.
Use a backup wrench on all fittings while connecting to
avoid stress on the system components.
• The cross fitting before the SR-X Feeder has a
threaded outlet on top. Connect a minimum 1/2" I.D.
line from this outlet to fountain beverage equipment.
• The cross fitting has a flushing valve installed on the
bottom. Connect tubing to the flushing valve and run
to drain.
NOTE: Some municipal plumbing codes and good
sanitary practices require an air gap at the drain
termination point.
FILTRATION & PROCESSING SOLUTIONS
Figure 2 Triple
HIGH FLOW CSR FILTER SYSTEMS INSTALLATION AND OPERATION GUIDE
Figure 3 Quad
2. The location should allow for (See Figures 1-8):
• Minimum clearance of 2-1⁄2" (6.4 cm) under the
cartridge(s) so it can be lowered for removal
and replacement.
• Adequate space for "in" and "out" water line
connections. Be near a drain for flushing and near a
110V outlet if the optional Everguard™ Low Pressure
Alarm is used.
• Additional mounting and floor space for the separate
Everpure SR-X Feeder and surge/storage tank
(Quad Plus).
• Connect the outlet of the SR-X Feeder to the ice
machine make-up water (not condenser water) line
and coffee brewing equipment. Proceed to step 5.
4. For Everpure High Flow CSR Quad Plus System, connect
outlet to equipment served per the instructions below.
Always use a NSF approved pipe dope or plumber tape at
all connections. Use a backup wrench on all fittings while
connecting to avoid stress on the system components.
• Locate and mount the separate SR-X Feeder between
the High Flow CSR system and the ice machine.
Make-up water (not condenser water) line and coffee
brewing equipment.
• A tee fitting is located in the system header before
the surge tank isolation and flushing valve. Using
minimum 1/2" I.D. line, connect the outlet of this tee to
the fountain beverage and remote SR-X Feeder line.
IMPORTANT: Install a tee in this service water line to
separate the fountain water feed from the ice
machine/coffee brewer water feed.
In Massachusetts, a backflow preventer is
required for this installation.
Figure 4 Quad Plus
