Pentair EVERPURE 1500 Quick Start Manual

1500 / 2500 / 3500 WATER FILTERS
SELECTING A LOCATION
1. Provide a solid mount for the head.
2. Allow minimum clearance of 2½" (6.5 cm) under the cartridge so that it
can be lowered for removal.
3. Allow space for the inlet and outlet water line connections.
MOUNT ONLY IN A VERTICAL POSITION!
OPERATING SPECIFICATIONS
Working Pressure Range: 10 psi (0.7 bar) - 125 psi (8.6 bar), non-shock
Temperature: 35-100° F (2-38° C)
Flow Rate: 0.5 gpm (1.89 Lpm)
For Cold Water use only.
1500/2500/3500 Drinking Water System Capacity:
Model 1500, using 1500 replacement cartridge: Capacity: 750 gal. (2,839 L)
Model 2500, using 2500 replacement cartridge: Capacity: 1,500 gal. (5,677 L)
Model 3500, using 3500 replacement cartridge: Capacity: 300 gal. (1,136 L)
Notes
All Everpure Drinking Water Systems must be maintained according to the manufacturer's instructions, including the timely
§
replacement of the filter cartridges. Check for compliance with state and local laws and regulations. For service and replace-
ment parts, contact an authorized Everpure distributor or the Everpure factory.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the
system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
INSTALLATION
1. Before installing the system, determine the bracket position from the illustrations to
the right, best suited to accommodate the inlet and outlet water line connections.
2. Using the bracket as template, mark and set the provided bracket mounting screws
and star washers (or bolts if preferred).
3. Install 1/4" compression fitting into the head. Take care not to cross-thread the
fittings. Be sure to use plumbers tape or a good quality pipe joint compound on the
fitting threads.
4. Bring the inlet and outlet tubing to the head fittings and attach. Double check the
connections to be sure water will follow the direction-of-flow arrow on top of the
head; water supply to the inlet fitting and your faucet to the outlet fitting.
5. Install a cartridge following the instructions on back page.

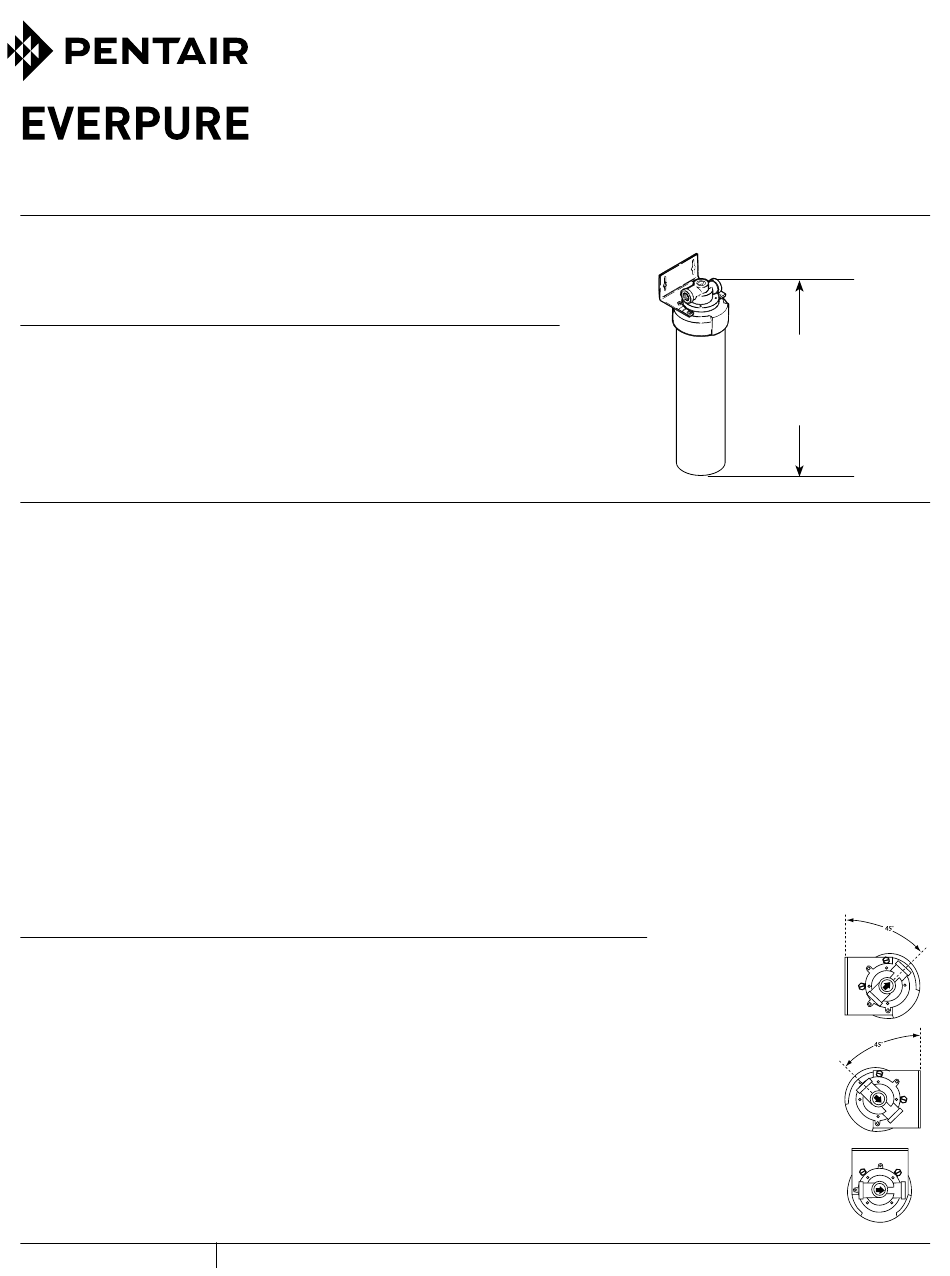

PENTAIR EVERPURE
1500 / 2500 / 3500 WATER FILTERS INSTRUCTION & OPERATION GUIDE
2" (5.0 cm) Allowance for
cartridge insertion
Unit Dimensions with:
• Everpure 1500 Cartridge:
12 ⁄ " (32.4 cm)
3
4
• Everpure 2500 Cartridge:
17 ⁄ " (45.1 cm)
3
4
Illustration A
Bracket Angled
45º to Left
Illustration B
Bracket Angled
45º to Right
Illustration C
Bracket
Straight Back
