- Page 1 Order code: STRO21 User manual...
-
Page 2: Safety Instructions
Equinox Lightning Strike Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations

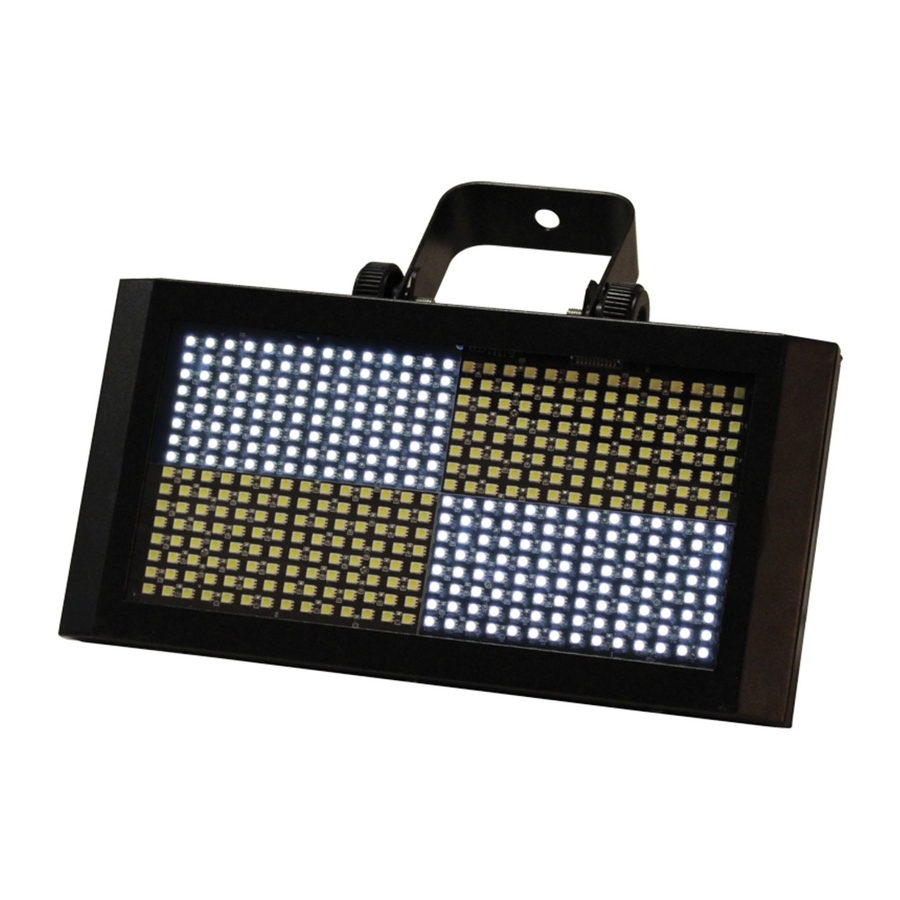

Equinox Lightning Strike Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Equinox Lightning Strike Technical specifications You should find inside the Equinox carton the following items: 1, Equinox Lightning Strike 2, Instruction manual 3, Power cable Technical Specifications: • 448 x White SMD LEDs (6900K) • Beam angle: 160 degrees • 0-100% dimming and variable strobe •...
- Page 5 Equinox Lightning Strike Operations Operation: DMX mode: To access the DMX mode, press the “MODE” button to show “512” on the LED display. Now press the “ENTER” button to set the DMX address from 001-512 using the “UP” and “DOWN” buttons. To select the one of the four DMX channel modes, press the “ENTER”...
- Page 6 Equinox Lightning Strike DMX Charts 1 channel DMX chart (dimming): Channel Value Function 0-255 Dimming 0 - 100% 1 channel DMX chart (strobe): Channel Value Function 0-10 No function 11-255 Strobe (slow to fast) 4 channel DMX chart: Channel Value Function 0-255 Bottom right corner 0-100%...
- Page 7 Equinox Lightning Strike DMX Charts 7 channel DMX chart (dimming): Channel Value Function 0-255 Bottom right corner 0-255 Bottom left corner 0-255 Top right corner 0-255 Top left corner 0-255 Master dimmer 0-100% 0-39 No function 40-59 Built-in programme 1 60-79 Built-in programme 2 80-99...
- Page 8 Equinox Lightning Strike DMX Set Up DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out”...
- Page 9 Equinox Lightning Strike DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic behaviour.
- Page 10 Equinox Lightning Strike Notes Notes:...
- Page 11 Equinox Lightning Strike Notes Notes:...
