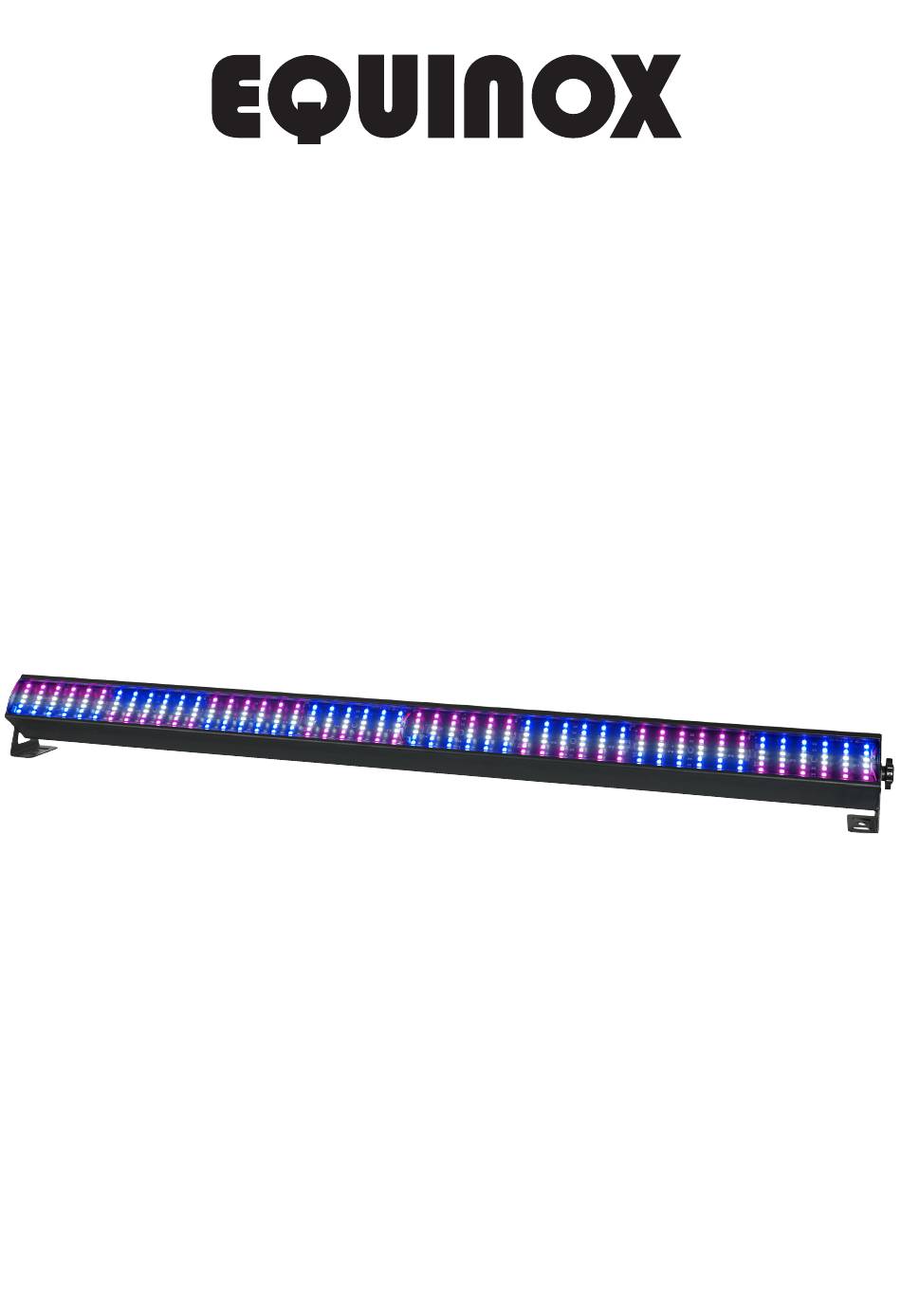

Spectra Strobe Batten
User Manual
Order codes: EQLED056

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectra Strobe Batten and is the answer not in the manual?

Questions and answers

Related Manuals for Equinox Systems Spectra Strobe Batten

Summary of Contents for Equinox Systems Spectra Strobe Batten

  • Page 1 Spectra Strobe Batten User Manual Order codes: EQLED056...

  • Page 2: Safety Advice

    Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 3 Spectra Strobe Batten The Spectra Strobe Batten contains 192 SMD 5050 RGB LEDs divided into 16 segments plus a central strip of 96 white SMD 5630 LEDs. They feature a wide 135° viewing angle and feature a milky, frost effect front screen along with clear front screen to further expand the versatility of this fixture.

  • Page 4: Technical Specifications

    10 - Fuse F3A 250V 2 x adjustable knobs 03 - IEC power output 07 - Function buttons 11 - IEC power input & 1 x power cable 04 - Earth point 08 - 3-Pin XLR input www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 5 U 0 0 0 U 2 5 5 S t 0 S t 9 C L 0 1 C L 3 7 S t A t Static colour mode S t 0 S t 9 www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 6 S e n d to all fixtures s e n d v e r V - - - Software version I n f o t e n P - - - C Fixture temperature www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 7 To exit out of any of the above options, press the “MENU” button. 6 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 000-009 No function 010-255 Strobe (slow-fast) 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 White dimmer (0-100%) www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 8 203-209 Program 29 174-179 Program 29 210-216 Program 30 180-185 Program 30 217-223 Program 31 186-191 Program 31 224-230 Program 32 192-197 Program 32 231-255 Auto 198-203 Program 33 000-255 Speed (slow-fast) 204-209 Program 34 www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 9 Program 24 147-153 Program 21 150-155 Program 25 154-160 Program 22 156-161 Program 26 161-167 Program 23 162-167 Program 27 168-174 Program 24 168-173 Program 28 175-181 Program 25 174-179 Program 29 182-188 Program 26 www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 10 000-255 White dimmer 4 & 12 (0-100%) CH29 000-255 White dimmer 5 & 13 (0-100%) CH30 000-255 White dimmer 6 & 14 (0-100%) CH31 000-255 White dimmer 7 & 15 (0-100%) CH32 000-255 White dimmer 8 & 16 (0-100%) www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 11 000-255 Green dimmer 12 (0-100%) CH36 000-255 Blue dimmer 12 (0-100%) CH37 000-255 Red dimmer 13 (0-100%) CH38 000-255 Green dimmer 13 (0-100%) CH39 000-255 Blue dimmer 13 (0-100%) CH40 000-255 Red dimmer 14 (0-100%) www.prolight.co.uk Spectra Strobe Batten User Manual...

  • Page 12: Master/Slave Mode

    . Press the “ENTER” button to confirm the setting. Value: 000 - 255 (000 = low brightness, 255 = high brightness) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 13 CL02 CL14 CL26 CL03 CL15 CL27 CL04 CL16 CL28 CL05 CL17 CL29 CL06 CL18 CL30 CL07 CL19 CL31 CL08 CL20 CL32 CL09 CL21 CL33 CL10 CL22 CL34 CL11 CL23 CL35 CL12 CL24 CL36 CL37 www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 14 To access the fixture temperature press the “MENU” button to show on the LED display. Now tenp press the “ENTER” button and use the “UP” and “DOWN” buttons to select . Press the “ENTER” button to display the temperature. www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 15 Pixel zone orientation IEC input IEC output www.prolight.co.uk Spectra Strobe Batten User Manual...

  • Page 16: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Spectra Strobe Batten User Manual...

  • Page 17: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 18 Please note: Caution should be used when power linking other fixtures to the Spectra Strobe Batten as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 19: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Strobe Batten User Manual...
  • Page 20 Spectra Strobe Batten User Manual...
