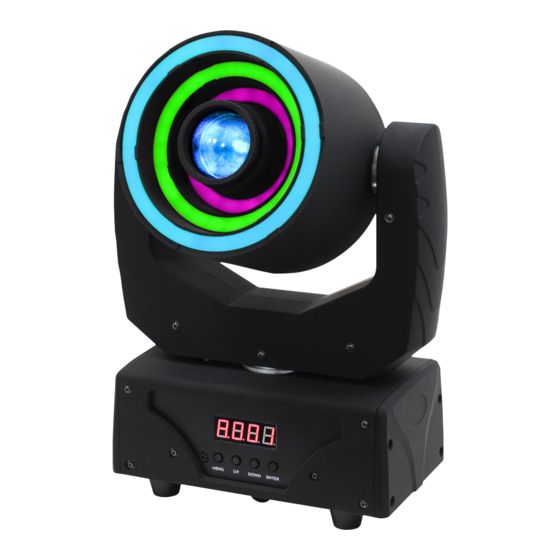

Equinox Systems Saturn Spot User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Saturn Spot
User Manual
Order code: EQLED023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saturn Spot and is the answer not in the manual?

Questions and answers

Related Manuals for Equinox Systems Saturn Spot

Summary of Contents for Equinox Systems Saturn Spot

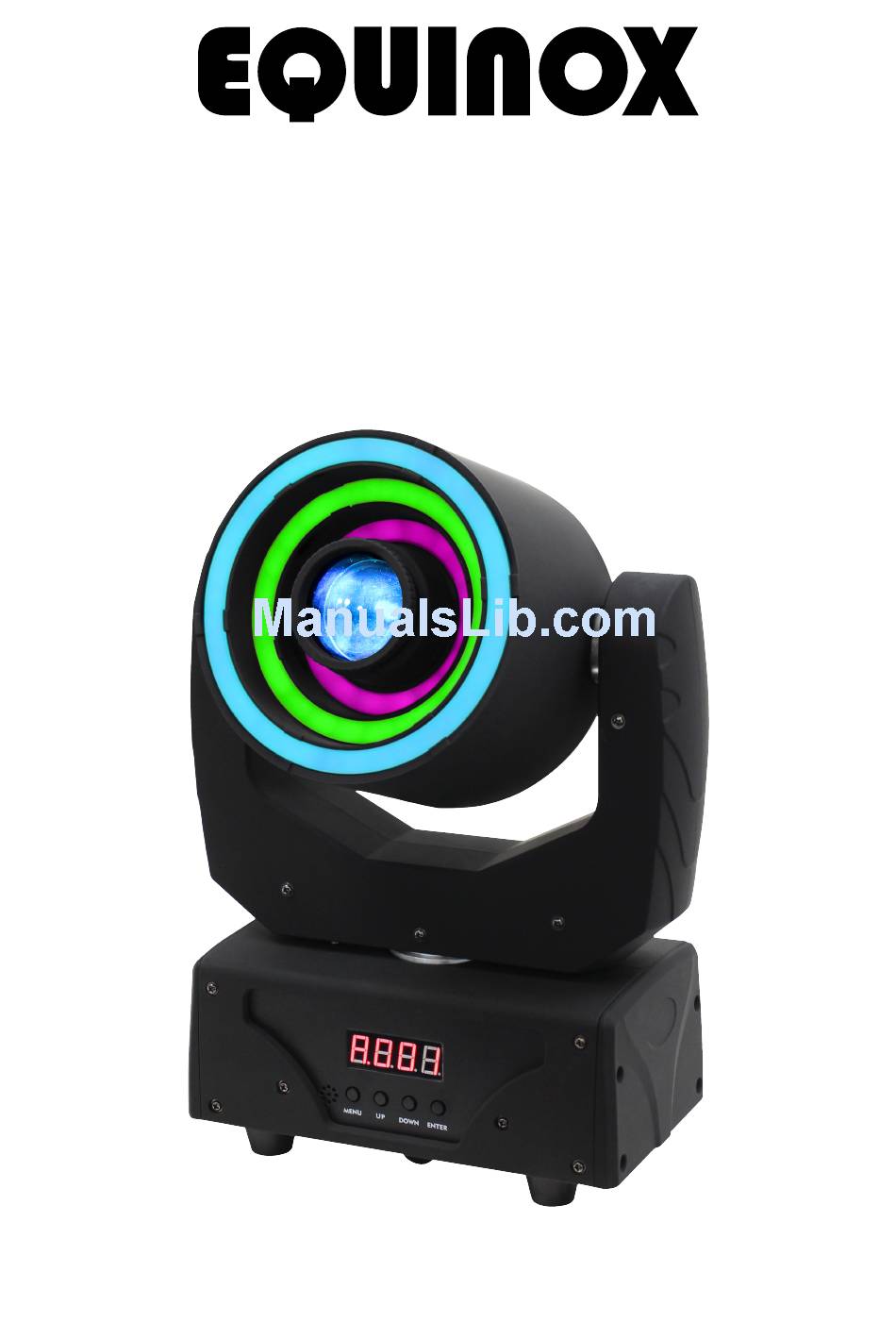

  • Page 1 Saturn Spot User Manual Order code: EQLED023...

  • Page 2: Safety Advice

    NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Saturn Spot User Manual...
  • Page 3 Specifications • 4 push button menu with LED display • Gobo wheel: 9 static gobos + open Power consumption • IEC power input/output • Colour wheel: 9 dichroic colours + Power supply 100~240V, 50/60Hz open • 3-Pin XLR input/output Fuse T1A 250V • DMX channels: 12 or • Temperature controlled fan Dimensions 370 x 260 x 160mm 23 selectable for whisper quiet operation Weight 4.8kg • Auto, sound active and Order codes EQLED023 master/slave modes 3° - Lux 64000 16000 7110 4000 2560 3° 160mm 260mm www.prolight.co.uk Saturn Spot User Manual...

  • Page 4: Technical Specifications

    Technical specifications POWER CONSUMPTION: 90W FUSE: T1A 250V MENU DOWN ENTER In the box: 1 x fixture, 01 - LED display 05 - DMX output socket 1 x power cable, 02 - Function buttons 06 - IEC power input socket 1 x omega clamp, 03 - Microphone 07 - IEC power output socket & 1 x user manual 04 - DMX input socket 08 - Fuse T1A 250V www.prolight.co.uk Saturn Spot User Manual...

  • Page 5: Master/Slave Mode

    S 0 0 0 S E n S Sound sensitivity S 0 9 9 5 4 0 A n g L Pan angle 6 3 0 y E S P I n t Pan invert www.prolight.co.uk Saturn Spot User Manual...

  • Page 6: Motor Reset

    F F F h r s - - - H Fixture hours u E r U - . - Software version r E S t Motor reset d E F A Reset all values www.prolight.co.uk Saturn Spot User Manual...

  • Page 7: Operating Instructions

    DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU” button and use the “UP” and “DOWN” buttons on A001 the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. DMX channel mode: To access the DMX channel mode, press the “MENU” button and use the “UP” and “DOWN” buttons on Chnd the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of the 12 or 23 DMX channel modes. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. PLEASE NOTE: When the unit is receiving DMX the first red dot on the display will flash. Gobos: Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 www.prolight.co.uk Saturn Spot User Manual...
  • Page 8 Yellow, Magenta, Cyan, White 161-165 Effect 165-177 Gobo 3 Shaking 166-255 Colour chase 178-190 Gobo 4 Shaking CH11 000-255 SMD ring speed (slow-fast) 191-203 Gobo 5 Shaking 000-049 No function 204-216 Gobo 6 Shaking 050-099 Auto program 1 217-229 Gobo 7 Shaking 100-149 Auto program 2 230-242 Gobo 8 Shaking CH12 150-199 Auto program 3 243-255 Gobo 9 Shaking 200-249 Sound active 250-255 Motor reset www.prolight.co.uk Saturn Spot User Manual...
  • Page 9 R+B chase 165-177 Gobo 3 Shaking 106-110 G+B chase 178-190 Gobo 4 Shaking 111-115 R+G+B chase 191-203 Gobo 5 Shaking 116-120 Red zoom out 204-216 Gobo 6 Shaking 121-125 Green zoom out 217-229 Gobo 7 Shaking 126-130 Blue zoom out 230-242 Gobo 8 Shaking 131-135 RGB zoom out 243-255 Gobo 9 Shaking 136-140 Red zoom in Inner SMD ring red dimmer (0- CH10 000-255 141-145 Green zoom in 100%) www.prolight.co.uk Saturn Spot User Manual...
  • Page 10 23 channel mode cont...: Channel Value Function 146-150 Blue zoom in 151-155 RGB zoom in CH21 156-160 Red, Green, Blue, White Effect cont. Yellow, Magenta, Cyan, White 161-165 Effect 166-255 Colour chase CH22 000-255 SMD ring speed (slow-fast) 000-049 No function 050-099 Auto program 1 100-149 Auto program 2 CH23 150-199 Auto program 3 200-249 Sound active 250-255 Motor reset www.prolight.co.uk Saturn Spot User Manual...
  • Page 11 (Blackout). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Sound sensitivity: To adjust the sound sensitivity, press the “MENU” button and use the “UP” and “DOWN” buttons on the SEns front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” S000 S099 and “DOWN” buttons to choose between . Press the “ENTER” button to confirm the setting. Value: 000 - 099 (000 = low, 099 = high) To exit out of any of the above options, press the “MENU” button. Pan angle: To access the pan angle setting, press the “MENU” button and use the “UP” and “DOWN” buttons on the AngL front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between (540° pan) or (630° pan). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Saturn Spot User Manual...
  • Page 12 P255 “UP” and “DOWN” buttons to choose between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Tilt fine setting: To access the tilt fine setting, press the “MENU” button and use the “UP” and “DOWN” buttons on tAdJ the front of the unit to show on the LED display. Now press the “ENTER” button and use the P000 P255 “UP” and “DOWN” buttons to choose between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. LED backlight: To access the LED backlight setting, press the “MENU” button and use the “UP” and “DOWN” buttons on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display invert setting: To access the display invert setting, press the “MENU” button and use the “UP” and “DOWN” buttons on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Saturn Spot User Manual...
  • Page 13 Operating instructions Fixture hours: To display the fixture hours , press the “MENU” button and use the “UP” and “DOWN” buttons on Fhrs the front of the unit to show on the LED display. Press the “ENTER” button and the fixture hours will be displayed. To exit out of any of the above options, press the “MENU” button. Software version: To display the software version , press the “MENU” button and use the “UP” and “DOWN” buttons on the front of the unit to show on the LED display. Press the “ENTER” button and the software version will be displayed. To exit out of any of the above options, press the “MENU” button. Motor reset: To reset the units motors, press the “MENU” button and use the “UP” and “DOWN” buttons on rESt the front of the unit to show on the LED display. Press the “ENTER” button and motors will perform a reset. To exit out of any of the above options, press the “MENU” button. Reset all values: To reset the units values to the factory settings, press the “MENU” button and use the “UP” and “DOWN” dEFA buttons on the front of the unit to show on the LED display. Press the “ENTER” button and the values will be set to factory settings. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Saturn Spot User Manual...

  • Page 14: Dmx Setup

    DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Saturn Spot User Manual...

  • Page 15: Line Termination

    5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Saturn Spot User Manual...

  • Page 16: Weee Notice

    WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Saturn Spot User Manual...
