6.5
Audio Jacks (P5, P9)
The Fit-PC3 features two 3.5mm jacks. The analog audio signal pin-outs are compatible with
standard 3-pole audio cables. The additional pins (S/PDIF output on P5 and S/PDIF input on P9) are
accessible with the 3.5mm-to-RCA adapter cable (CompuLab P/N 199D10300) available from
CompuLab.

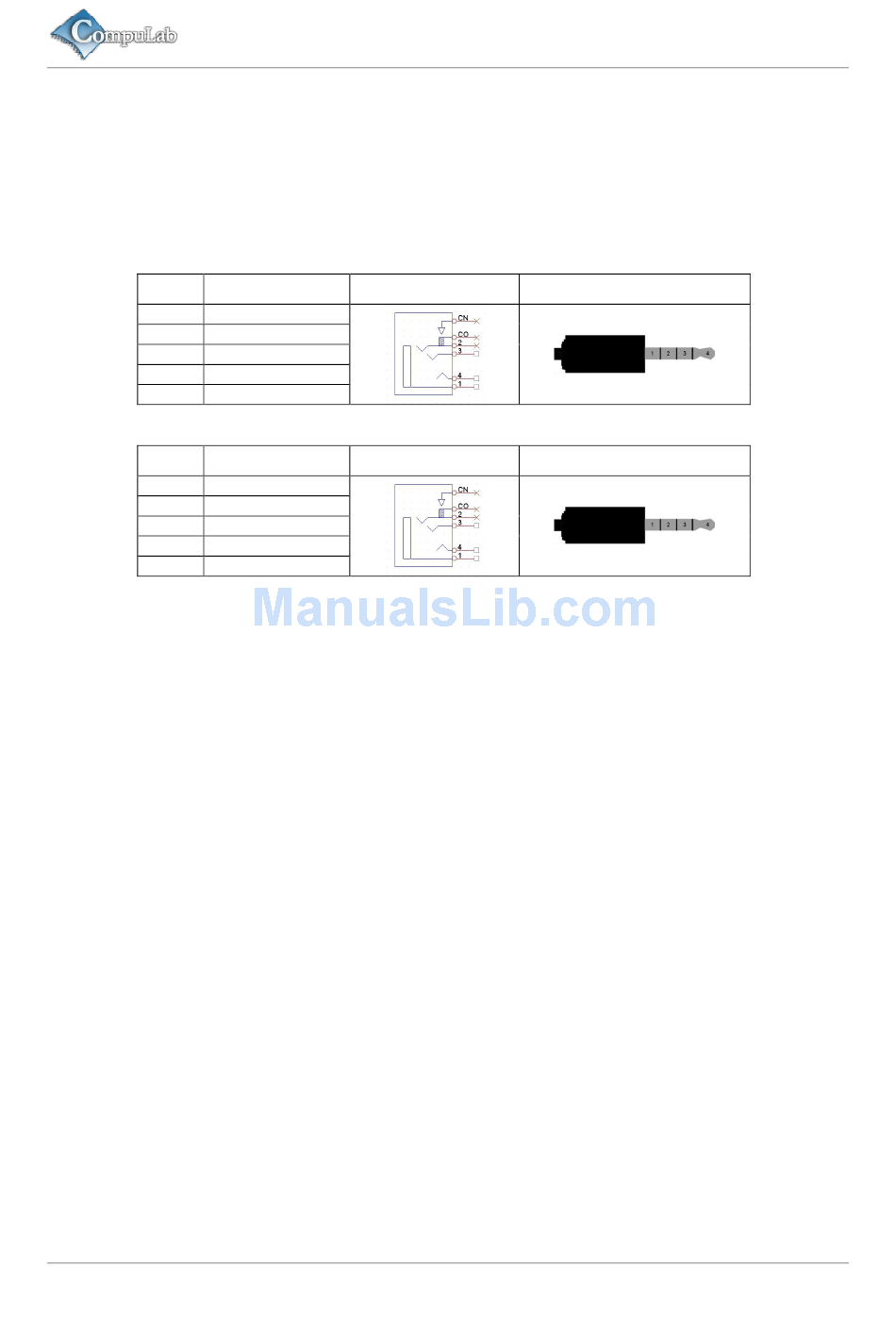

Table 18
Pin
1
AUDIO_GND
2
S/PDIF_OUT
3
AUDIO_OUT_R
4
AUDIO_OUT_L
CO
SENSE_OUT
Table 19
Pin
1
AUDIO_GND
2
SPDIF_IN
3
AUDIO_IN_R
4
AUDIO_IN_L
CO
SENSE_IN
Revised December 2011
P5 connector pin-out
Signal Name
Jack pin-out
P9 connector pin-out
Signal Name
Jack pin-out
SBC-FITPC3
Connectors
Mating plug
Mating plug
21
