Summary of Contents for CompuLab UTILITE2

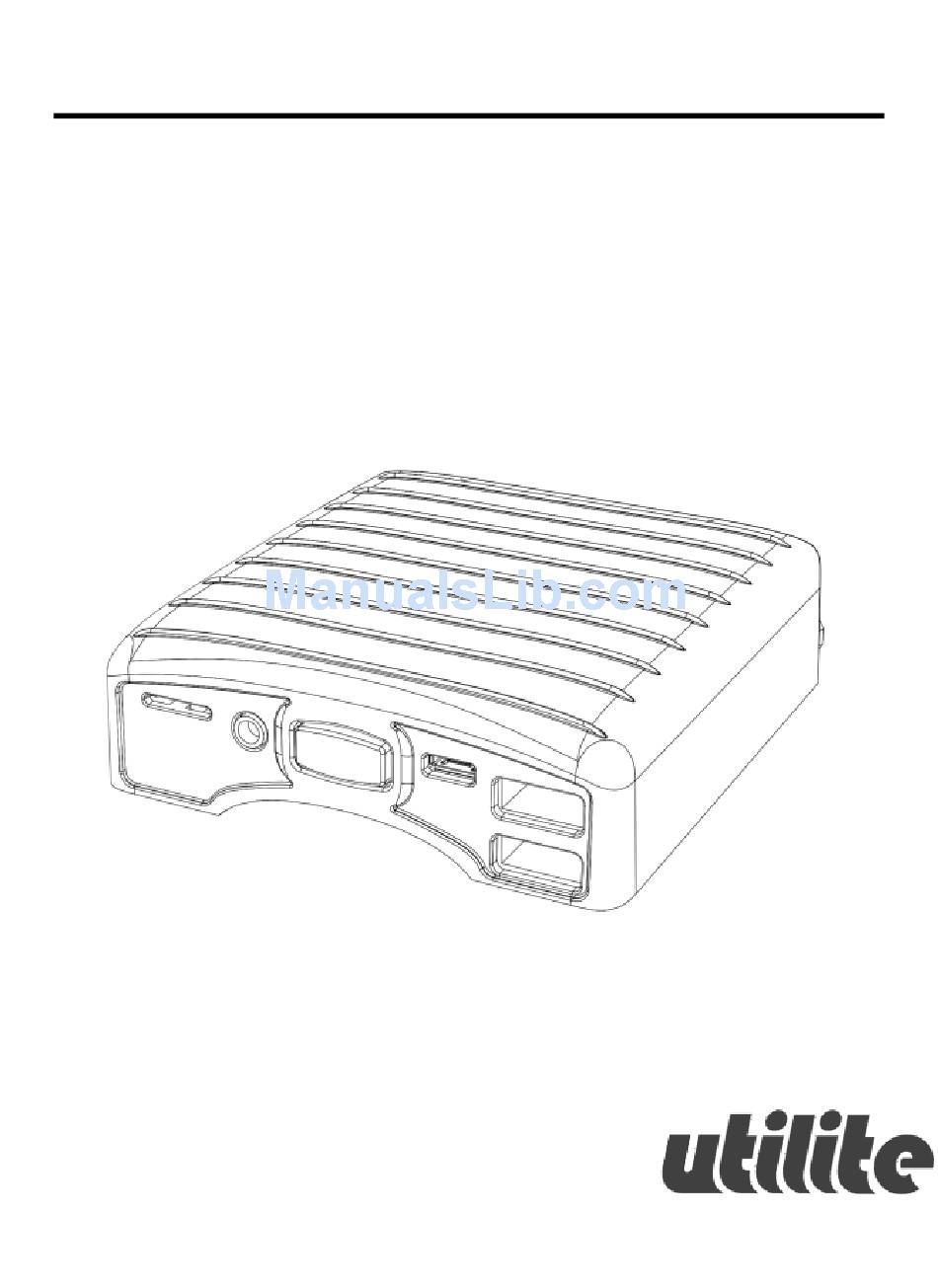

- Page 1 Utilite2 User’s Guide...
-
Page 2: Table Of Contents
Utilite2 Features ..........5 Utilite2 Overview ..........6 Front View ..........6 Rear View........... 6 Getting started with Utilite2 ......7 Connecting a display ........7 Connecting keyboard and mouse ....7 Connecting power ........7 Turning on the system ....... 7 System login .......... - Page 3 Power LED..........9 Audio ............9 Debug console ......... 10 Utilite2 Maintenance ........11 Opening bottom cover ......11 Utilite2 service area ......... 12 Micro-USB mux setting ......12 mSATA socket .......... 13 Expansion socket ........13 Utilite2 Software ..........14 General ............
-
Page 4: Package Contents
Package Contents Utilite2 computer 12V DC power supply unit Power supply AC blade 2x WiFi antenna User’s guide December 2014... -
Page 5: Utilite2 Features
1000 BaseT Ethernet port WiFi 802.11b/g/n Bluetooth Bluetooth 4.0 Audio Stereo line-out, line-in Four USB 2.0 480Mbps USB OTG Micro-SD socket, SDXC Serial Serial debug console via USB connector Power 12V DC Optional feature. Availability depends on Utilite2 model configuration. December 2014... -
Page 6: Utilite2 Overview

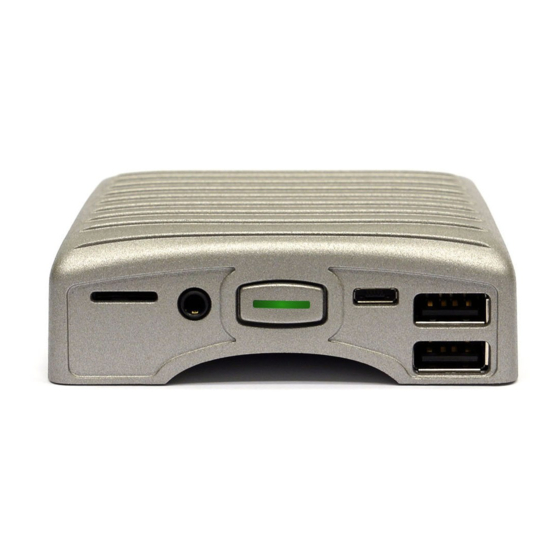

Utilite2 Overview Front View Rear View December 2014... -
Page 7: Getting Started With Utilite2
Getting started with Utilite2 Connecting a display Connect the display to the Utilite2 HDMI display output using a standard HDMI cable. Connecting keyboard and mouse Connect USB mouse and keyboard devices to the Utilite2 USB connectors. Connecting power Insert the AC power-supply blade into the power supply unit. -
Page 8: System Login
System login Log into the O/S using the following user details: Username: utilite Password: 111111 For root access please use the following credentials: Username: root Password: 111111 December 2014... -
Page 9: Using Utilite2
15 seconds, shuts down the system. Power LED Utilite2 power LED indicates the system power state. When the system is active, the LED is green. When the system is shut down, the LED is orange. -
Page 10: Debug Console
“Maintenance” section of this document. The debug console is implemented as a serial-over-USB interface. Connect the Utilite2 micro-USB connector to a host PC USB port with a standard micro-USB cable. The debug interface should be detected as a standard COM port device. -
Page 11: Utilite2 Maintenance
Utilite2 Maintenance Utilite2 provides user access to micro-USB mux jumper, mSATA socket and expansion socket through a removable bottom cover. Utilite2 requires no maintenance. You should not disassemble Utilite2 other than opening the bottom cover. Disassembling Utilite2 will void its warranty. -
Page 12: Utilite2 Service Area
Utilite2 service area Micro-USB mux setting The micro-USB multiplexing setting is controlled by the micro- USB mux jumper shown above. Remove the jumper to set the micro-USB connector output to USB OTG mode. Assemble the jumper to set the micro-USB connector output to debug console mode. -
Page 13: Msata Socket
Expansion socket Utilite2 expansion socket supports USB cellular modem modules in mini-PCIe form-factor. Compatible cellular module is available from CompuLab as a separate cellular kit. The expansion socket does not support mini-PCIe cards. Install the modem module into the expansion socket. -
Page 14: Utilite2 Software
For further information and documentation please visit http://utilite-computer.com/web/support System recovery n case of firmware or O/S corruption, Utilite2 design allows full system recovery by using a downloadable recovery image and a standard micro-SD card. For recovery instructions please refer to http://utilite-computer.com/web/support...
