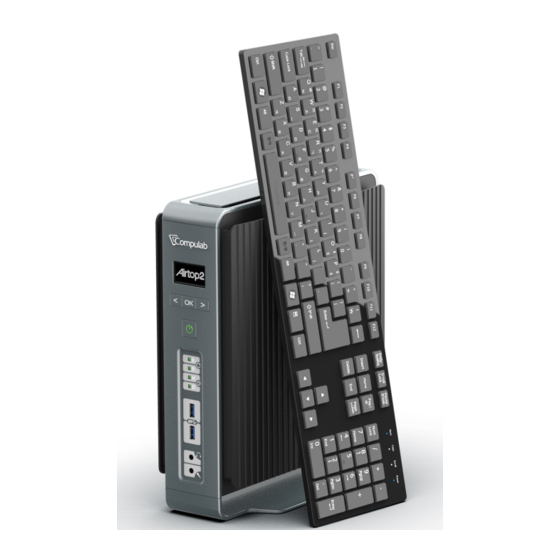

Summary of Contents for CompuLab Airtop2

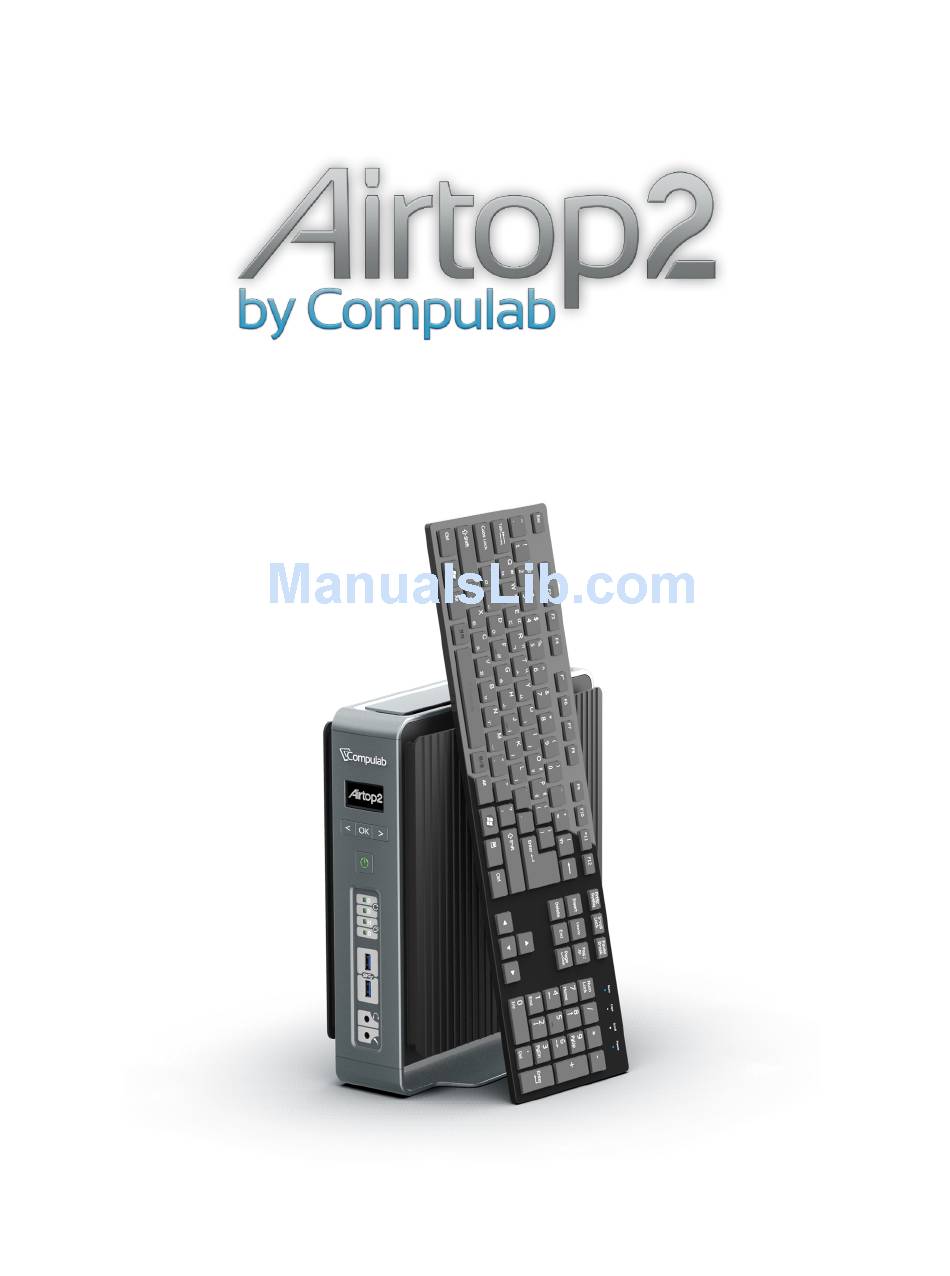

- Page 1 Owner’s Manual Revision 1.2 9-Jul-2018...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................................3 Quick Start Guide ....................................4 Airtop2 hardware specifications ................................5 Airtop2 features ....................................7 Airtop2 devices and installation ................................9 BIOS ........................................12 Troubleshooting ....................................12 Safety instructions....................................13 Warranty and RMA .................................... 13 Regulatory Information ................................ -
Page 3: Introduction
3. AC Cord (North American) 4. HDMI to DVI adapter 5. Mini-serial to DB9-male adapter cable 6. 16x M3 screws for HDD To use Airtop2 you will need: • A monitor with DisplayPort or HDMI/DVI input + DVI/HDMI cable adapter if needed •... -
Page 4: Quick Start Guide
Tel: +972-48-290-168 www.fit-iot.com Quick Start Guide Several Airtop2 models are sold “Barebone” – without RAM and storage. To install RAM and storage please consult “Installation and Service” below. Choosing placement for Airtop2 Please consider the following when placing Airtop2 •... -
Page 5: Airtop2 Hardware Specifications
Hayetsira St. 17, Yokneam, Israel Tel: +972-48-290-168 www.fit-iot.com Airtop2 hardware specifications Intel Core i7-7700 | Other pin-compatible CPUs are available for large volume orders. Intel Xeon E3-1275 v6 Chipset Intel C236 Chipset Up to 64 GB DDR4 ECC | 4x UDIMM DDR4-2400/2133 ECC | Non-ECC... - Page 6 10 cm (W) x 30 cm (H) x 25.5 cm (D) Weight 6 Kg to 9 Kg* Housing All aluminum housing & cooling Natural airflow cooling (fanless) Mounting Wall mounting bracket* * Sold separately DIN-rail mounting bracket* Page 6 of 14 www.fit-iot.com Airtop2 owner’s manual...
-
Page 7: Airtop2 Features
Hayetsira St. 17, Yokneam, Israel Tel: +972-48-290-168 www.fit-iot.com Airtop2 features I/O and internal devices Dimensions Page 7 of 14 www.fit-iot.com Airtop2 owner’s manual... - Page 8 Hayetsira St. 17, Yokneam, Israel Tel: +972-48-290-168 www.fit-iot.com Block diagram Page 8 of 14 www.fit-iot.com Airtop2 owner’s manual...
-
Page 9: Airtop2 Devices And Installation
The standard FACE Module of Airtop2 (FM-AT2) has a LED marked “R” for RAM. After RAM initialization the “R” LED changes color from amber to green. If Airtop2 does not boot, check “R” LED color. If color is not green there is a problem with RAM detection. - Page 10 All storage devices are passively cooled by a dedicated large heatsink. NVMe / SSD Airtop2 supports 2x NVMe / SATA SSD with a form factor of M.2 M-Key 2280 | 2260 | 2242 The NVMe devices each has PCIe x4 interface.
- Page 11 (down) • Push the cartridge onto the left bracket and hang it on the right bracket • Close the cartridge ejector (lift yellow lever) and press until it clicks into place. Page 11 of 14 www.fit-iot.com Airtop2 owner’s manual...
-
Page 12: Bios
By default Airtop2 ships with the FM-AT2 FACE Module that has 4 LEDs marked B, R, H, D Turn on Airtop2 and observe the R LED. Normally it would turn amber for a short period (during RAM detection) and upon successful detection it will turn green. -
Page 13: Safety Instructions
• Warranty on the replaceable battery is 24 months only • Your sole remedy and Compulab’s sole liability shall be for Compulab, at its sole discretion, to either repair or replace the defective product at no charge • This warranty is void if the product has been altered or damaged by accident, misuse or abuse Keep the original package for shipping in case of hardware failure. -
Page 14: Regulatory Information
-Connect the equipment into an outlet on a circuit different party responsible compliance from that to which the receiver is connected. (Compulab Ltd.) could void the user’s -Consult the dealer or an experienced radio/TV technician for authority to operate the equipment. help. WEEE...
