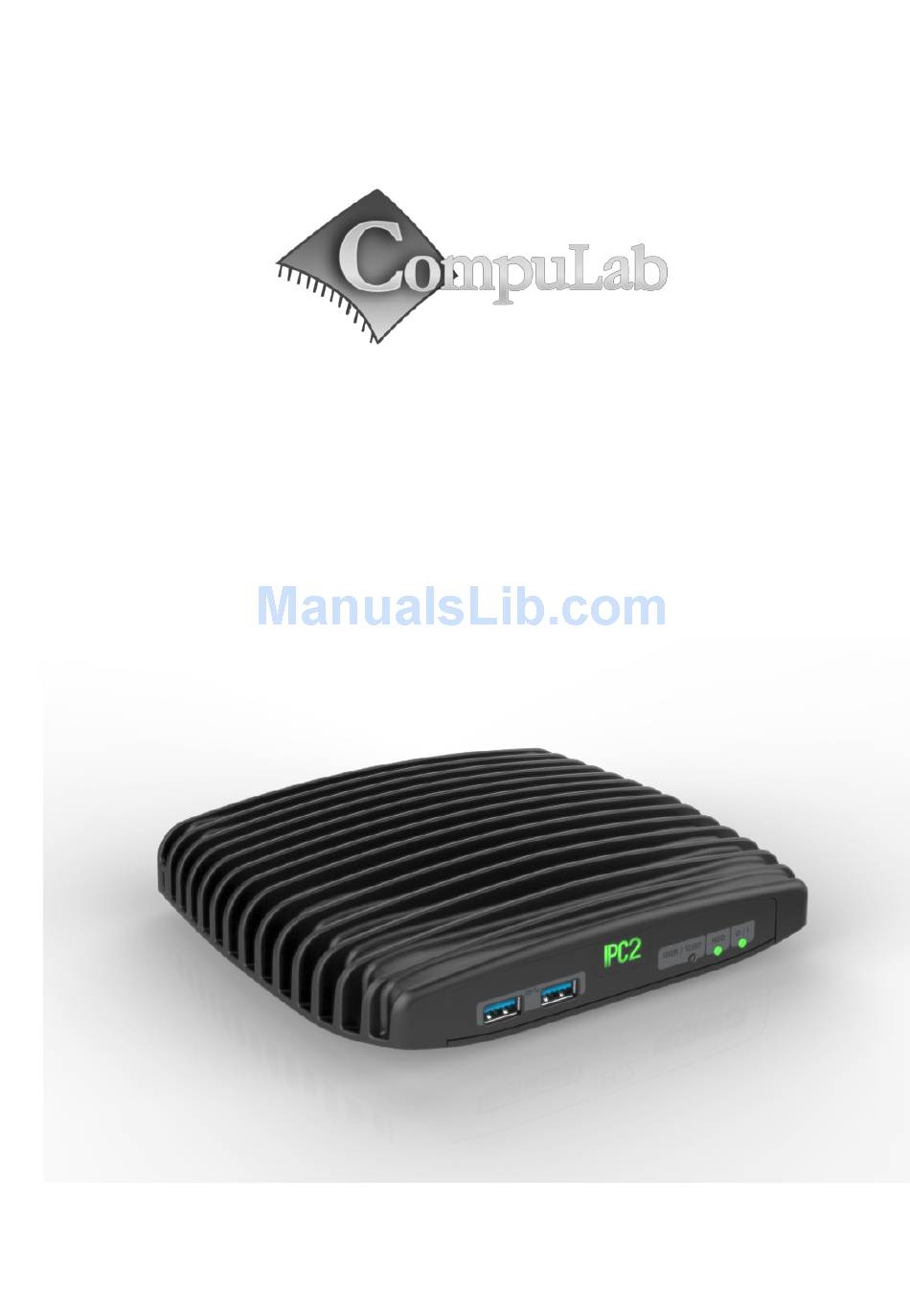

  • Page 1 IPC2 Owner’s Manual...
  • Page 2 IPC2 Owner’s Manual February -2014 Introduction Package contents Hardware specifications IPC2 features Quick start guide Connecting IPC2 Booting Linux Booting Windows 7 Maintenance Opening service door Service bay BIOS Setup Utility Warranty and RMA Warranty Tips for saving power General...

  • Page 3: Package Contents

     A display with DVI, HDMI or DisplayPort input + DVI, HDMI or DisplayPort cable  USB keyboard and mouse * Local resellers may supply IPC2 with other AC cord types. Hardware specifications Processor Type Intel 4th Gen Core Celeron-2955U / i3-4010U / i5-4300U / i7-4600U...
  • Page 4 Networking 2x GbE LAN ports LAN1: Intel I218 GbE PHY (MAC integrated into the chipset) (RJ-45) LAN2: Intel I211 GbE controller (RJ-45) Wireless WLAN 802.11ac (2.4/5GHz dual band Intel 7260HMW) Bluetooth 4.0 Connectivity 4x USB 3.0 2x USB 2.0 Serial 3x Serial communication ports COM0: Full RS232 via mini serial connector COM1: 2-wire RS232 via mini serial connector...

  • Page 5: Front Panel

    IPC2 has triple display interface with support for triple head. 2x HDMI with audio support 1x DisplayPort To connect IPC2 to a DVI display, use the provided HDMI to DVI-D adapter. Use a DVI cable to connect the adapter to the display. Audio There are 2 standard 3.5mm jacks on the back panel.

  • Page 6: Serial Port

    IPC2 features two 10/100/1000BaseT Ethernet ports using standard RJ45 connectors. Use a standard Ethernet cables to connect. The connectors feature built-in LEDs that are lit when a connection is detected. WLAN 2 WLAN antennas are supplied in models with integrated WiFi and should be screwed into the standard SMA connectors.

  • Page 7: Booting Linux

    Quick start guide Connecting IPC2  Turn off the display and connect it to the IPC2 HDMI connector (use the HDMI to DVI adapter if needed).  Connect the USB keyboard and mouse to USB 2 connectors.  Plug the Ethernet cable into the Ethernet connector.

  • Page 8: Maintenance

    Maintenance IPC2 requires no maintenance. You should not take the IPC2 apart other than opening the service door. Taking IPC2 apart will void its warranty. The following operations can be conducted by the user: Opening service door Unscrew marked Philips screw at the bottom to release service-door.

  • Page 9: Bios Setup Utility

    This warranty is void if the product has been altered or damaged by accident, misuse or abuse. Keep the original package for shipping in case of hardware failure. In case of HW failure of an IPC2 under warranty, please contact the seller of that IPC2. Please provide the following required information: ...
  • Page 10 -Increase the separation between the equipment and party responsible for compliance receiver. (CompuLab Ltd.) could void the user’s -Connect the equipment into an outlet on a circuit authority to operate the equipment. different from that to which the receiver is connected.
