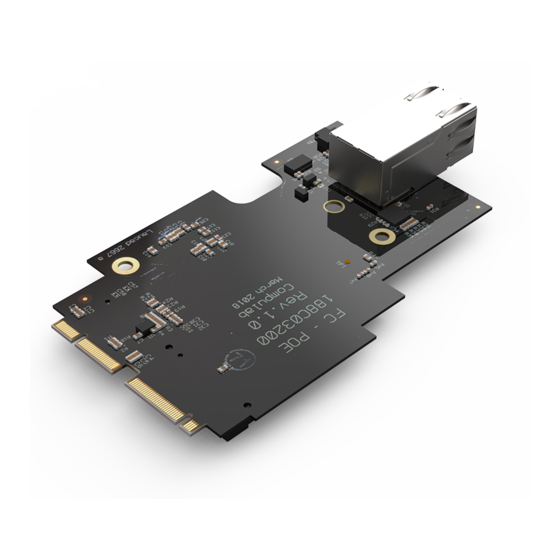

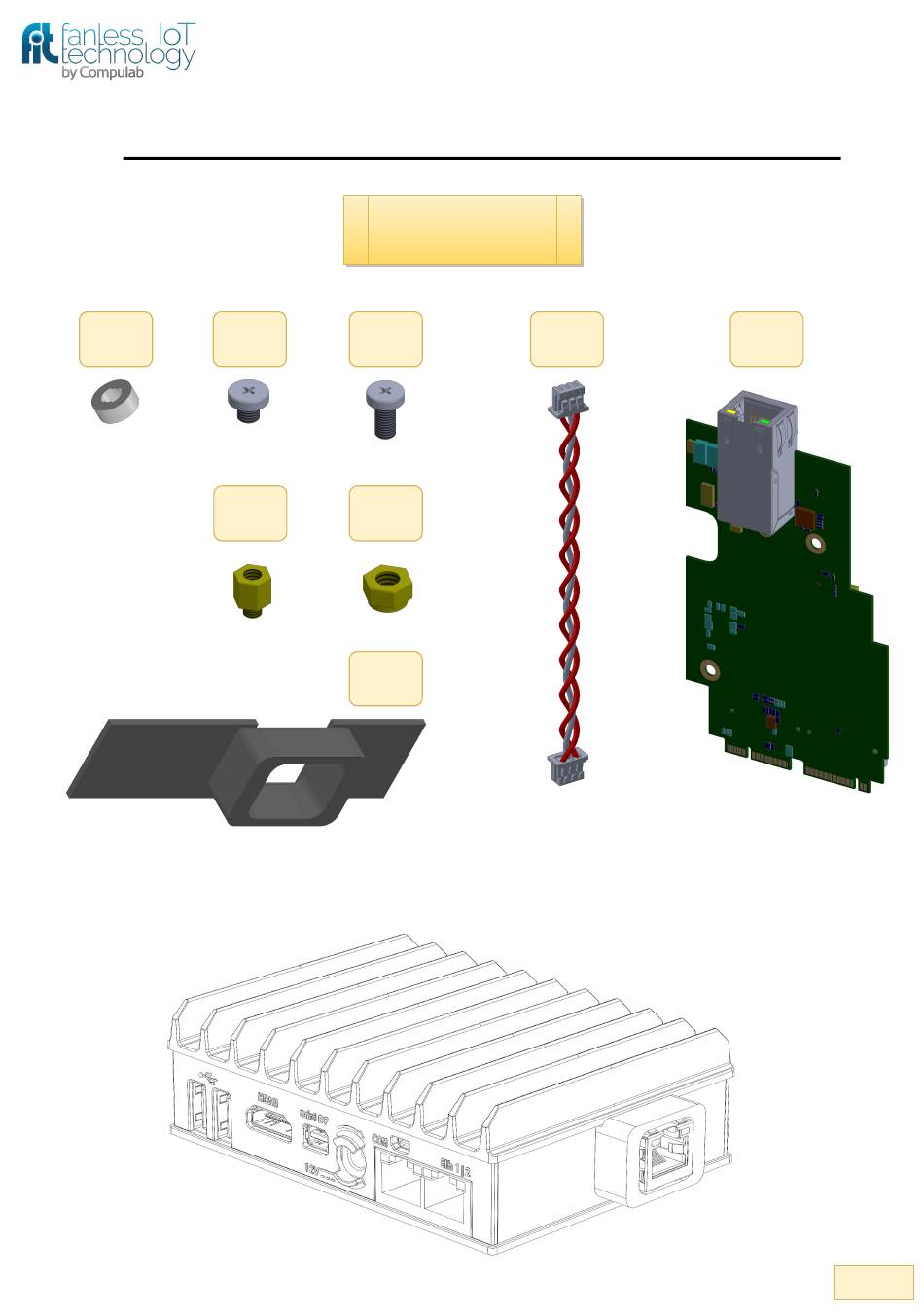

- Page 1 17-Apr-19 fitlet2 FC-POED installation instructions Package Content 1x 4x 3mm 1x 6mm 1x 3pin 1x FC- Retaining Phillips Phillips power POED washer screw screw cable 1x screw- Standoff 1x POE side panel Page 1...
- Page 2 Plug the IPX connectors to the Wifi module as follows: Long cable to port #1 Short cable to port #2 Fasten the WiFi module to the FACET with the Phillips screw Attention: Use the 3mm Phillips screw Connect the storage module to the M.2 SATA slot on the FACET Route the long SMA antenna cable beneath the storage...
- Page 3 Remove the bottom cover by unscrewing the 4x Phillips chassis screws and pull out the cooling plate gently after removing the 3x Phillips screws. Connect the short 3pin power cable between the FC-POED to the J11 Molex port on the fitlet2's Note: For easy assembly, connect while the FACET is not...
- Page 4 Assemble the RP-SMA antenna jack to the side panel Fasten the 2x 3mm Phillips screws at the standoff locations Apply the M.2 SSD Thermal pad on the storage device Stick the RTC battery in its place Assemble the POE side panel Note Before placing the bottom cover, make sure the U-shaped Boss is...
- Page 5 Screw the 4x Phillips enclosure screw half way, enough to hold the bottom cover in-place but not too tight Bring both side panels in place, and hold them Complete by tightening the Phillips enclosure screws all the way down, while holding the side panels Page 5...
