Summary of Contents for CompuLab fitlet

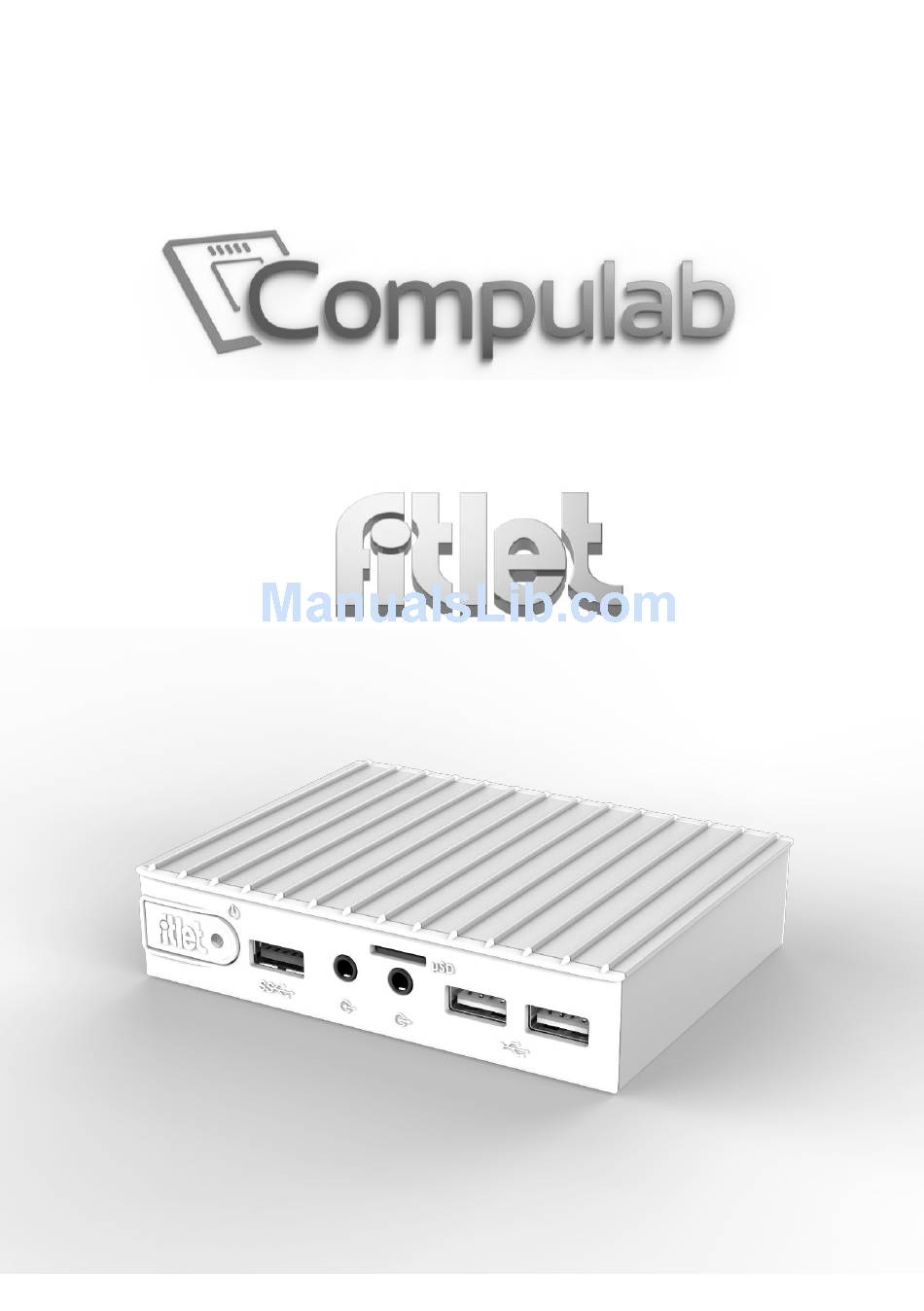

- Page 1 Owner’s Manual...
-
Page 2: Table Of Contents
Introduction ............. 3 Quick start guide ............6 Installation and service ..........7 BIOS ................. 9 Warranty and RMA ..........9 For more information and to obtain the latest revision of this document, please visit www.fit-pc.com fitlet owner’s manual www.fit-pc.com... -
Page 3: Introduction
1x SO-DIMM 204-pin DDR3 memory slot Up to 8GB (1x 8GB) DDR3-1333 Storage Supported 1x mSATA slot up to 6 Gbps (SATA 3.0) 1x eSATA (shared) up to 6 Gbps (SATA 3.0) (in fitlet-i) Graphics AMD Radeon R6/R3/R2 Dual display mode supported Display Interface 1 HDMI 1.4a up to 1920 x 1200 @ 60Hz... - Page 4 2x USB 3.0 3x USB 2.0 (4x USB 2.0 in fitlet-i variants) Serial 1x Serial communication port COM1: RS232 via ultra mini serial connector (in fitlet i/X) Micro-SD slot support SD/SDHC/SDXC cards Special I/O 1x micro SIM slot (in fitlet-i/X)
- Page 5 802.11ac WiFi modules with two antennas. All fitlet models features 2x USB 3.0 ports (5 Gbps) and 3x USB 2.0 ports. fitlet-i includes and additional USB 2.0 port for a total of 4 ports. All USB ports are USB-A and support up to 1A.
-
Page 6: Serial Port
Many fitlet models are sold “Barebone” – without RAM and storage. To install RAM and mSATA please consult “Installation and service” below. Connecting fitlet Turn off the display and connect it to the fitlet HDMI connector (use the HDMI to DVI adapter if needed). Connect the USB keyboard and mouse to USB 2.0 ports. -
Page 7: Installation And Service
Installation and service Maintenance fitlet has no moving parts and requires no maintenance. fitlet disassembly For your convenience fitlet disassembly video available at www.fit-pc.com/fitlet/open To access storage, SIM, miniPCIe and battery Open the bottom cover by unscrewing 4 philips-head screws. - Page 8 Start by removing bottom cover (see above). Slide out slightly the side panel Hold firmly the fitlet as depicted and push out the top cover with your thumbs. SODIMM which is located at the top side of the motherboard is now accessible for installation/replacement.
-
Page 9: Bios
This warranty is void if the product has been altered or damaged by accident, misuse or abuse. Keep the original package for shipping in case of hardware failure. In case of HW failure of a fitlet under warranty, please contact the seller of that fitlet. Please provide the following required information: ... - Page 10 -Increase the separation between the equipment and party responsible for compliance receiver. (Compulab Ltd.) could void the user’s -Connect the equipment into an outlet on a circuit authority to operate the equipment. different from that to which the receiver is connected.
