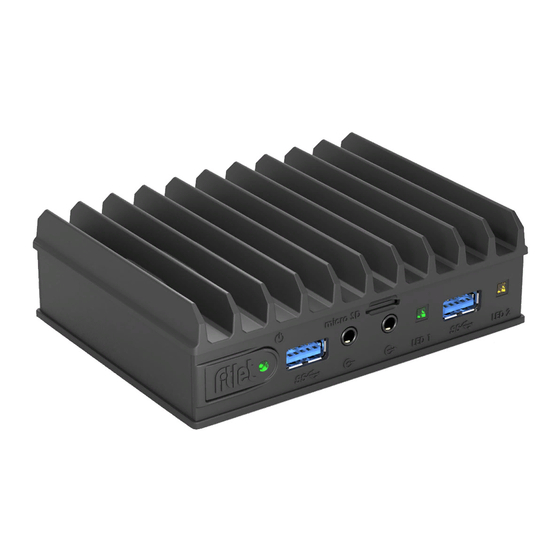

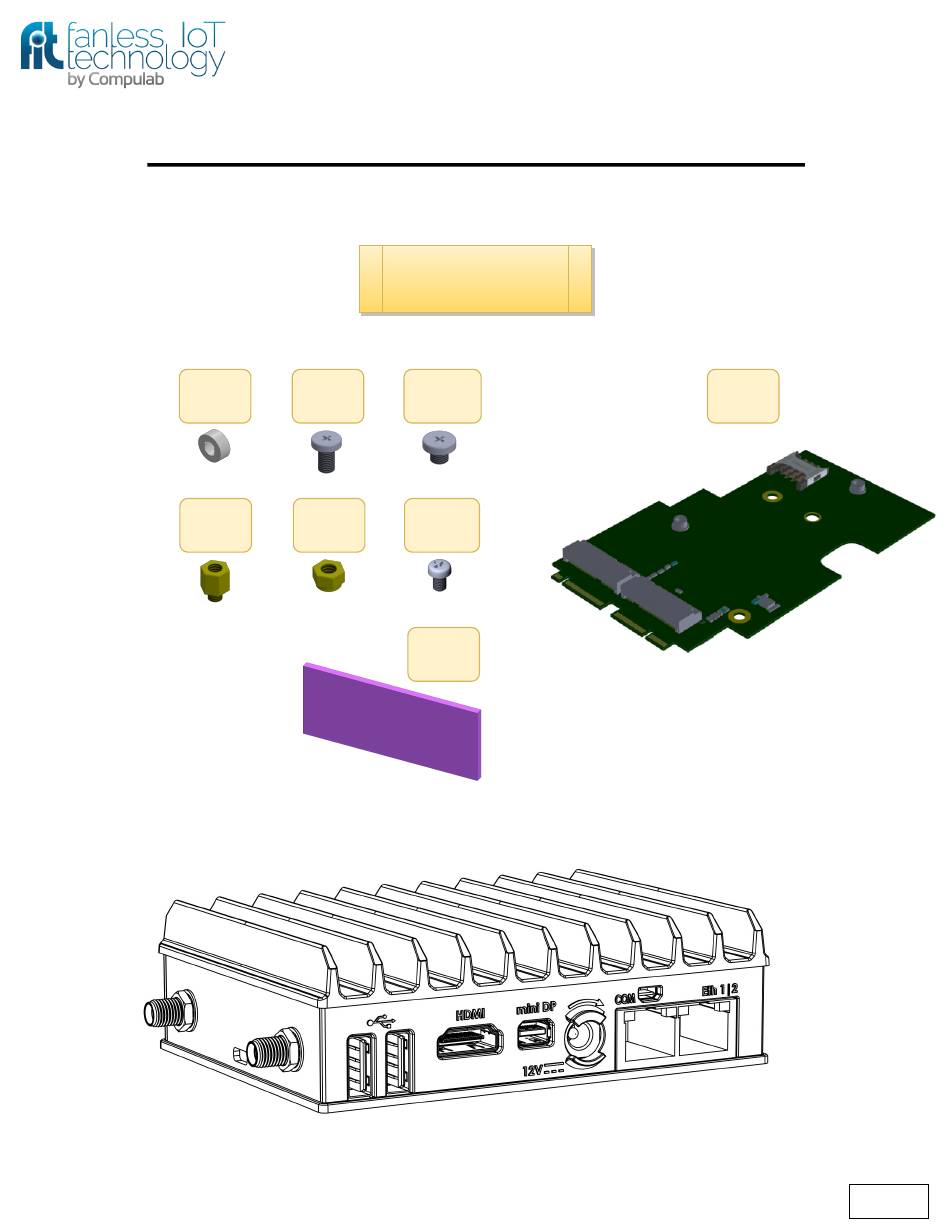

- Page 1 09-Jan-19 fitlet2 FC-PCI installation instructions Package Content 2x 1x 6mm 5x 3mm M3 retaining Phillips Phillips 1x FC-PCI Washer screw screw 2x 3mm 1x Screw M2 Phillips standoff screw Thermal Page 1...
- Page 2 Plug the IPX antenna connectors to the wifi module: Long cable to port #1 Short cable to port #2 Fasten the WiFi module to the FACET with the Phillips screw Note: Use the 3mm M3 Phillips screw Plug the M.2 storage module and screw the 6mm Phillips screw along with the module spacer and screw-nut which...
- Page 3 Seat the FACET into the M.2 sockets. Keep it in an angle as the next step explains the SMA antenna cable routing. Note: In case a cellular modem has been installed, the standoff adjacent to the USB connector may collide with the modem - Remove it Pay attention to the way the antenna cables are routed below...
- Page 4 Assemble the 2x 3mm Phillips screws at the stand off locations. If the standoff has been removed as per step 5, do not screw at the M.2 connector location. Apply the thermal pad on-top of the M.2 SSD Stick the RTC backup battery in its place Note Before placing the bottom cover,...
