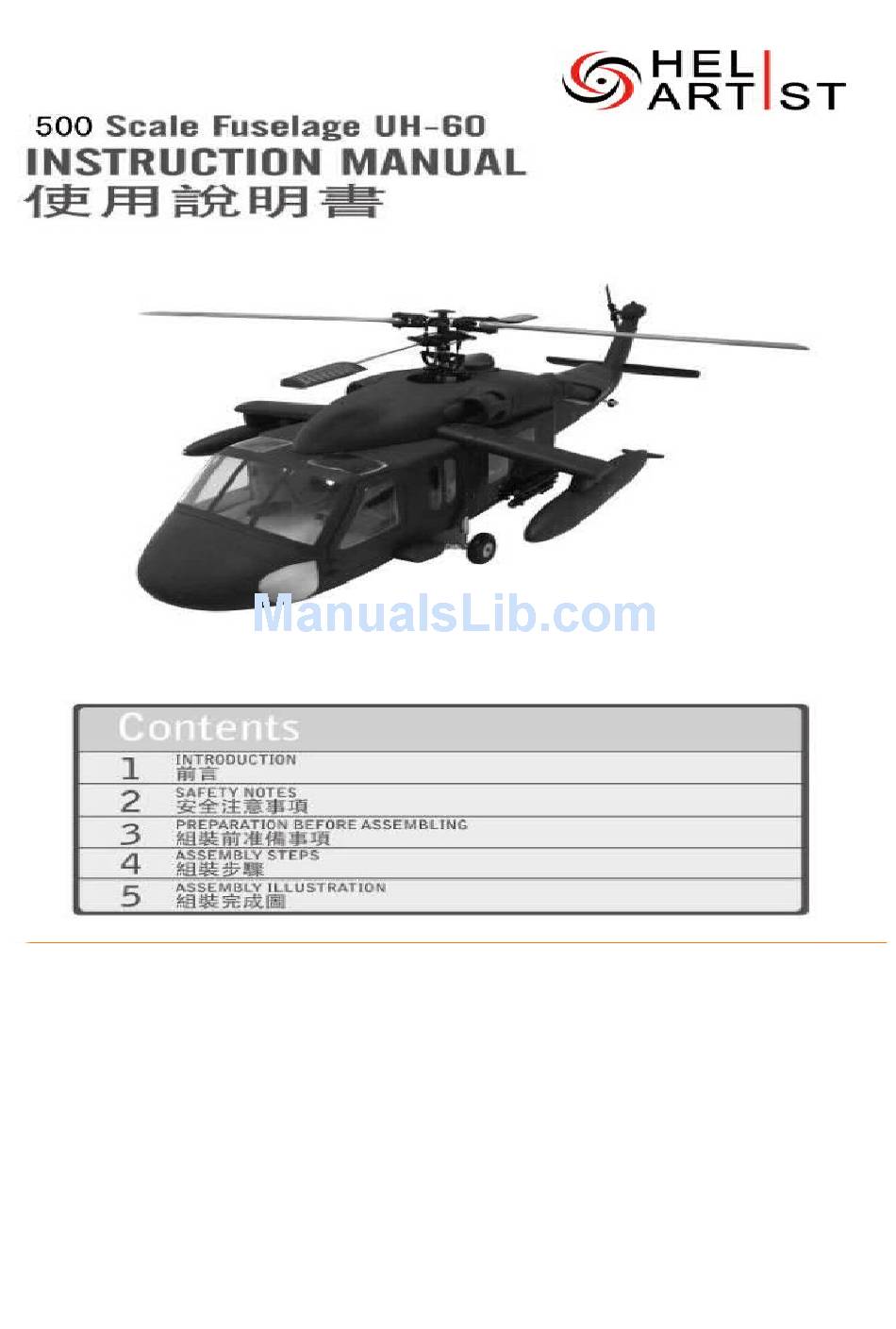

HeliArtist UH-60 Instruction Manual

500 scale fuselage
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the UH-60 and is the answer not in the manual?

Questions and answers

Related Manuals for HeliArtist UH-60

Summary of Contents for HeliArtist UH-60

  • Page 2: Important Notes

    Thank you for buying HeliArtist Products. 500 scale fuselage is designed as an easy way to assembly. Please read  this instruction manual carefully before assembling the model,and follow all precautions and recommendations  in the manual.Make sure to retain the manual for future reference,routine maintenance,and tuning.This scale  fuselage is designed for T­REX 500 Helicopter series.You can easily put it on your T­REX 500(torque tube version)  for new clothing. IMPORTANT NOTES    R/C helicopters are not toys.R/C helicopter utilize various high­tech products and technologies to provide  superior performance.Improper use of this product can result in serious injury or even death.Please read this  manual carefully before using and make sure to be conscious of your personal safety and the safety of others and  your environment when operating all HeliArtist products. Manufacturer and seller assume no liability for the operation or the use of this product.Intended usage of this  fuselage is only for adults with experience of flying remote control helicopters at legal flying field.After the sale  of this product we cannot maintain any control over its operation or usage. After assembling the scale fuselage,the weight will increase and the structure will become more complex,so we  do not recommmend to have any 3D fly as to avoid any accident and damage. R/C products require a certain degree of skill to operate,and is a consumables item.Any damage or  dissatisfaction as a result of accidents or modifications are not covered by any warranty and cannot be returned  for repair or experience problems during operation or maintenance.

  • Page 3: Before Assembling

    Fly only in safe areas,away from other people.Do not operate R/C aircraft within the vicinity of homes or crowds of  people.R/C aircraft are prone to accidents,failures,and crashes due to a variety of reasons including lack of  maintenance,pilot error,and radio interference.Pilots are responsible for their actions and damage or injury  happened during the operation or as a result of R/C aircraft models. 500 scale fuselge suitable for T-REX500 Helicopter series TOOL 1:Cutter knife. 2:Hexagon screw driver BEFORE ASSEMBLING 3:Phillips screw driver. 4:File. 5:Diagonal cutting pliers.6:Silicone 1:Check for all the parts in the list shown bellow. 7:CA glue. 8:AB(epoxy) glue 9:Fine sandpaper. 2:Some basic tools are needed for the assembly.
  • Page 4 T-shape Alu Parts on the tail using ￠ 2X8 Self-Tap Screw X4. Next, install the Tail Landing Gear onto the Prepare your Trex 500 helicopter, a Torque Tube version is T-shape Alu Parts using two M2X8 Screws. required to install into this UH-60 fuselage.
  • Page 5 Assemble the Main Frame, Scorpion Tail Gear Box, Transition Disassemble the upper tail part from the Scorpion Tail Torque Tube, Front Drive Gear, Copper Tail Gear and other System after the testing as to get ready to install the tail parts onto the Trex 500 heli. Adjust the linkage rods and heli mechanism into the fuselage body.
  • Page 6 Secure the Tail Cover back onto the fuselage. Install the Linkages onto the Linkage Ball of Tail Rotor Arm. Adjust the position of the Heli Mechanism on the fuselage and secure the heli mechanism to the fuselage using ￠ 2X8 Self-Tap Screws X4. Drill 2 holes on the Rocket Launcher and secure the Assemble the Small Rockets together using ￠...
  • Page 7 Drill 2 holes on the Rocket Launcher and secure the Glue the Rocket Launchers onto the Rocket Launcher Large Rocket using ￠ 2X12 Self-Tap Screws x4. Arm using epoxy. Glue ￠ 3mm Plastic Rod X2 onto the Horizontal Glue the Rocket Launcher Arms onto the Fuselage Tail Fin.
  • Page 8 Glue Outer Chimney onto the fuselage using epoxy. Insert the Innser Chimney into the Outer Chimney and secure it with epoxy. ￠ 1.7X6 Self- Secure the Front Window using four Glue the Upper window onto the canopy with epoxy Tap Screws, and gule the Side Windows and Under or CA glue.

  • Page 9: End Of Manual

    Install the Plastic Parts to the fuselage with epoxy or Install the Plastic Parts to the fuselage with epoxy CA glue. or CA glue. Glue the Decorative Wing on the front canopy using Glue the LED cover as to finish the assembly. epoxy.
