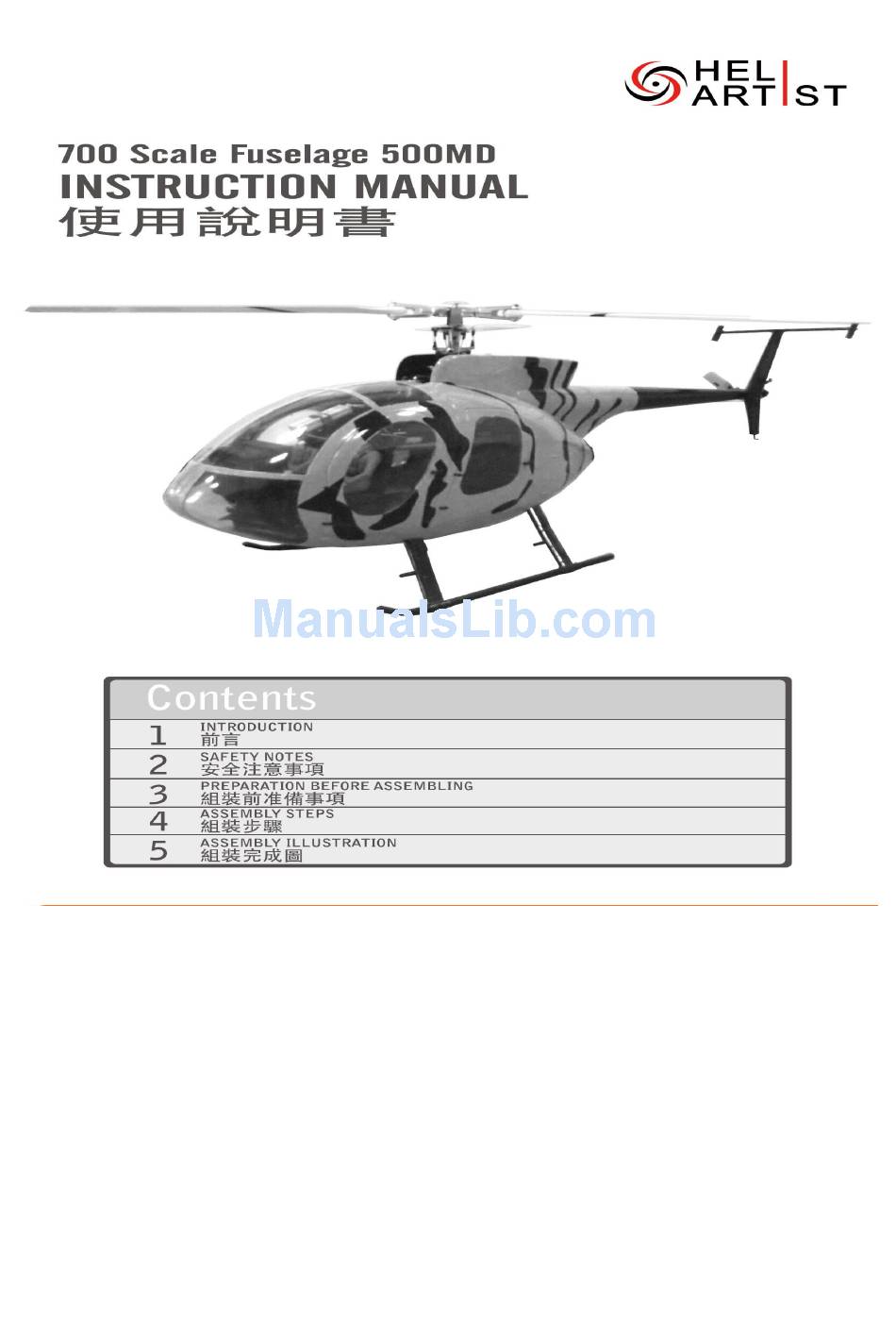

  • Page 2: Important Notes

    Thank you for buying HeliArtist Products.700 scale fuselage is designed as an easy way to assembly. Please read  this Instruction manual carefully before assembling the model,and follow all precautions and recommendations in  the manual.Make sure to retain the manual for future reference,routine maintenance,and tuning.This scale  fuselage is designed for T­REX 700E/Nitro Helicopter series.You can easily put it on your T­REX 700E/Nitro for  new clothing. IMPORTANT NOTES    R/C helicopters are not toys.R/C helicopter utilize various high­tech products and technologies to provide superior  performance.Improper use of this product can result in serious injury or even death.Please read this manual  carefully before using and make sure to be conscious of your personal safety and the safety of others and your  environment when operating all HeliArtist products. Manufacturer and seller assume no liability for the operation or the use of this product.Intended usage of this  fuselage is only for adults with experience of flying remote control helicopters at legal flying field.After the sale of  this product we cannot maintain any control over its operation or usage. After assembling the scale fuselage,the weight will increase and the structure will become more complex,so we do  not recommmend to have any 3D fly as to avoid any accident and damage. R/C products require a certain degree of skill to operate,and is a consumables item.Any damage or dissatisfaction  as a result of accidents or modifications are not covered by any warranty and cannot be returned for repair or  experience problems during operation or maintenance.
  • Page 3: Before Assembling

    Fly only in safe areas,away from other people.Do not operate R/C aircraft within the vicinity of homes or crowds of  people.R/C aircraft are prone to accidents,failures,and crashes due to a variety of reasons including lack of  maintenance,pilot error,and radio interference.Pilots are responsible for their actions and damage or injury  happened during the operation or as a result of R/C aircraft models. 700scale fuselge,suitable for T-REX700 E/Nitro Helicopter series TOOL 1:Cutter knife. 2:Hexagon screw driver 3:Phillips screw driver. 4:File. BEFORE ASSEMBLING 5:Diagonal cutting pliers.6:Silicone 7:CA glue. 8:AB(epoxy) glue 9:Fine sandpaper. 1:Check for all parts in the part list shown at bellow. 10:Scissors.
  • Page 4 Insert the Tail Part into the Main Scale Body and Insert the Plastic Landing Gear into the landing gear use epoxy to fix them together. position on the Main Scale Body. Use M3x12 Self-Tapping Screws to secure the Insert the Aluminum Skids into the Landing Gears Landing Gears to the main wood board of the according to the above photo.
  • Page 5 Glue the wood and plastic pieces together Use M3x50 screws with M3x8 washers to assemble according to the above photo.(Remarks: the hight the wood blocks onto the heli's landing gear of the wood block is depend on what heli you use.) position.
  • Page 6 Align the wood blocks together with the heli assembly to the fuselage bottom wood board. Then Glue a LED cover on the top position of the Main use M3x12 Self-Tapping Screws to secure the wood Scale Body according to the photo shown above. blocks onto the fuselage's body.
  • Page 7: End Of Manual

    Assemble the Horizontal and Vertical stabilizer set to Use two M3x12 Hex Cap Screws with M3x10 washers the tail gear box of the heli by M3x35 Hex Cap to secure the front canopy of the fuselage to the Screws with M3x10 washers. Main Scale Body.
