Page 2: Important Notes

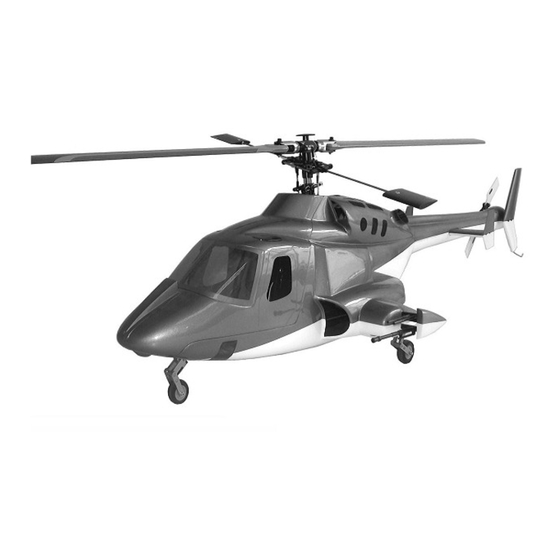

Thank you for buying HeliArtist Products.450 scale fuselage is designed as an easy way to assembly. Please read this instruction manual carefully before assembling the model,and follow all precautions and recommendations in the manual. Make sure to retain the manual for future reference,routine maintenance,and tuning.This scale fuselage is designed for T-REX450... -
Page 3: Before Assembling
450scale fuselage,suitable for T-REX450 Nitro Helicopter series BEFORE ASSEMBLING TOOL 1:Cutter knife. 2:Hexagon 1:Check for all the parts in the list come with the manual. screw driver 2:Some basic tools are needed to help the assembly. 3:Phillips screw driver. 4:File. 5:Diagonal cutting pliers. - Page 4 Insert the Linkage Rods with Ball Link. Tighten the Ball Links with Linkage Ball to the Wheel Control Arm, caution the assembly direction.(Use M3x10mm Screws x4) Twist the Ball Links from Step 1. onto the Assemble the Front CNC Retract System using Linkage Rods.
- Page 5 Use M3x10mm screws x4 with M3 Nuts to Insert the 4x55mm Carbon Rods into the specific position of the Gun Housing and secure tighten the Front Retract System onto the it with glue. (This is used to prevent further fuselage body. retraction of the Retract System.) Tighten the Lock Rings on the two end of the Tighten the Back Retract Systems onto the...
- Page 6 Align and glue the Wood Blocks to the landing Disassemble the Tail Cover from the tail of the fuselage. gear position on the Heli Body. Disassemble the tail gear box of the Heli Put the Sponge in the tail. mechanism then insert the Heli Body into the fuselage.
- Page 7 Assemble the Vertical stabilizer to the Align the Heli Body to the fuselage and drill fuselage's tail using two 3x20mm Self-Tapping four 3mm holes on the bottom side. Use Screws. M3x25mm screws and washers to secure the Heli Body to the fuselage. Fit the Horizontal stabilizers onto the trough Use four 2x5mm Self-Tapping screws to secure on the Tail Boom of the fuselage and use...
- Page 8 Cut the Front Window Cover as to fit the front Glue the Gun Cover Plates onto the Machine window on the Front Canopy. Then glue the Guns. cut covers onto this window positions. (Remarks: glue all window covers on the inner side of the window.)
