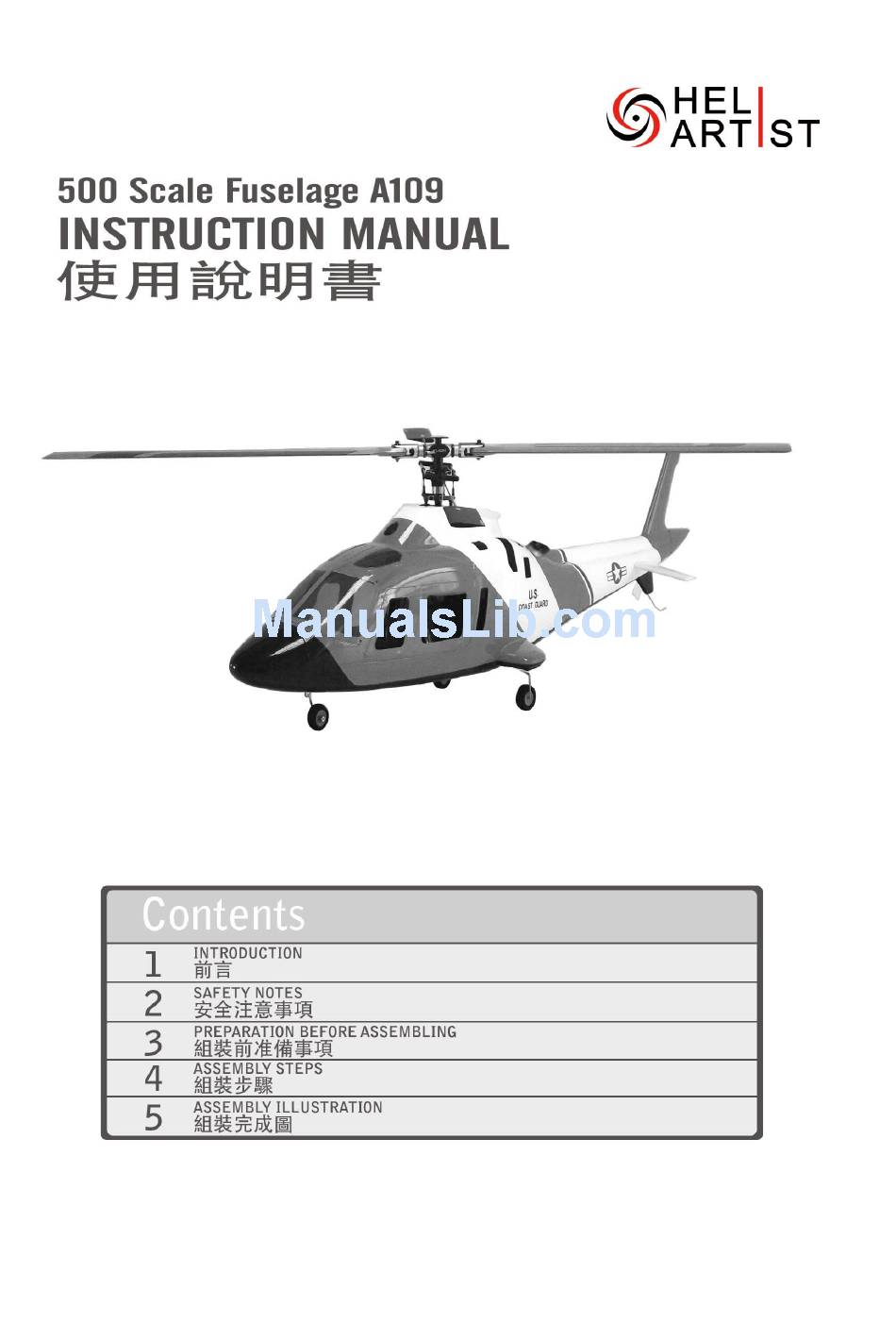

HeliArtist 500 Scale Fuselage A109 Instruction Manual

Advertisement

Quick Links

1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 500 Scale Fuselage A109 and is the answer not in the manual?

Questions and answers

Summary of Contents for HeliArtist 500 Scale Fuselage A109

  • Page 2: Important Notes

    Thank you for buying HeliArtist Products.500 scale fuselage is designed as an easy way to assembly. Please read this instruction manual carefully before assembling the model,and follow all precautions and recommendations in the manual.Make sure to retain the manual for future reference,routine maintenance,and tuning.This scale fuselage is designed for T-REX 500...
  • Page 3: Before Assembling

    TOOL 500 scale fuselages are suitable for T-REX500 Helicopter series. 1:Cutter knife. 2:Hexagon screw driver 3:Phillips screw driver. 4:File. BEFORE ASSEMBLING 5:Diagonal cutting pliers.6:Silicone 7:CA glue. 8:AB(epoxy) glue 9:Fine 1:Check for all parts in the part list shown at bellow. sandpaper.
  • Page 4 Install two Retract systems to the back landing hole on Install the other Retract system to the front landing the fuselage using 8x Self-Lock Screw 2x8mm. (Drill 8 gear hole on the fuselage using 4x Self-Lock Screw 1.5mm holes before securing the Retract system.) 2x8mm.
  • Page 5 Glue the Servo Mount Frame to the fuselage to Take off the Tail Cover from the fuselage. install the servo. Install the Screw-Lock Pushrod Connector to the servo horn and insert the Linkage into it. Take off the tail assembly from the heli mechanism. Glue the wood pieces together according to the above photo.(Remarks: the height of the wood block is depend on what heli you use.)
  • Page 6 Assembly the Tail assembly back to the heli Assembly the Tail Cover back to the fuselage. mechanism. Align the Landing Gear Holes of the heli mechanism Cut the Upper Window Covers and glue it to the to the fuselage and drill four 2mm holes on the fuselage.
  • Page 7 Secure the Horizontal Fins to the fuselage use epoxy.
  • Page 8 End of Manual...
