The computer has one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and two
PCI expansion slots. The expansion slots accommodate full-height or half-height expansion cards.

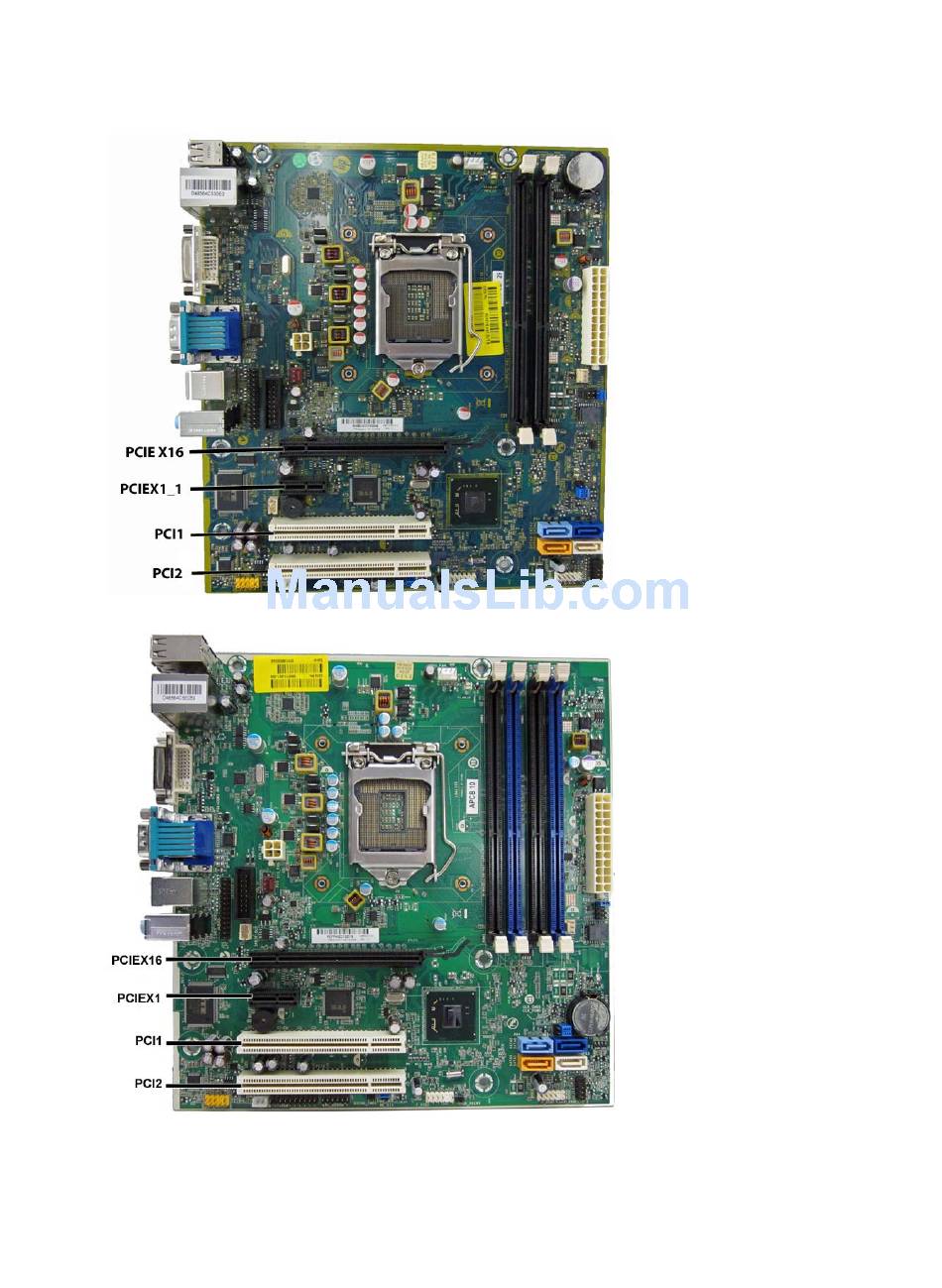

Figure 7-10
Figure 7-11
60
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Expansion Slot Locations – HP Pro 3330/3380
Expansion Slot Locations — HP Pro 3340/3348
