HP Pro 3330 Illustrated Parts & Service Map

Illustrated Parts & Service Map
HP Pro 3330/3380 Microtower Business PC
© 2011 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for tech-
nical or editorial errors or omissions contained herein.
Document Number 670583-001.
Key Specifications
Processor Type Intel® Core i7, i5, i3, Pentium, Celeron
RAM Type PC3-10600 DDR3 (1066/1333 MHz), non-ECC
Maximum RAM 8 GB
Expansion Slots •
•
•
Chipset •
Graphics Adapter •
Bays •
•
I/O Interfaces Front: (2) USB 2.0, headphone
Rear: (4) USB 2.0, DVI-D, VGA, HDMI, PS/2 keyboard and
mouse, audio in, audio out, RJ-45, serial
Preinstalled Operating •
Systems
•
•

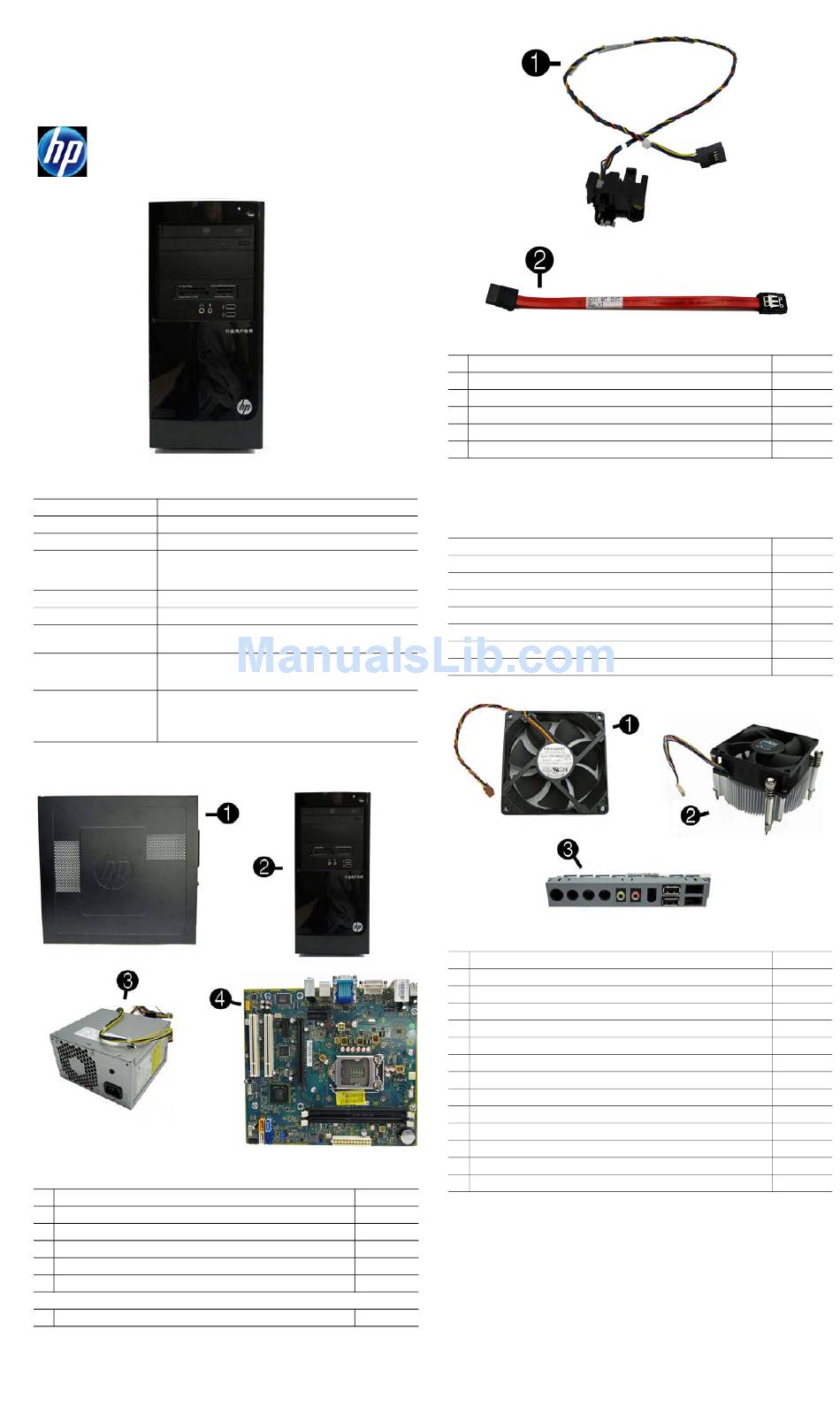

Spare Parts

System Unit
1 Access panel
2 Front bezel for use in the People's Republic of China
* Front bezel
3 Power supply, 300W
* Power supply, 300W, 85% efficient
* Power supply, 250W, non-PFC
System boards with thermal grease, alcohol pad, and CPU socket cover
4 System board for use in 3330 models
* Not shown
HP Pro 3330/3380, MT
1st Edition September 2011.
(1) PCIe-x16
(1) PCIe-x1
(2) PCI
Intel H61
Integrated Intel HD Graphics
(2) external 5.25-inch
(2) internal 3.5-inch
Windows® 7 (Professional 32/64, Ultimate 64, Home Pre-
mium 64, Home Basic 64)
FreeDos
RedFlag Linux
Cables
1 Power switch/LED assembly
2 SATA cable, 165 mm
* SATA cable, 370 mm
* Adapter, DVI to VGA, HF
* DMS-59 to Dual VGA cable
* PATA to SATA power adapter
*Not shown
Mass Storage Devices (not illustrated)
16X SATA DVD±RW drive
DVD-ROM drive
Blu-ray BD-RW SuperMulti DL Drive
Bezel, optical drive
1 TB, 7200 rpm hard drive, 6G
750 GB, 7200 rpm hard drive, 6G
500 GB, 7200 rpm hard drive, 6G
250 GB, 7200 rpm hard drive, 6G
Miscellaneous Parts
1 Chassis fan
2 Fan sink for use in models with Intel processors
3 Front USB and I/O assembly
* Speaker with rubber rivets
* Card reader, 15-in-1
* Card reader, bezel blank
* Card reader, bezel
* Mouse, PS2, optical, black
* Mouse, USB, laser, black
* Mouse, USB, optical, black
* Rubber feet
* Serial port kit
* Printer port kit
* USB powered speakers
657104-001
*Not shown
670439-AA1
668571-001
656721-001
575437-001
453035-001
663099-001
670583-001
657105-001
657102-001
656833-001
657401-001
463023-001
449283-001
581600-001
581599-001
617030-001
657852-001
636930-001
639363-001
636929-001
636927-001
657103-001
667727-001
668572-001
666885-001
657099-001
657853-001
657854-001
537748-001
570580-001
537749-001
530593-001
638815-001
638817-001
636917-001
