5.

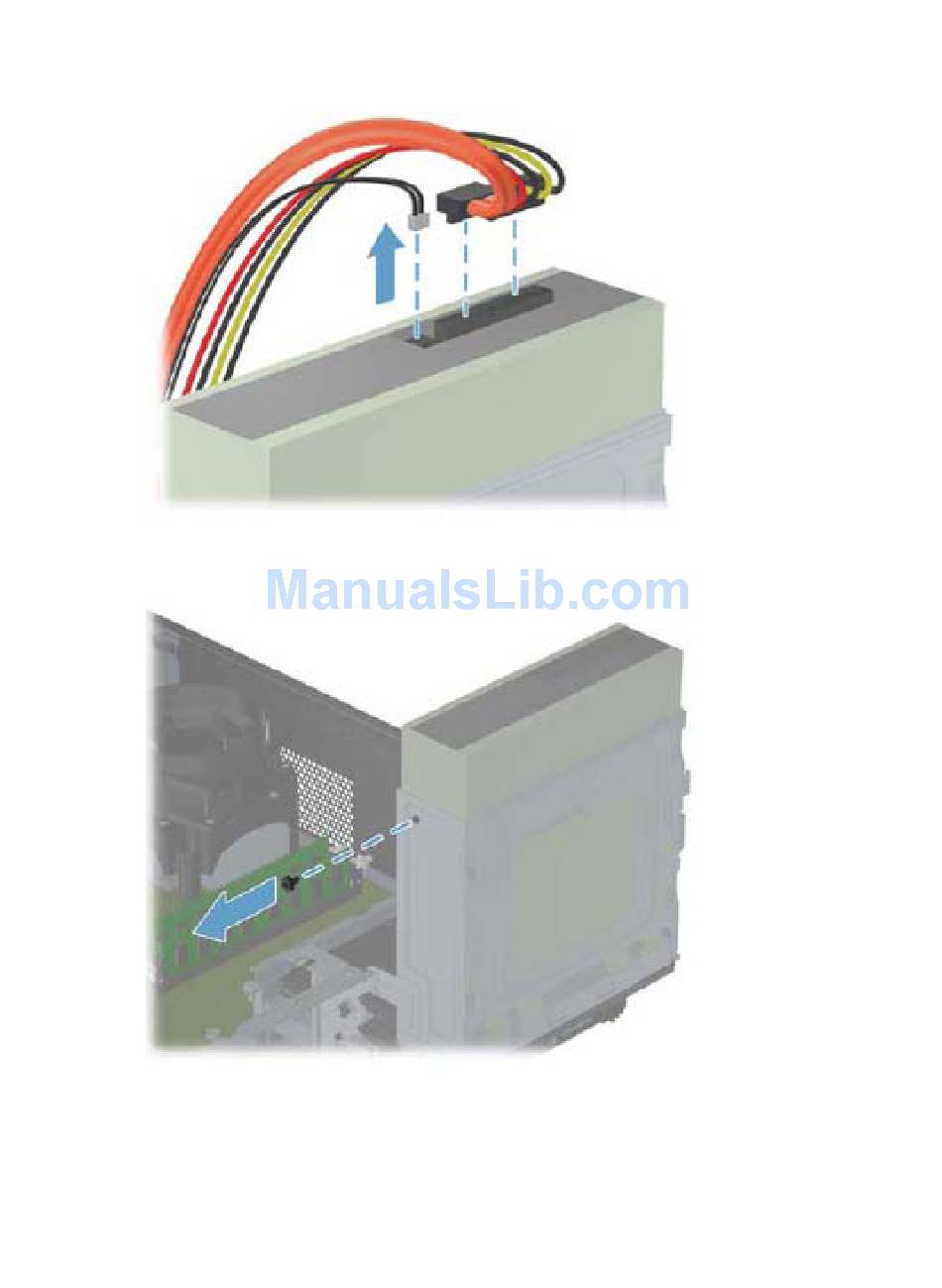

If removing an optical drive, disconnect the cables from the rear of the drive.
Figure 8-15
6.
Remove the Torx screw from the cage.
Figure 8-16
7.
Return the drive to its normal position.
118 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
Removing the drive cables
Removing the optical drive screw
