5.

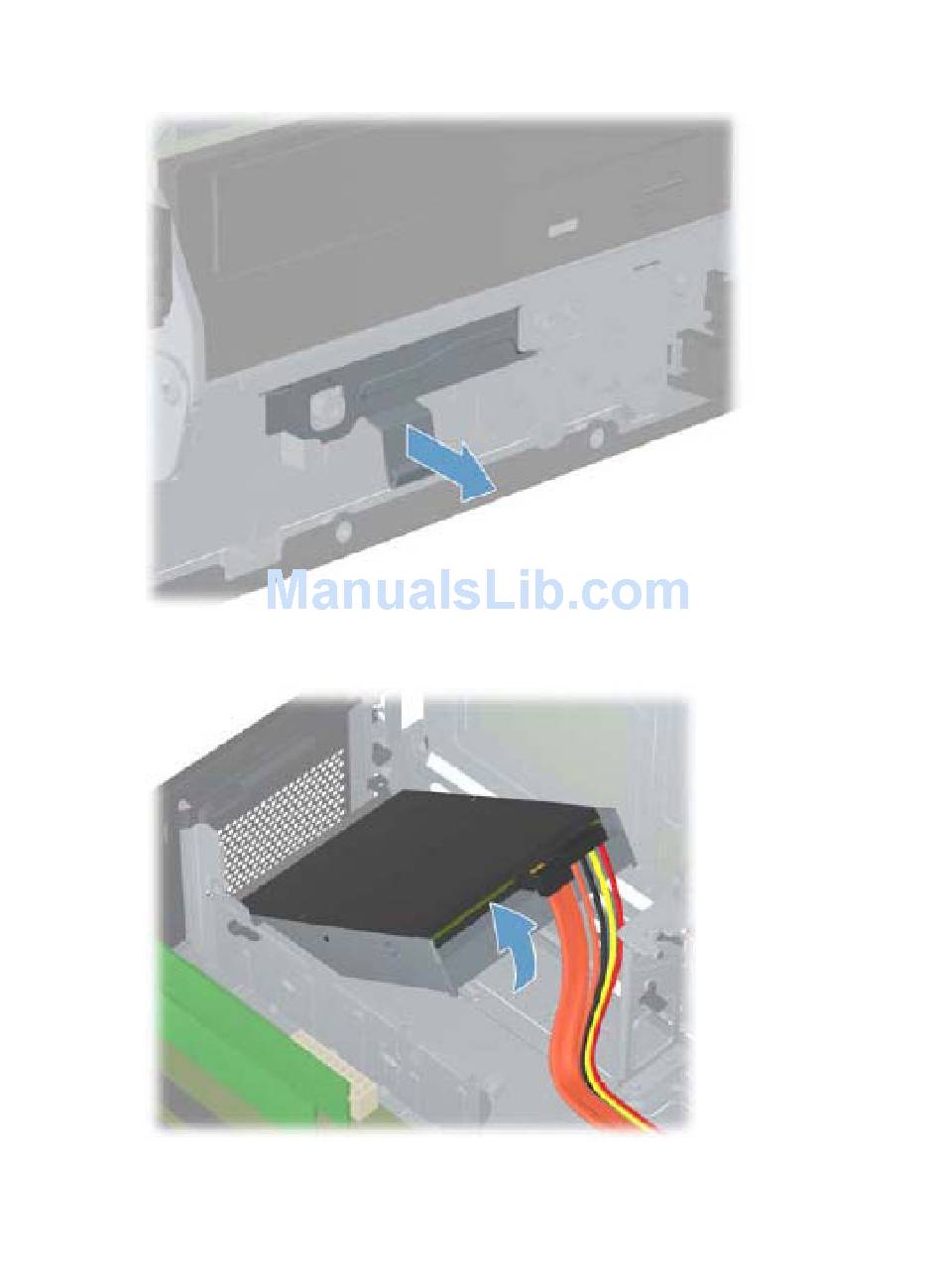

On the front of the computer, pull and hold the hard drive release latch to unlock the hard drive.
Figure 8-18
6.
With the release latch pulled out, lift the rear of the hard drive.
Figure 8-19
120 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
Pulling the hard drive release latch
Lifting the hard drive
