T1 or E1 Uplink
Models that support T1 or E1 have eight ports that can be used in any combination
to provide PPP or MLPPP uplinks.
Procedure
To use T1 or E1 uplinks:
2600-A2-GN20-50
1. Use the CLI or web interface to configure PPP or MLPPP paths.
2. Connect an 8-position modular cable to one of the eight T1 or E1 ports on the
faceplate of the DSLAM. Connect the other end of the cable to the uplink
interface.
3. Connect up to seven other T1 or E1 cables as in

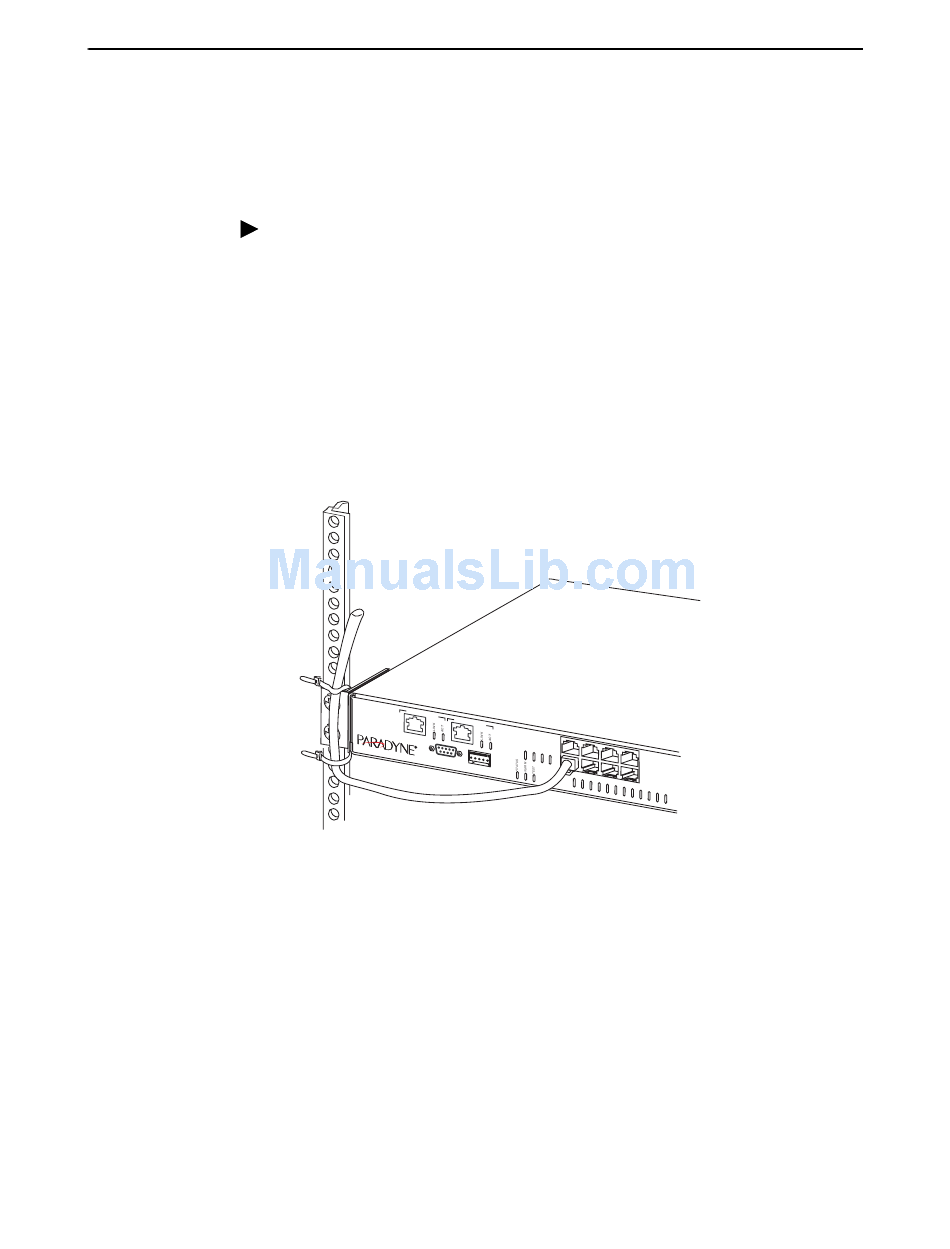

4. Fix the cable or cables to the rail as required for strain relief.
PO RT
1- 10 /1
00 BT
CO NS
O LE
CAUTION:
It is possible to create bridging loops by connecting cables improperly relative
to the configuration defined on the SCP card.
April 2005
PO RT
2- 10 /1
00 BT
UP LI NK
PO RT
S
1
3
5
7
2
4
6
8
AL AR M
1
3
5
7
2
9
4
11
13
6
8
15
10
12
14
16
2. Cabling
Step
2.
17
19
21
23
18
20
22
24
05-17628
2-5
