2. Cabling

Connecting to Power

The BitStorm 2600 can be powered by any AC power source supplying
90–265 VAC at 47–63 Hz.
Procedure
To connect the BitStorm 2600 to a power source:
2-12

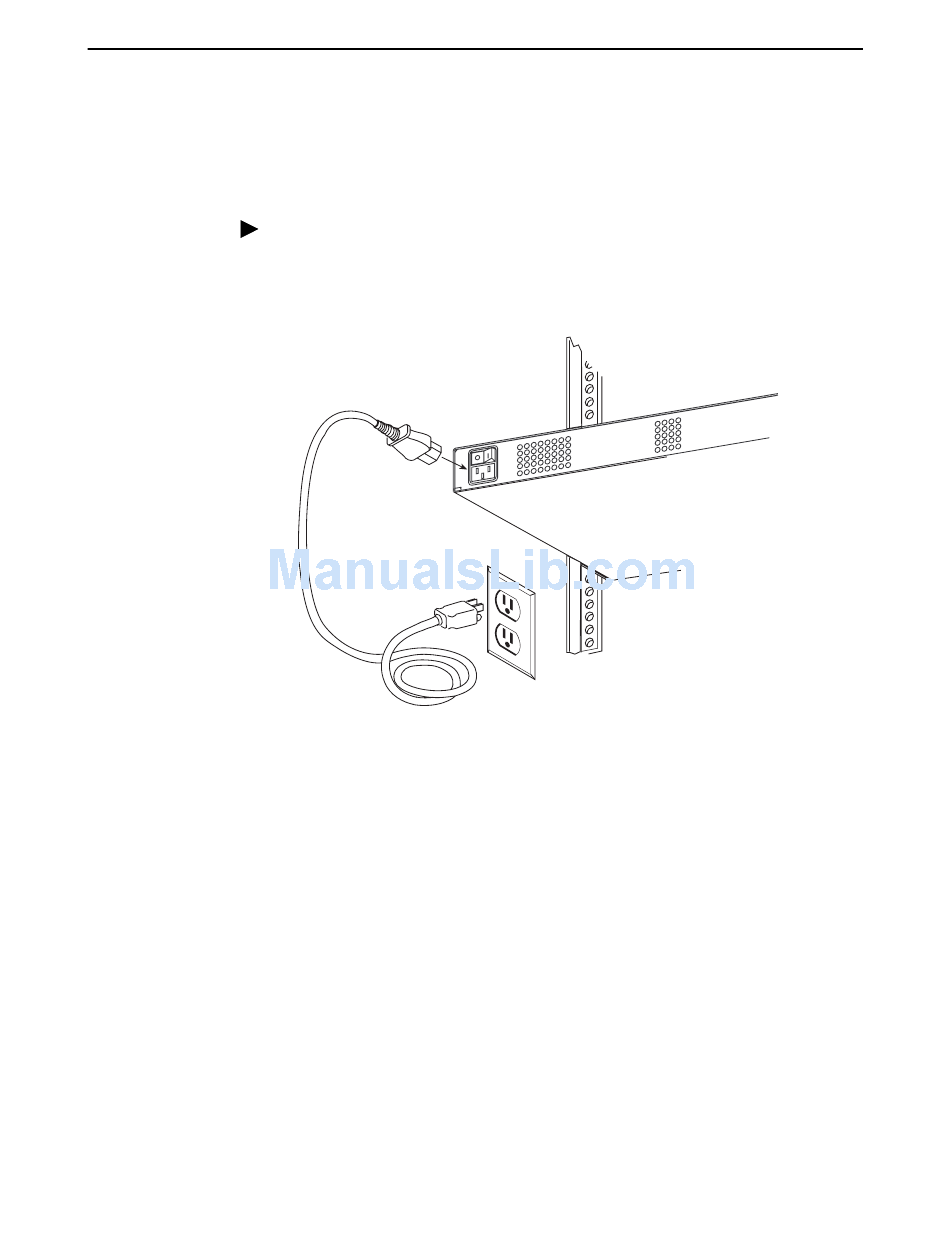

1. Insert the supplied power cord into the power socket on the back of the unit.
2. If the BitStorm 2600 is in a rack, dress the power cord to the left and fasten it
to the rail with a cable tie.
3. Connect the other end of the power cord to a grounded AC power source.
4. Make sure the STATUS LED on the front panel is ON (green). See
LEDs.
