2. Cabling

Alarm Interface

The ALARM interface consists of five contacts. Three of the contacts provide
access to alarm relays that that can be used to set off Major and Minor physical
alarms. The other two contacts provide access to a sense circuit that can be used
to detect the open or closed condition of an external alarm relay.
A 5-position plug provided in the hardware kit is used to connect 20–28 AWG wire
to the ALARM terminal block (see
with the BitStorm 2600,
The contacts are closed during normal operation. They open in response to loss of
power, hardware failure, or other alarm conditions. See
Appendix A, Connectors and Pin Assignments
Procedure
To connect the ALARM interface:
2-10
in Chapter 1, Installation).
CAUTION:
The ALARM Sense + and Sense – contacts are intended to be connected
to an external alarm relay. Do not apply power to these contacts; doing so
will result in damage to the unit.
1. Strip the tips of the alarm source wires about 1/2 inch (13 mm).

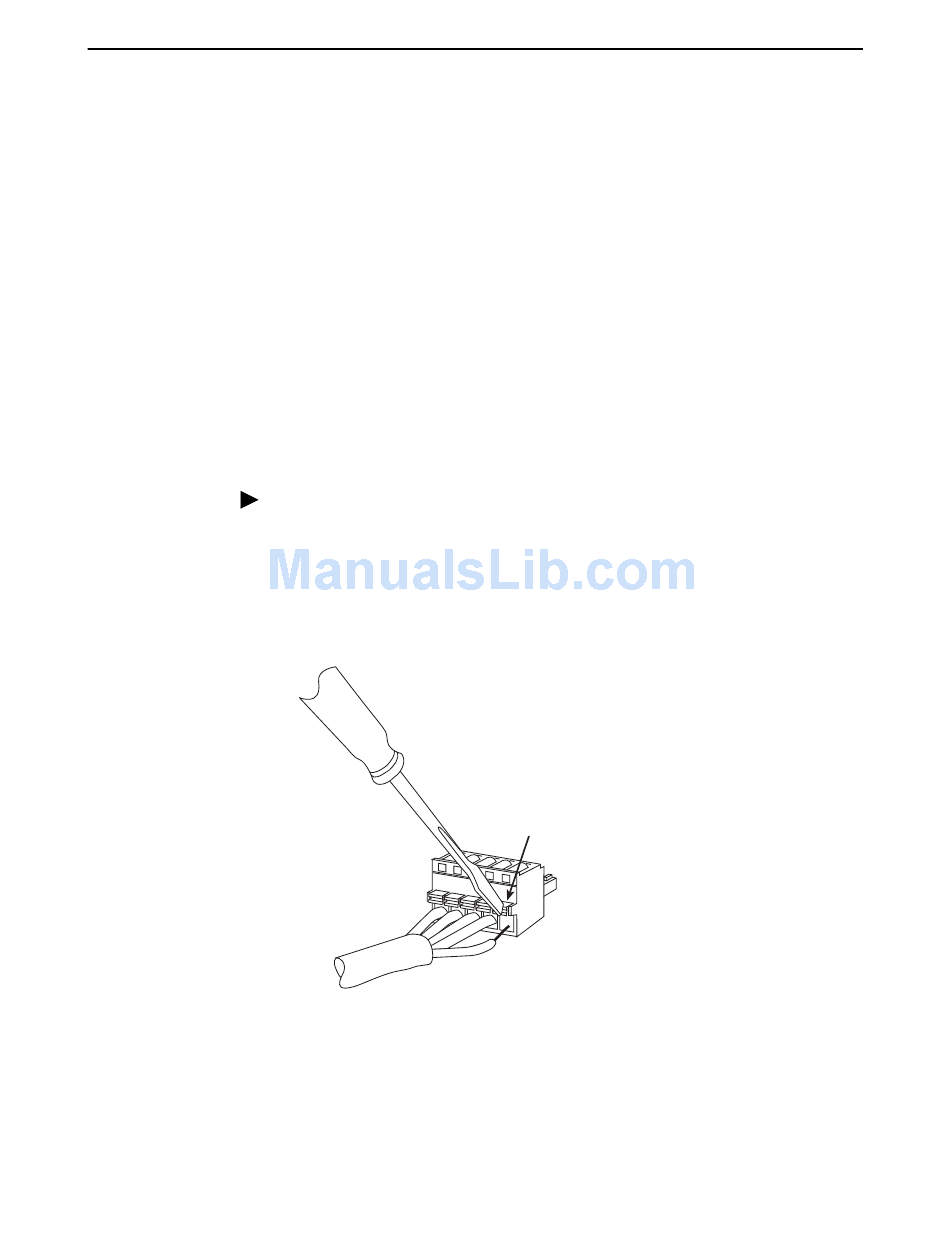

2. Use a screwdriver to press the orange spring tab in while inserting the wire
into the hole below it. The insulation should be fully within the plug and no
bare wire should be exposed outside of the plug.
3. Insert the plug into the ALARM interface on the front panel of the
BitStorm 2600.
4. If the BitStorm 2600 is in a rack, dress the cable to the left and secure it to the
rail with a cable tie.
5. Connect the other end of the cable to your alarm monitoring system.
April 2005
Table 1-2, Contents of Hardware Kit Shipped
ALARM Connector
for more information.
Spring
Tab
02-17328
in
2600-A2-GN20-50
