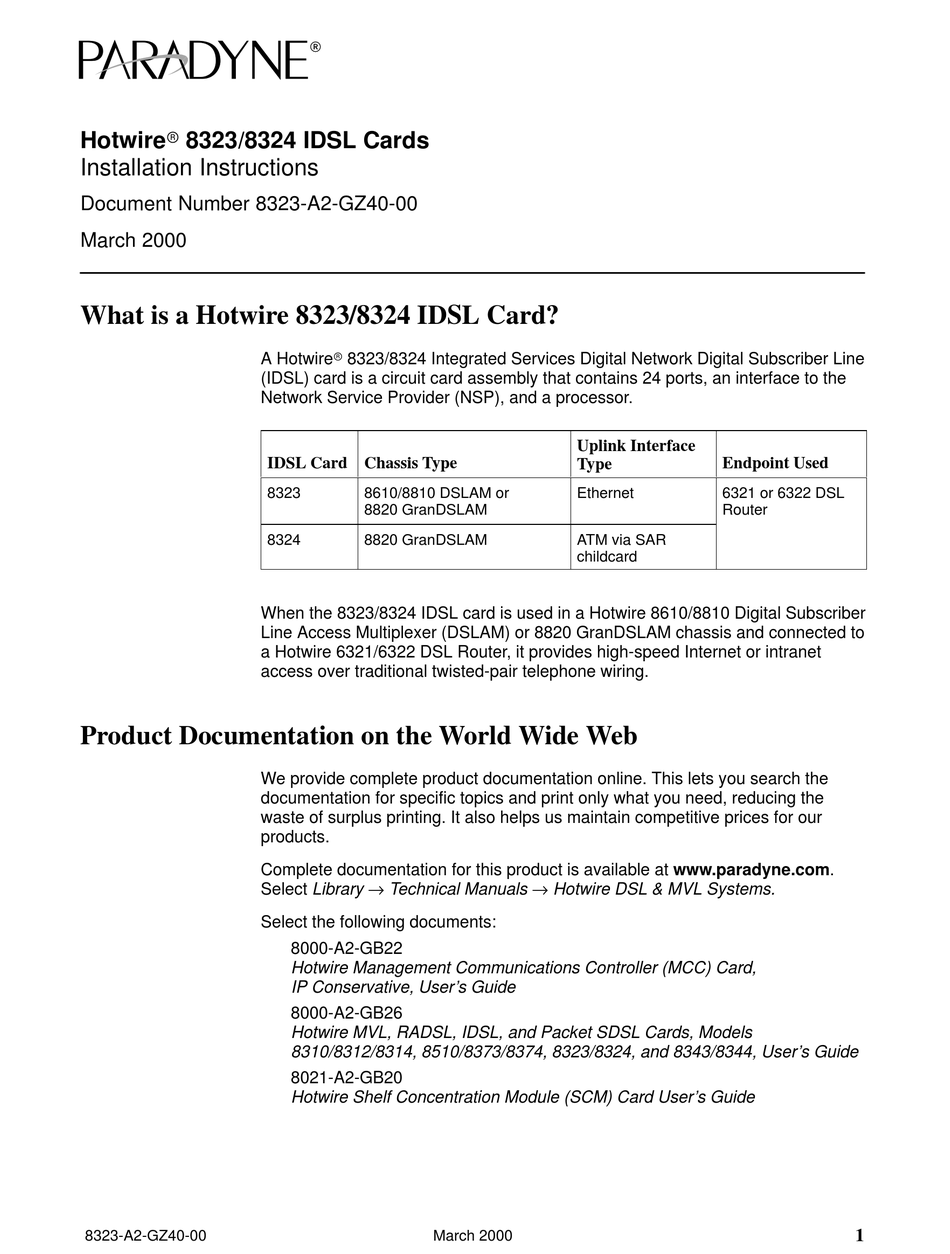

Hotwirer 8323/8324 IDSL Cards
Installation Instructions
Document Number 8323-A2-GZ40-00
March 2000
What is a Hotwire 8323/8324 IDSL Card?
Product Documentation on the World Wide Web
8323-A2-GZ40-00
A Hotwirer 8323/8324 Integrated Services Digital Network Digital Subscriber Line
(IDSL) card is a circuit card assembly that contains 24 ports, an interface to the
Network Service Provider (NSP), and a processor.
IDSL Card Chassis Type
8323
8610/8810 DSLAM or
8820 GranDSLAM
8324
8820 GranDSLAM
When the 8323/8324 IDSL card is used in a Hotwire 8610/8810 Digital Subscriber
Line Access Multiplexer (DSLAM) or 8820 GranDSLAM chassis and connected to
a Hotwire 6321/6322 DSL Router, it provides high-speed Internet or intranet
access over traditional twisted-pair telephone wiring.
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the
waste of surplus printing. It also helps us maintain competitive prices for our
products.
Complete documentation for this product is available at www.paradyne.com.
Select Library
Technical Manuals
Select the following documents:
8000-A2-GB22
Hotwire Management Communications Controller (MCC) Card,
IP Conservative, User's Guide
8000-A2-GB26
Hotwire MVL, RADSL, IDSL, and Packet SDSL Cards, Models
8310/8312/8314, 8510/8373/8374, 8323/8324, and 8343/8344, User's Guide
8021-A2-GB20
Hotwire Shelf Concentration Module (SCM) Card User's Guide
March 2000
Uplink Interface
Endpoint Used
Type
Ethernet
6321 or 6322 DSL
Router
ATM via SAR
childcard
Hotwire DSL & MVL Systems.
1
Advertisement
Related Manuals for Paradyne Hotwire 8323
Summary of Contents for Paradyne Hotwire 8323
- Page 1 IDSL Card Chassis Type 8323 8324 When the 8323/8324 IDSL card is used in a Hotwire 8610/8810 Digital Subscriber Line Access Multiplexer (DSLAM) or 8820 GranDSLAM chassis and connected to a Hotwire 6321/6322 DSL Router, it provides high-speed Internet or intranet access over traditional twisted-pair telephone wiring.
- Page 2 Refer to one of the above installation documents to: — Install and set up the Hotwire DSLAM or GranDSLAM — Install the Hotwire 8323/8324 IDSL Card — Connect cables After the IDSL card is installed, there are configuration procedures that must be performed before you can begin to use the IDSL cards for Internet or intranet connectivity.
- Page 3 1. If there is a filler plate covering the slot, remove it. 2. Insert the card into the card guides of the slot on the chassis. For the 8323 IDSL card in an 8610 DSLAM, ensure that the components are facing up.
- Page 4 8323 IDSL card failure. System processing functions have stopped. No power to card. Alrm Yellow, On Alarm is present on the 8323 IDSL card. Ethernet (ETH1) interface is not being detected. Normal operation, no alarms. Test Yellow, On Test in progress.
- Page 5 13-24 1-12 ALT BANK IDSL 10/100BT 8324 00-16693 8323-A2-GZ40-00 LED is . . . Indicating . . . Green, Card functioning normally. Winking describes a Winking recurring pulse when the LED is ON longer than OFF at a ratio of approximately 10:1.
-
Page 6: Warranty, Sales, Service, And Training Information
Hotwire is a registered trademark of Paradyne Corporation. MVL is a trademark of Paradyne Corporation. All other products and services mentioned herein are the trademarks, service marks, registered trademarks, or registered service marks of their respective owners. *8323-A2-GZ40-00* Copyright E 2000 Paradyne Corporation. Printed in U.S.A. *8323–A2–GZ40–00* March 2000...
