ANTI-TIP BRACKETS
WARNING
Unit may tip forward if loaded racks/shelves are all pulled out at the same time. To prevent tipping and provide
a stable installation, the unit must be secured in place with the anti-tip brackets provided with the unit. A set of
metal anti-tip brackets are supplied with the unit. The anti-tip brackets, when properly installed should secure the
rear legs and prevent the unit from tipping forward.
Some installation sites may require modi cation to provide a secure surface for attaching the brackets. Refer to
Figure 4, 5 and 6 for mounting bracket locations

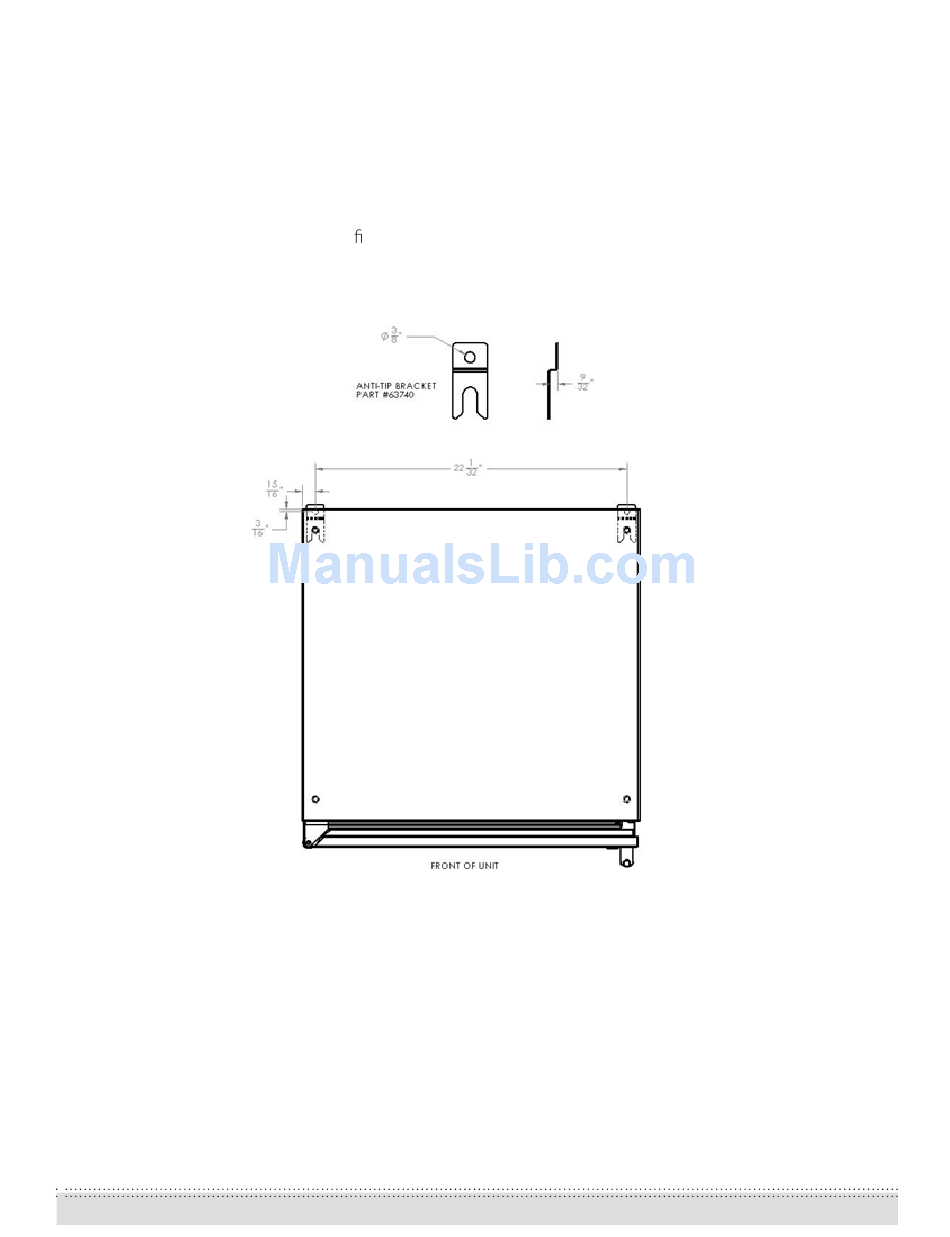

Figure 4. SINGLE DOOR ANTI-TIP LAYOUT
10
© 2011 24", 48" & 72" Cabinet Installation / Operation Manual
Document No. Z2305
