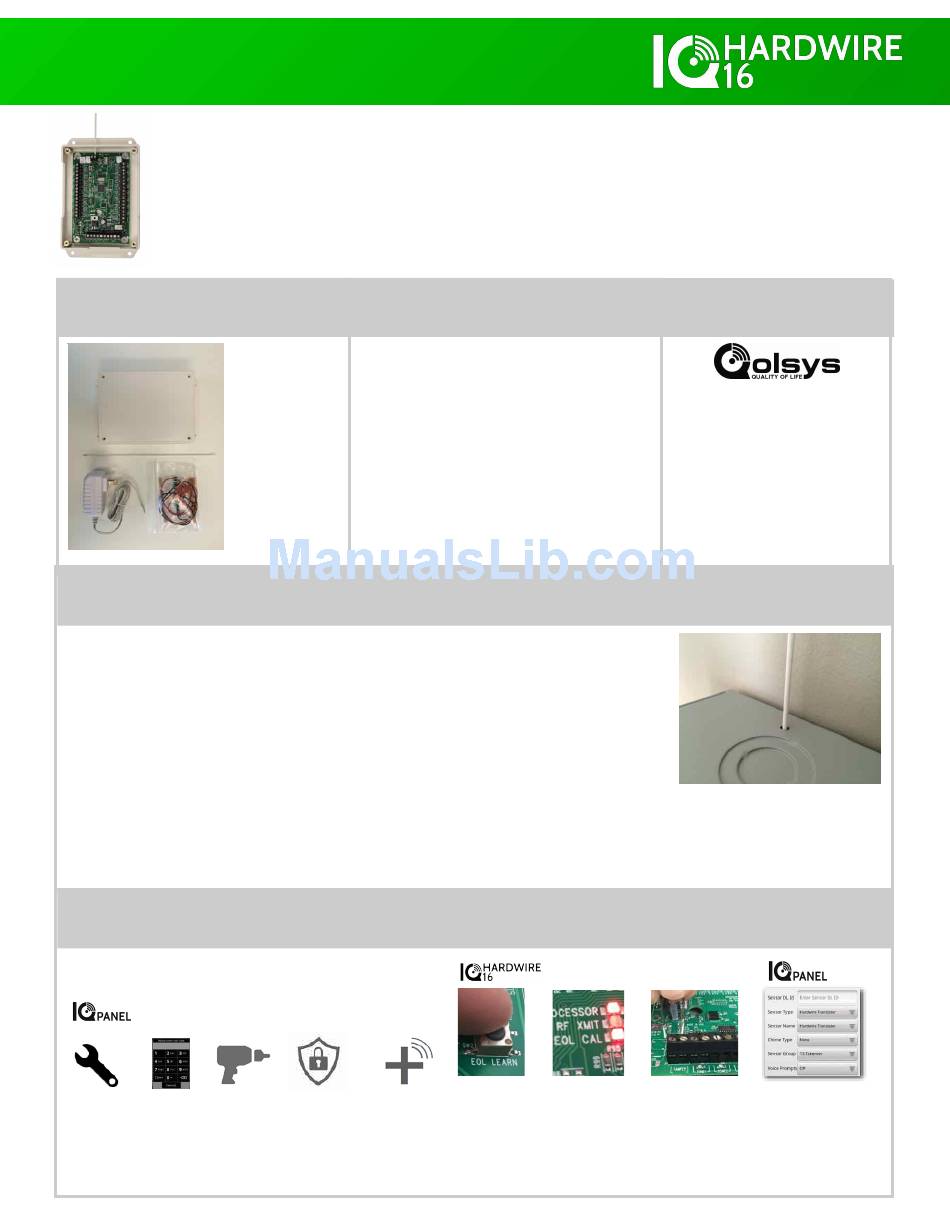

QUICK GUIDE

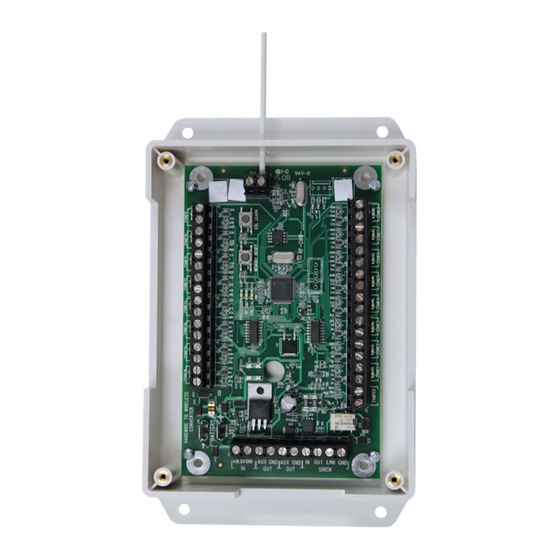

The IQ Hardwire 16 offers a cost effective way of integrating hardwired security zones
with the IQ Panel. It includes backup battery charging, an onboard siren relay and
features end-of-line resistor learning, making rewiring different resistor values a thing of
the past. It also supports magnetic contacts and powered zones such as motion sensors
and glass break detectors.
IN THE BOX
IQ Hardwire 16
Cover
Antenna
Power Supply
4 Screws
16 Resistors (3K)
Battery cables
STEP 1: INSTALL THE HARDWARE
1. Mount the IQ Hardwire 16 vertically in your desired location.
2. Install provided antenna into the "ANT" terminal at the top of the unit free from
obstructions
3. Wire all hardwired sensors/leads into the terminals marked "Zone 1-16"
a. All sensors must have a resistor installed between 1k-10k Ohm in either the N/O or N/C position
b. Wire the Positive and Negative leads from powered devices, such as motion sensors and glass break
sensors, into the "AUX" (+) and "GND" (-) terminals to power the device. (see wiring diagram)
c. Wire the tamper switch into the tamper terminals. (optional)
d. Wire optional hardwired siren (60VDC/1A Max, see wiring diagram)
4. If learning the IQ Hardwire 16 into the Panel for supervision, plug in a 5Ah Max backup
battery with included battery leads (battery not included).
5. With provided transformer, connect power supply leads into the terminals marked +16.0V
GND then plug in the IQ Hardwire 16' s power supply. (IMPORTANT: dashed wire is positive)
STEP 2: PAIR THE IQ HARDWIRE 16 WITH THE IQ PANEL
Note: This allows the IQ Panel to supervise the IQ Hardwire battery, power
status, aux power out, & tamper
Settings
Enter installer
Installation
code
(Default is 1111)
Note: Not for use with life safety devices, such as Smoke or CO detectors
TECHNICAL SPECIFICATIONS
Input Voltage: 16.0VDC Plug-In Transformer
Backup Battery: 12VDC 5AH Max (optional)
Dimensions: 5.5" X 3.5"
Operating Temperature: 32 to 122F (0 to 50C)
Humidity: 95% RH Max
EOL Supervision: 1K to 10K Ohm
Input Zones: 16 (must have resistor)
Zone Type: N/O or N/C compatible
Auxiliary Voltage Output: 12VDC @ 500mA
Tamper Zone: Optional zone input for tamper
Relay Contact: 60VDC/1A Max drives siren or
other device
Press and hold
"EOL Learn" for 1-2
Security
Auto Learn
secs. (
Sensors
Sensor
LED' s flash and
then turn off)
Trip the module
EOL Cal LED
by "shorting"
will turn ON.
all Zone
the "Tamper"
This puts the
terminals on the
module into
module with a
"Enroll Mode".
piece of wire.
INFORMATION
Document #: IQHW16QG
Revision Date: 5/26/15
Qolsys Part #: QS7121-840
Confidential & Proprietary.
Made in Taiwan.
Full installation manual and
other documentation available
at Qolsys.com.
If mounting inside a metal
can, the antenna must extend
outside the enclosure to
ensure RF communication
Follow the onscreen
prompts on the IQ
Panel to finish the
enrolling process. The
IQ Hardwire 16 should
be learned in as a
"Hardwire Translator"
