Procom PCR60M Manual page 11

Attaching to Wall Anchor Method
For attaching heater to hollow walls (wall are as
between studs) or solid walls (concrete or masonry):
1. Drill holes at marked locations using 5/16 -in.
drill bit. For solid walls (concrete or masonry),
drill at least 1-in. deep.
2. Fold wall anchor as shown in Figure 8.
3. Insert wall anchor (wings first) into hole.
Tap anchor flush to wall.
4. For thin walls, (1/2 -in. or less), insert key
into wall anchor. Push key to "pop" open
anchor winds (see Figure 9).
IMPORTANT: Do not hammer key! For thick
walls (over ½ -in. thick) or solid walls, do not
pop open wings.
5. Insert mounting screws through into wall
anchors, tighten screws to leave a 1/8 - 1/4
inch space from back of screw to wall.
Placing heater On Vertical Screws
1. Locate two horizontal slots on back
panel of heater (see figure 10)
2. Place heater onto screws.

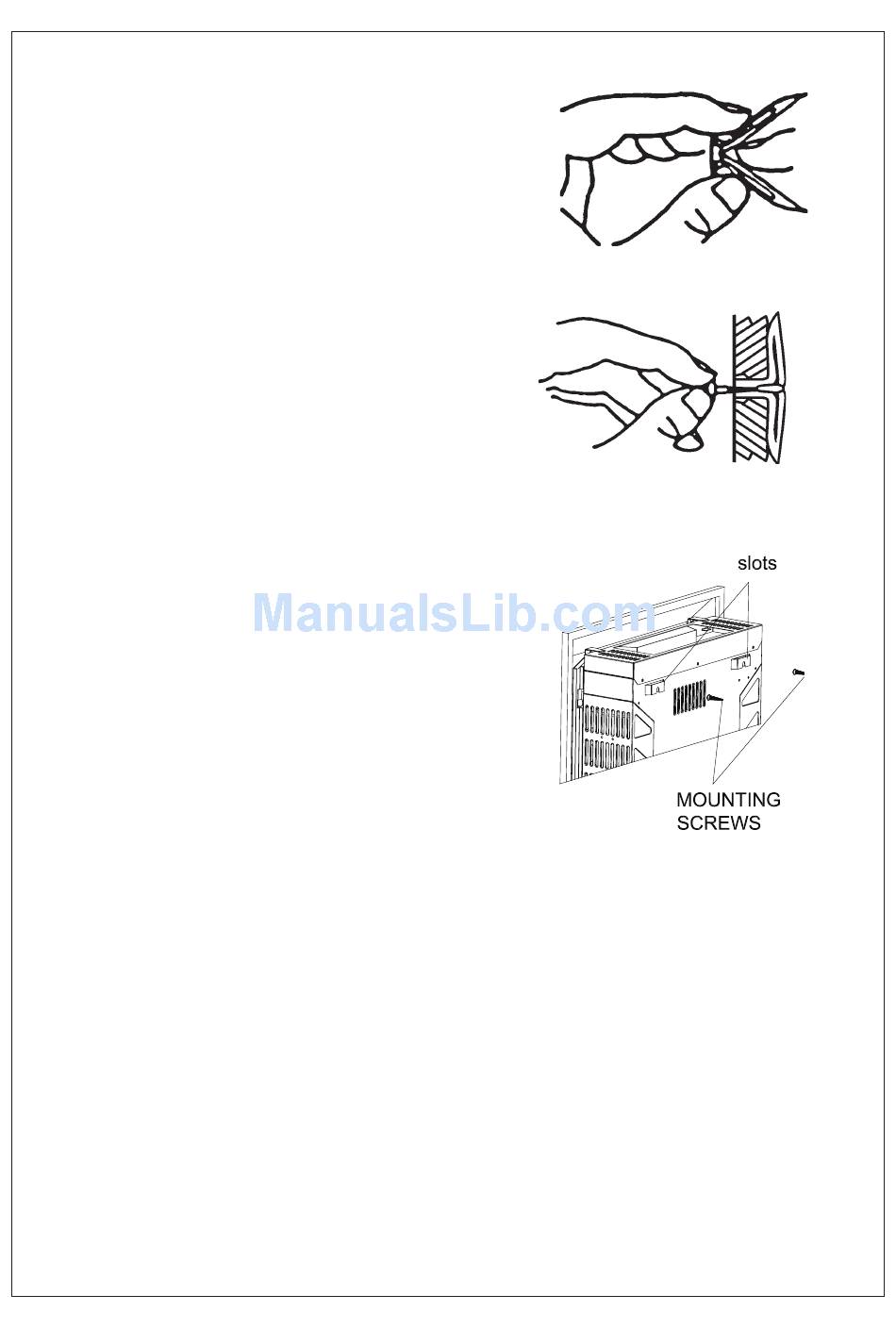

Figure 8- Folding Anchor
Figure 9- Popping Open
Anchor Wing for Thin Walls
Figure 10 - Mounting Heater Onto

Vertical
Mounting Screws
