WARNING: Maintain the minimum clearances
shown in Figure 5. If you can, provide greater
clearances from floor, ceiling, and joining wall.
CAUTION: This heater creates warm air currents.
These currents move heat to wall surfaces next to
heater. Installing heater next to vinyl or cloth wall
coverings or operating heater where impurities
(such as tobacco smoke, aromatic candles, cleaning
fluids, oil or kerosene lamps, etc.) in the air exist,
may discolor walls.
Clearances To Combustibles
Carefully follow the instructions below.
FASTENING HEATER TO WALL
Methods For Attaching Heater To Wall
Attach heater to wall in only one of two ways:
1. To wall stud
Attaching to Wall Stud: This method provides
the strongest hold.
2. To wall anchor
Attaching to Wall Anchor: This method allows
you to attach heater to hollow walls (wall areas
between studs) or to solid walls (concrete or
masonry). Decide which method better suits
your needs. Either meth will provide a secure
hold for the heater.
Mark screw locations on wall (see Figure 6).
Attaching Mounting screws To Wall
Note: Mounting screws are in hardware
package. The hardware package is
provided with heater.
Attaching to Wall Stud Method
1. Drill holes at marked locations using
9/64-inch drill bit.
2. Insert mounting screws into wall studs.
tighten screws to leave a 1/8 - 1/4 inch
space from back of screw to wall. (see figure 7)
13 MIN
13 MIN

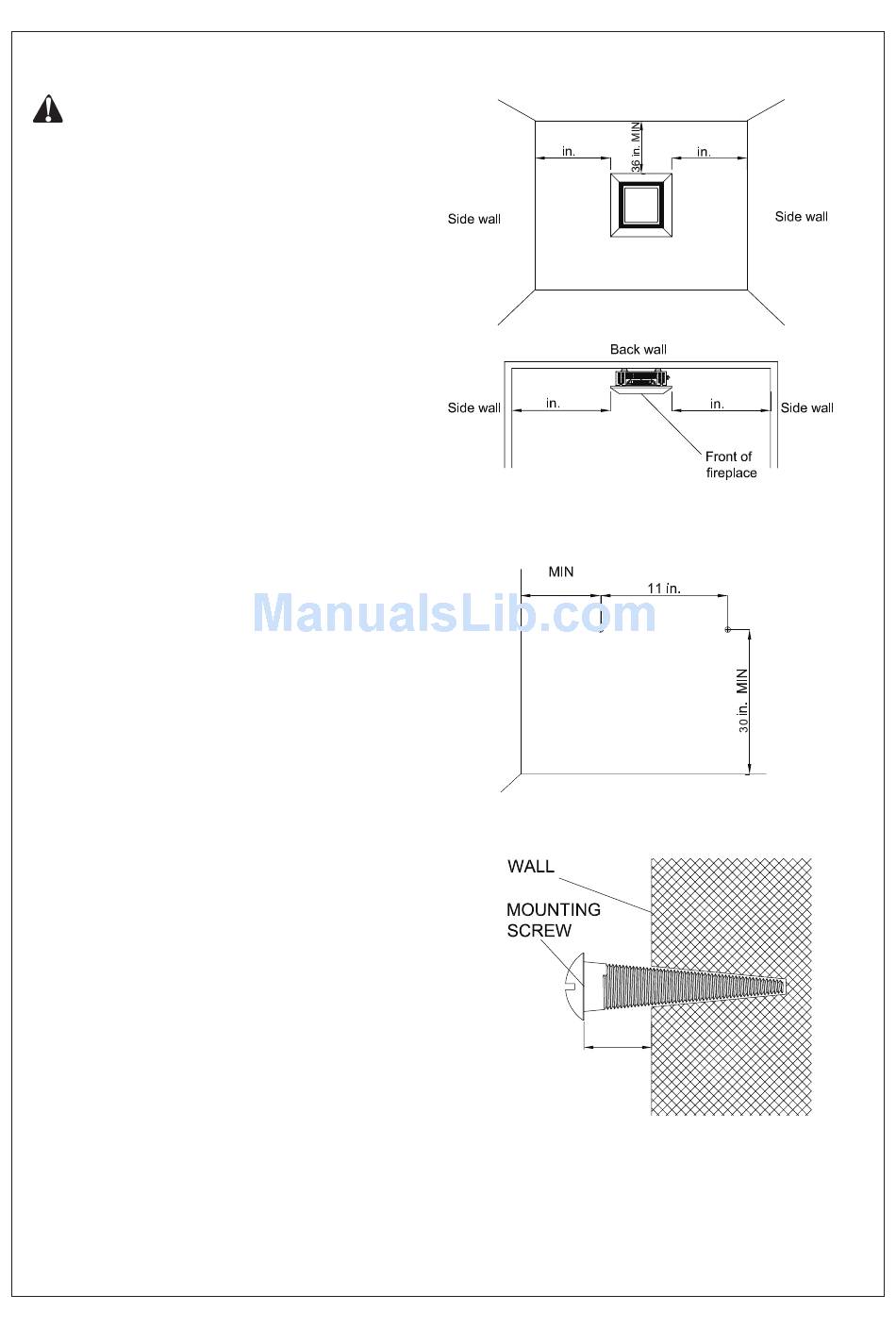

Figure 5 - Mouting clearances as
viewed from front of heater
17 1/2 in.
Figure 6 - Mounting screws clearances
1/8 - 1/4 inch
0 0
MIN
13
13 MIN
Figure 7
