WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
-- Do not store or use gasoline or other flammable vapors and liquids in vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
Call the fire department.
-- Service must be performed by a qualified service agency.
This is a propane -fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 6 of this manual.
INSTALLER: DO NO DISCARD THIS MANUAL – LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with
the type of gas indicated on the rating plate only. This appliance is not convertible for
use with other gases.
Questions about installation, operation, or troubleshooting? Before returning to your retailer, call
customer service department toll-free at (877)886-5989.

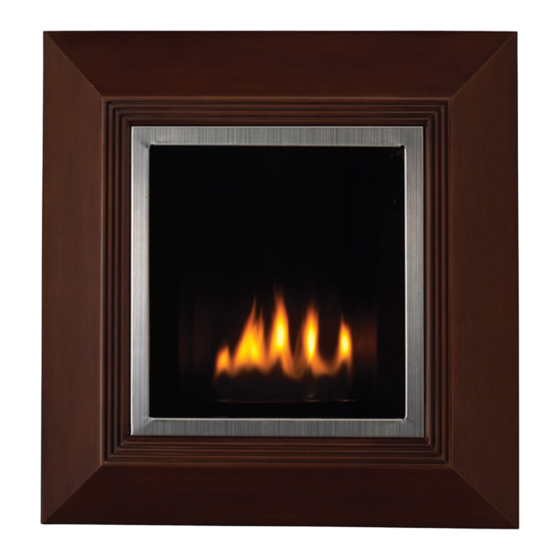

DECORATIVE VENT-FREE WALL HEATER
CAUTION - FOR YOUR SAFETY
MODEL NO. PCR60M
PC-PCR60M-0807
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Procom PCR60M
Summary of Contents for Procom PCR60M
- Page 1 DECORATIVE VENT-FREE WALL HEATER MODEL NO. PCR60M CAUTION - FOR YOUR SAFETY WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. -- Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any other appliance.
-
Page 2: Table Of Contents
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, and carbon monoxide poisoning. PRODUCT SPECIFICATIONS MODEL PCR60M BTU (available) 6,000 Gas Type Propane/LP... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, and carbon monoxide poisoning. -
Page 4: Product Features
1. This appliance is for use with only the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases. 2. This heater needs fresh air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. -
Page 5: Preparing For Installation
PREPARING FOR INSTALLATION Before beginning assembly or operation of the product, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or operate the product. -
Page 6: Air For Combustion And Ventilation
AIR FOR COMBUSTION AND VENTILATION WARNING: This heater should not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home. Providing Adequate Ventilation The following are excerpts from National Fuel Gas Code, NFPA 5/ANSI Z.. - Page 7 DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION Determining if You Have a Confined or Unconfined Space Use this worksheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.
- Page 8 CAUTION: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANSI Z./NFPA, Air for Combustion and Ventilation or applicable local codes.
-
Page 9: Installation
INSTALLATION This heater use a 1lb. propane cylinder. The heater is made to fasten to the wall. WARNING: When this heater is not in use, the gas supply must be turned off. Propane gas cylinder must be disconnected when a disposable cylinder is used. WARNING:Only disposable cylinder marked with the proper fuel type approved for the appliance. - Page 10 WARNING: Maintain the minimum clearances shown in Figure 5. If you can, provide greater clearances from floor, ceiling, and joining wall. CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist,...
- Page 11 Attaching to Wall Anchor Method For attaching heater to hollow walls (wall are as between studs) or solid walls (concrete or masonry): 1. Drill holes at marked locations using 5/16 -in. drill bit. For solid walls (concrete or masonry), drill at least 1-in. deep. 2.
-
Page 12: Operation
OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. When lighting the pilot, follow these instructions exactly. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor be- cause some gas is heavier than air and will settle on the floor. -
Page 13: To Turn Off Gas To Appliance
TO TURN OFF GAS TO APPLIANCE Shutting Off Heater Turn control knob clockwise to the OFF position. Shutting Off Burner Only (pilot stays lit ) Turn control knob clockwise to the PILOT/ IGN position. Never set control knob between locked positions. Poor combus- tion and higher levels of carbon monoxide may result. - Page 14 INSPECTING BURNER Check pilot flame pattern and burner flame pattern often. PILOT FLAME PATTERN Figure 14 shows a correct pilot flame pattern. Figure 15 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE WARNING: Turn off heater and let cool before servicing. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service technician. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc. -
Page 16: Troubleshooting
TROUBLESHOOTING WARNING: If you smell gas • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. •... - Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE CAUSE Burner(s) does not light after Burner orifice is clogged. 1. Clean burner orifice (see Care ODS/pilot is lit. and Maintenance, page 15) or replace burner orifice. Burner orifice diameter is too 2. Replace burner orifice. small.
- Page 18 POSSIBLE CAUSE REMEDY PROBLEM 1. Metal is expanding while This is common with most heaters. if Heater produces a clicking/ heating or contracting while noise is excessive, contact qualified ticking noise just after cooling. service technician. burner is lit or shut off. White powder residue 1.
-
Page 19: Replacement Parts
REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Contact authorized dealers of this product. If they can’t supply original replacement parts, call Customer Service toll free at (877)886-5989 for referral information. When calling Customer Service or your dealer, have ready: •... - Page 20 PARTS LIST This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 19 of this manual. KEY NO. PART NUMBER DESCRIPTION SRL60HA100 Front panel assembly FE32A155 Punchy magnet ND1908X400 ML083-02 Ignitor Mounting screws...
