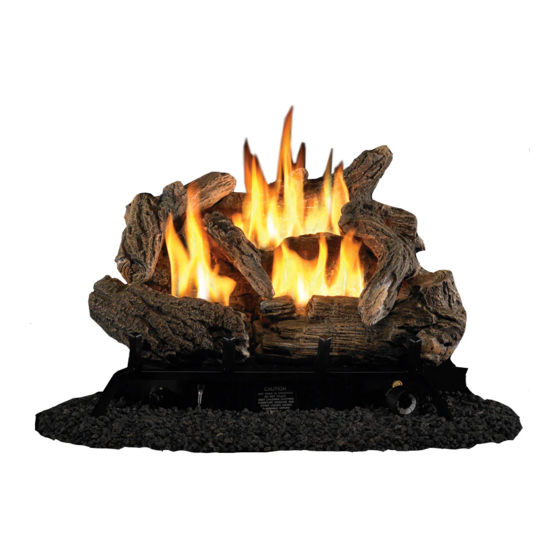

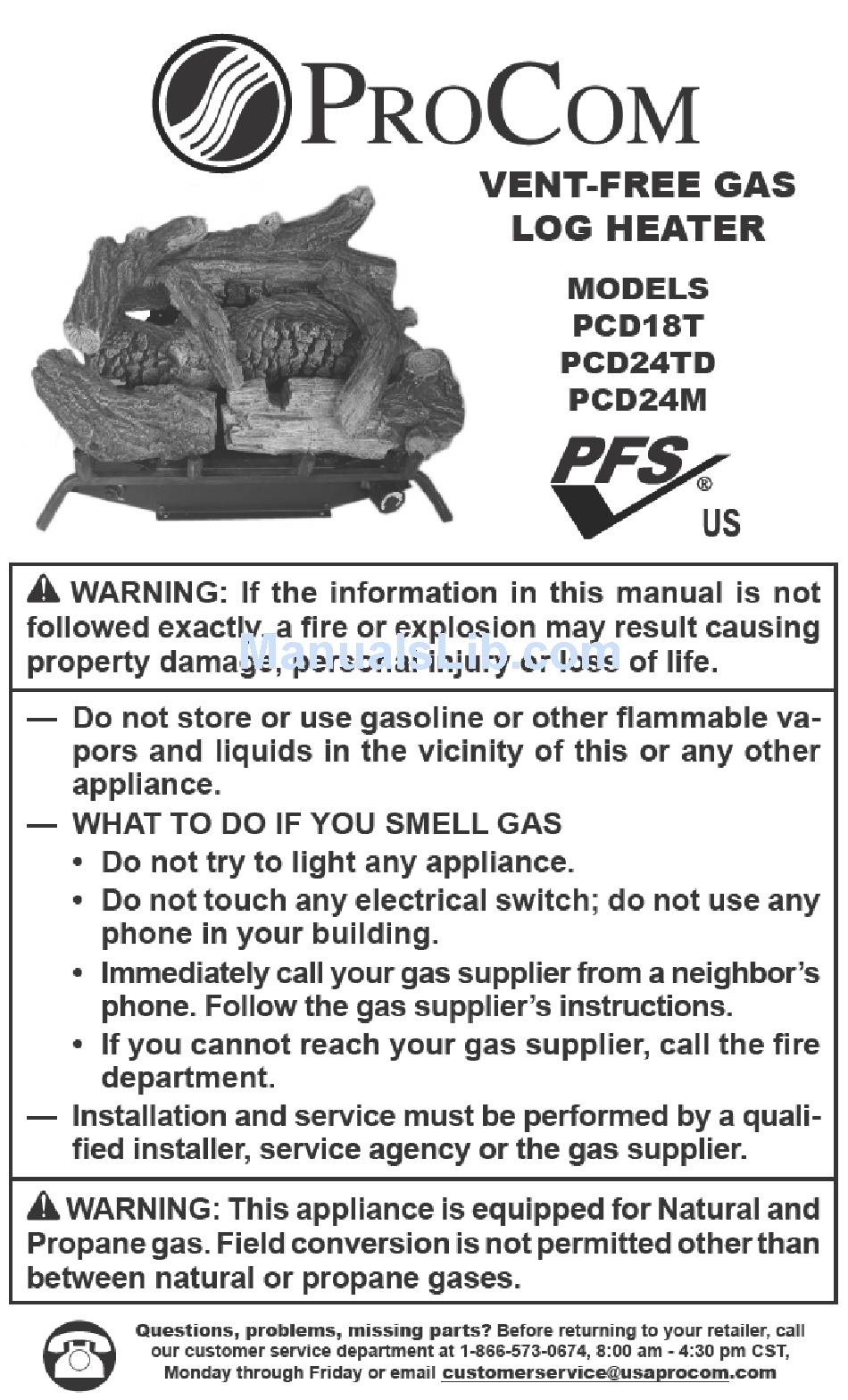

Vent-free gas log heater
Hide thumbs Also See for PCD18T:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCD18T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Procom PCD18T

Summary of Contents for Procom PCD18T

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Specifications ..........3 Operation ..........19 Safety ............3 Inspecting Burners........22 Product Features ........5 Care And Maintenance ......23 Local Codes..........5 Troubleshooting ........24 Unpacking..........5 Replacement Parts ........27 Qualified Installing Agency ......6 Technical Services ........

  • Page 3: Specifications

    SPECIFICATIONS MODEL PCD18T PCD24TD & PCD24M Ignition Electronic Piezo Electronic Piezo Gas Type Natural Propane/LP Natural Propane/LP Input Rating 30,000 BTU/Hr 30,000 BTU/Hr 32,000 BTU/Hr 32,000 BTU/Hr Manifold Pressure 4" W.C. 9" W.C. 4" W.C. 9" W.C. Inlet Gas Pressure* Max.
  • Page 4 SAFETY 5. If fireplace has glass doors, never operate WARNING: Do not place this heater with glass doors closed. If you clothing or other flammable operate heater with doors closed, heat will build-up inside fireplace and cause glass material on or near the appli- to burst.

  • Page 5: Product Features

    PRODUCT FEATURES This log set has been tested and approved to ANSI Z21.11.2 standard for Unvented Heaters and can be operated with the flue damper closed. State and local codes in some areas proh bit the use of vent-free heaters. SAFETY PILOT THERMOSTAT HEAT CONTROL This heater has a pilot with an Oxygen Deple-...

  • Page 6: Qualified Installing Agency

    QUALIFIED INSTALLING AGENCY Only a qualified agency should install and in such work; that is familiar with all precau- replace gas piping, gas utilization equipment tions required; and that has complied with or accessories, and repair and equipment ser- all the requirement of the authority having vicing.
  • Page 7 AIR FOR COMBUSTION AND VENTILATION Unusually Tight Construction The air that leaks around doors and windows c. caulking or sealants are applied to areas may provide enough fresh air for combustion such as joints around window and door and ventilation. However, in buildings of un- frames, between sole plates and floors, usually tight construction, you must provide between wall-ceiling joints, between wall...

  • Page 9: Installation

    INSTALLATION NOTICE: This heater is intended WARNING: Never install the for use as supplemental heat. heater Use this heater along with your • in a bedroom or bathroom primary heating system. Do not • in a recreational vehicle install this heater as your pri- •...
  • Page 10 INSTALLATION IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form too much moisture. See Air for Combustion and Ventilation, pages 6 through 8. Before beginning assembly or operation of the product, make sure all parts are pres- ent.
  • Page 12 INSTALLATION FLOOR CLEARANCES A. If installing appliance on the floor level, B. If combustible materials are less than 14" you must maintain the minimum distance to the fireplace, you must install appliance of 14" to combustibles (see Figure 8). at least 5" above the combust ble flooring (see Figure 9).
  • Page 14 INSTALLATION BATTERY INSTRUCTIONS Unscrew ignitor cap and install a AAA battery CAUTION: Do not mix old and with the + pointing out. Replace cap. new batteries. Do not mix alkaline, standard (carbon - zinc), or re- chargeable (nickel - cadmium) bat- teries.
  • Page 15 INSTALLATION CONNECTING TO GAS SUPPLY WARNING: A qualified ser- CAUTION: For natural gas, vice technician must connect check your gas line pressure heater to gas supply. Follow all before connecting heater to gas local codes. line. Gas line pressure must be no greater than 10.5"...
  • Page 20 OPERATION 5. Push in control knob slightly and turn 8. Turn control knob counterclockwise counterclockwise to the PILOT to the ON position. The main burner position. Press in control knob for five (5) should light. Set control knob to the de- seconds.

  • Page 23: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Turn off heater and let cool before servicing. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service techni- cian.

  • Page 24: Troubleshooting

    TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions.
  • Page 25 TROUBLESHOOTING Problem Possible Cause Corrective Action ODS/pilot lights but flame 1. Control knob is not fully 1. Press in control knob fully. goes out when control pressed in. knob is released. 2. Control knob is not pressed 2. After ODS/pilot lights, keep in long enough.
  • Page 26 TROUBLESHOOTING Problem Possible Cause Corrective Action Slight smoke or odor 1. Residues from manufactur- 1. Problem will stop after a few during initial operation. ing process. hours of operation. Heater produces a whis- 1. Turning control knob to high 1. Turn control knob to low tling noise when burner position when burner is cold.

  • Page 27: Replacement Parts

    When calling, please have your model and serial numbers of your heater ready. ACCESSORIES Purchase heater accessories and parts from your nearest dealer or service center. If they can not supply an accessory or part, call ProCom Heating, Inc. at 1-866-573-0674. www.usaprocom.com 200066-01A...
  • Page 29 PIMSC1-01 Ignitor ML073-04 ML073-04 ML073-04 Ignitor Cable NDD0308-400 NDD0308-400 NDD0308-400 ODS Pilot FBB28D11 FBB28D11 FBB28D11 Air Shutter YDF06-PCD18T YDF06-PCD24M YDF06-PCD24M Fuel Selection Device MDL304B MDL304B MDL304B Valve Knob RV83FI-4/9 RV83FI-4/9 RV83FI-4/9 Regulator PF120820 PF120820 PF120820 Regulator Plug 11-1 SIT545-218 SIT545-218...
  • Page 30 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ www.usaprocom.com 200066-01A...
  • Page 31 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ www.usaprocom.com 200066-01A...
