7000-SERIES MULTI-AMP CONFIGURATION GUIDE
3.9.3 Connect Amplifiers and Load
1. Power down the amplifiers.
2. Connect the two output wires leading from the MASTER amplifier's COM/SAMPLED COMMON connector
and last SLAVE amplifier's OUTPUT connector to your load.
3. Power up all amplifiers and allow them to come to the Ready state.
4. Apply a sine wave of 5Vrms at 100 Hz at the Master amplifier input. Using a voltmeter, measure across
the system load to verify an output from the system of approximately 200Vrms. See Figure 3.15.
5. Check the completed system diagrams in Figure 3.16 or 3.17 to verify proper system setup.
6. Turn input signal up to the level required for your application.
14

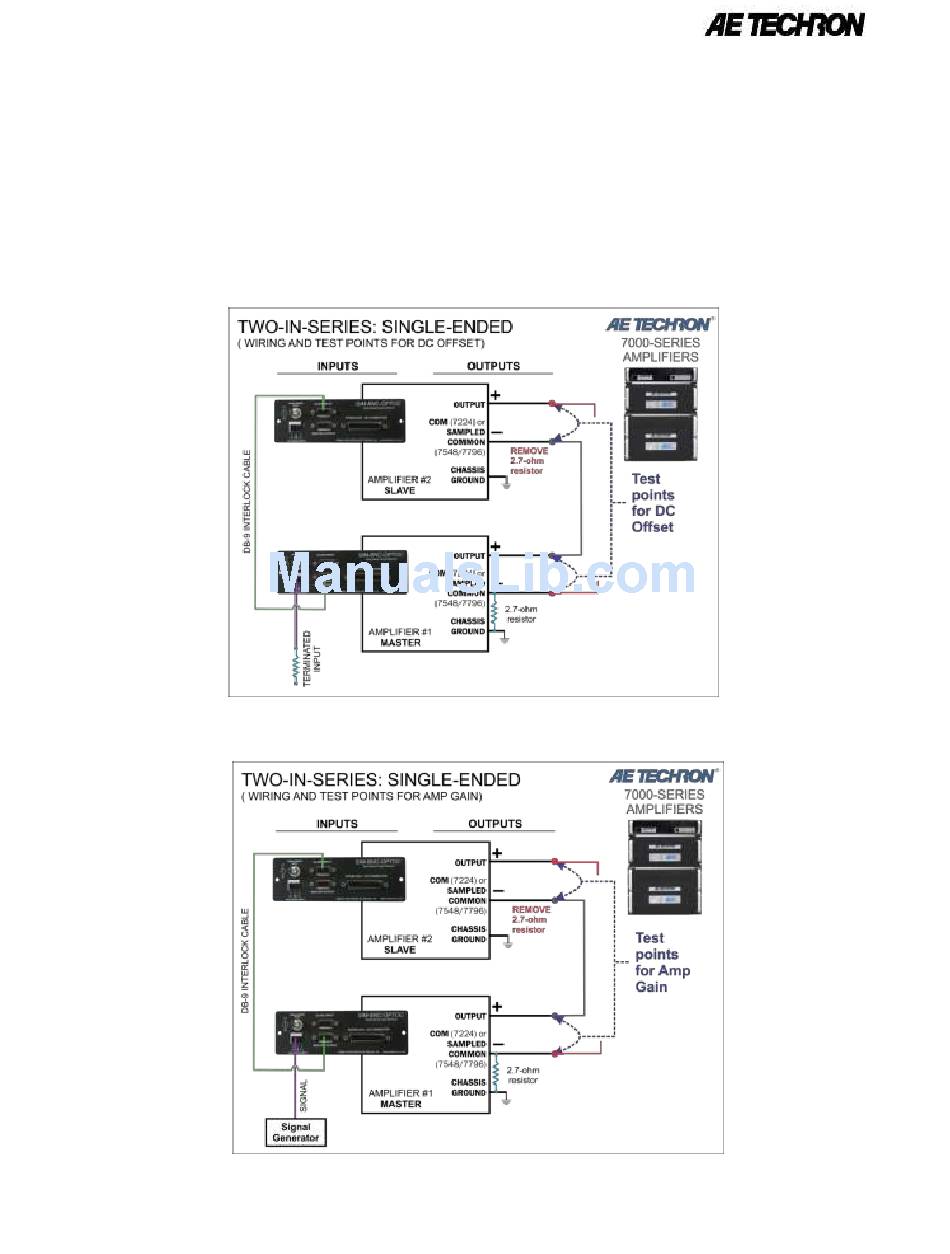

Figure 3.13 – Verifying DC Offset
Figure 3.14 – Verifying Amp Gain
Information subject to change 97-8002465_06-09-14
