Parallel Amplifier System Set-up Instructions
For AE Techron 7224, 7548 and 7796 Amplifiers
574.295.9495 |
www.AETechron.com
2507 Warren Street, Elkhart, IN 46516

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7224 and is the answer not in the manual?

Questions and answers

Summary of Contents for AE Techron 7224

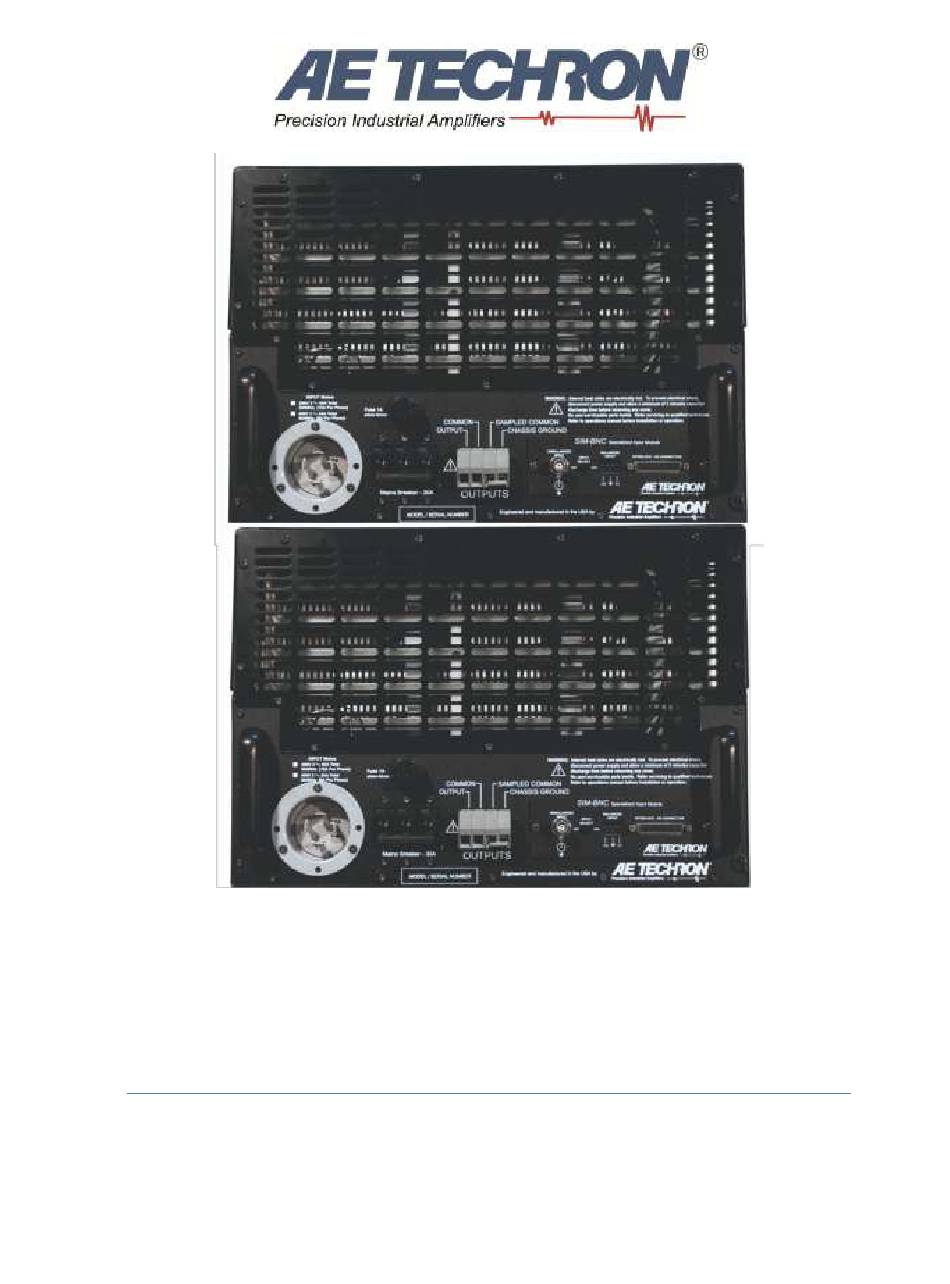

  • Page 1 Parallel Amplifier System Set-up Instructions For AE Techron 7224, 7548 and 7796 Amplifiers 574.295.9495 | www.AETechron.com 2507 Warren Street, Elkhart, IN 46516...
  • Page 2 List of Figures Figure 2.1 – Circulating Ground Current Bleed Resistor ..................3 Figure 2.2 – 7224 Access Panel Screw Locations ....................4 Figure 2.3 – Master / Slave Setting ......................... 4 Figure 2.4 – CC / CV Setting ............................. 4 Figure 2.5 –...
  • Page 3 PARALLEL AMPLIFIER SYSTEM SET-UP INSTRUCTIONS Introduction These instructions outline the steps needed to set up a pair of AE Techron 7000 Series amplifiers connected in parallel configuration. The wiring connections required between the two amplifiers are covered in the Tech Note: Configuring Multiple Amplifier Systems.
  • Page 4 3-5 minutes and the AC mains are disconnected. For 7224 Amplifiers: 1. The 7224 amplifier contains an Access Panel Figure 2.2 – 7224 Access Panel Screw Locations built into the top cover (see Figure 2.2). Locate the Access Panel and make sure that all 8 screws are accessible.
  • Page 5 PARALLEL AMPLIFIER SYSTEM SET-UP INSTRUCTIONS Temporarily remove the output cable from the OUTPUT terminal of each amplifier. Leave the SAMPLED COMMON cable connected to both amplifiers. 5. Enable Amplifiers Enable both amplifiers. Inject a DC voltage into the input of the Master amplifier that results in an output of approximately 80 volts DC.
