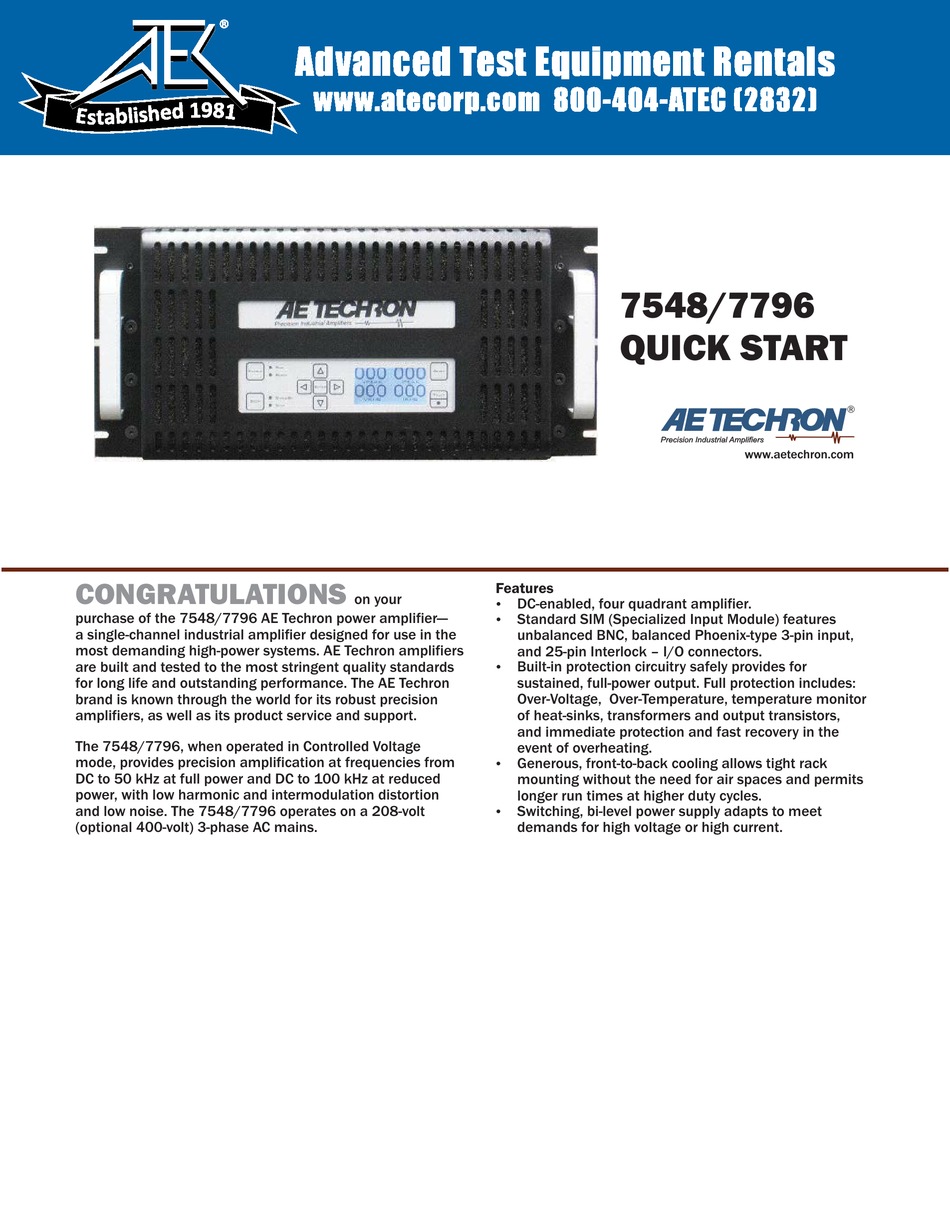

CONGRATULATIONS
purchase of the 7548/7796 AE Techron power amplifier—
a single-channel industrial amplifier designed for use in the
most demanding high-power systems. AE Techron amplifiers
are built and tested to the most stringent quality standards
for long life and outstanding performance. The AE Techron
brand is known through the world for its robust precision
amplifiers, as well as its product service and support.
The 7548/7796, when operated in Controlled Voltage
mode, provides precision amplification at frequencies from
DC to 50 kHz at full power and DC to 100 kHz at reduced
power, with low harmonic and intermodulation distortion
and low noise. The 7548/7796 operates on a 208-volt
(optional 400-volt) 3-phase AC mains.
Advanced Test Equipment Rentals
www.atecorp.com 800-404-ATEC (2832)
on your
7548/7796
QUICK START
Features
Ÿ
DC-enabled, four quadrant amplifier.
Ÿ
Standard SIM (Specialized Input Module) features
unbalanced BNC, balanced Phoenix-type 3-pin input,
and 25-pin Interlock – I/O connectors.
Ÿ
Built-in protection circuitry safely provides for
sustained, full-power output. Full protection includes:
Over-Voltage, Over-Temperature, temperature monitor
of heat-sinks, transformers and output transistors,
and immediate protection and fast recovery in the
event of overheating.
Ÿ
Generous, front-to-back cooling allows tight rack
mounting without the need for air spaces and permits
longer run times at higher duty cycles.
Ÿ
Switching, bi-level power supply adapts to meet
demands for high voltage or high current.
www.aetechron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7548 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AE Techron 7548

  • Page 1 Ÿ and low noise. The 7548/7796 operates on a 208-volt Switching, bi-level power supply adapts to meet (optional 400-volt) 3-phase AC mains. demands for high voltage or high current.
  • Page 2 Save the shipping carton and materials as evidence of damage. 2 CHECK CONTENTS In addition to the 7548 or 7796 amplifier, your carton should contain the following: 1. NEMA connector for power cord 2. 7548/7796 Operator's Guide CD and Quick Start...
  • Page 3 C. Input Wiring A. Select Mode of Operation Connect the input signal to the amplifier through the SIM- Note: the 7548/7796 amplifier ships from the factory BNC Specialized Input Module. Connect using Unbalanced configured to operate in CONTROLLED VOLTAGE mode. For BNC or Balanced Phoenix connectors.
  • Page 4 6 STARTUP PROCEDURE 1. Turn down the level of your signal source. 2. Check to make sure the AC Mains Switch/Circuit Breaker is in the off position (DOWN). 3. Apply AC power to the amplifier. 4. Move the AC Mains Switch/Circuit Breaker to the on position (UP) to turn the amplifier ON.
