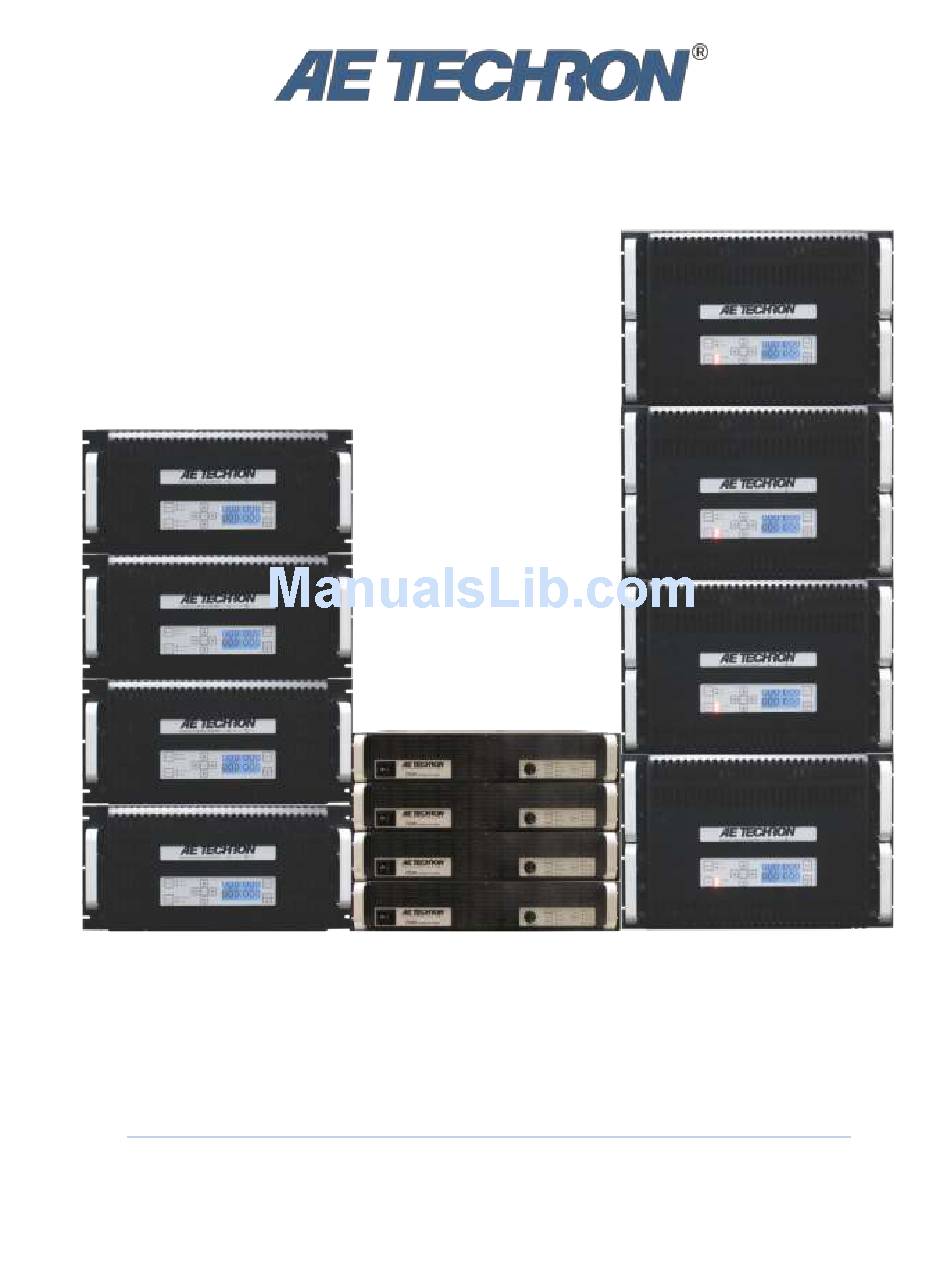

- Page 1 Multi-Amp Configuration Guide Step-by-Step Guide to Multi-Amp Systems using AE Techron 2100 and 7000-Series Amplifiers 574.295.9495 | www.AETechron.com 2507 Warren Street, Elkhart, IN 46516...
-
Page 2: Table Of Contents
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Table of Contents Multi-Amp Systems Using 2100 or 7000 Series Amplifiers ..............4 Safety First ..............................4 Overview ............................... 4 Multi-Amp Configuration Accessories ......................4 Accessory Recommendations by System Type .................... 5 Multi-amp System Principles ......................6 One Master Amplifier for Series Systems .................... - Page 3 AE TECHRON MULTI-AMP CONFIGURATION GUIDE List of Figures Figure 1.1 – Maximum Continuous Output in 7000-Series Multi-amp Systems ..........4 Figure 3.1 – Two in Series: Single-Ended vs. Differential ..................7 Figure 3.2 – SIM-BNC-OPTOC card jumper locations....................7 Figure 3.3 – 7224 Amplifier Access Panel Screw Locations ................. 9 Figure 3.4 –...
-
Page 4: Multi-Amp Systems Using 2100 Or 7000 Series Amplifiers
CAUTION graphics are used to highlight certain topics that require extra precaution. Overview A single AE Techron amplifier can provide continuous output current or voltage only up to a certain level. If you need increased output above those levels, you can combine multiple amplifiers into a system that can provide increased voltage or current. -
Page 5: Accessory Recommendations By System Type
The2105/7224 BAL RES KIT also contains the shunt required to defeat the amplifier’s external level control. NOTE: AE Techron Ballast Resistor Kits are sold as parts kits only. Buyers are responsible for installing the Ballast Resistor Kit in a way that meets local Safety requirements. -
Page 6: Multi-Amp System Principles
Use only 2100 or 7000-Series Amplifiers of the same Model Number Use only AE Techron 2100 or 7000-Series amplifiers of the same model to construct these multiple amplifier systems. You CANNOT combine different models of 2100 or 7000-Series amplifiers in the same system, such as combining 7224 amplifiers with 7548 amplifiers. -
Page 7: Series Systems Configuration And Wiring
AE TECHRON MULTI-AMP CONFIGURATION GUIDE 3 Series Systems Configuration and Wiring Choosing Single-Ended or Differential Configuration for Two-amplifier Systems Series amplifier systems can be configured with the load ground-reference (single-ended output) or floating (differential output). Refer to Figure 3.1 and use the following guidelines to select a Single-Ended or a Differential configuration. -
Page 8: Install Sim-Bnc-Optoc Input Cards In Amplifiers
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Slave Phase Inversion (jumpers J12 & J13): When the Upper two pins are shorted, this option inverts the input signal, allowing a Slave amplifier to operate in the Two in Series – Differential configuration. When the lower two pins are shorted, the input signal is not inverted, and the amplifier can operate as a Master amplifier or as a Slave for any Series –... -
Page 9: Remove Output Terminal Resistor
AE TECHRON MULTI-AMP CONFIGURATION GUIDE 3.4.1 Accessing the Main Board on 2105/7224 Amplifiers 2105 and 7224 amplifiers contain an Access Panel built into the top cover to allow easy access to the amplifier main board for configuration of the Master/Slave setting. -
Page 10: Series System Wiring
10 mVdc. See Figure 3.8. NOTE: If any amplifier’s DC offset is greater than 10 mVdc, the amplifier may require servicing. Contact AE Techron Technical Support. On the Master amplifier only, press the Stop button to place the amplifier in Standby mode. -
Page 11: Figure 3.8 - Verifying Dc Offset
AE TECHRON MULTI-AMP CONFIGURATION GUIDE 3.8.3 Connect Load and Test System Output Power down the amplifiers. Connect the two output wires leading from the MASTER and SLAVE OUTPUT connectors to your load. Power up both amplifiers and allow them to come to the Ready state. -
Page 12: Figure 3.10 - Verifying System Gain
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 3.10 – Verifying System Gain Figure 3.11 – Two Amplifiers in Series – Differential Configuration Information subject to change 97-8002465_09-19-14... -
Page 13: Two Or Three In Series - Single Ended
10 mVdc. See Figure 3.13. NOTE: If any amplifier’s DC offset is greater than 10 mVdc, the amplifier may require servicing. Contact AE Techron Technical Support. On the Master amplifier only, press the Stop button to place the amplifier in Standby mode. -
Page 14: Figure 3.14 - Verifying Amp Gain
AE TECHRON MULTI-AMP CONFIGURATION GUIDE 3.9.3 Connect Amplifiers and Load Power down the amplifiers. Connect the two output wires leading from the MASTER amplifier’s COM/SAMPLED COMMON connector and last SLAVE amplifier’s OUTPUT connector to your load. Power up all amplifiers and allow them to come to the Ready state. -
Page 15: Figure 3.15 - Verifying System Gain
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 3.15 – Verifying System Gain Figure 3.16 – Two Amplifiers in Series – Single-Ended Configuration 97-8002465_09-19-14 Information subject to change... -
Page 16: Figure 3.17 - Three Amplifiers In Series - Single-Ended Configuration
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 3.17 – Three Amplifiers in Series – Single-Ended Configuration Information subject to change 97-8002465_09-19-14... -
Page 17: Parallel Systems Configuration, Wiring And Balancing
AE TECHRON MULTI-AMP CONFIGURATION GUIDE 4 Parallel Systems Configuration, Wiring and Balancing Parallel multi-amp configurations require a ballast resistor (two resistors for 2120 and 7796 models) to be mounted on each amplifier’s back panel and connected to the amplifier’s OUTPUT connector. Complete the following steps for each... -
Page 18: Main Board Access
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Main Board Access Before operating a paralleled amplifier system, the system first must be “balanced” to ensure system stability. The balancing process seeks to calibrate the amplifiers so they operate as Do not attempt to access the Main Board while the amplifier is running. -
Page 19: Parallel System Balancing
AE TECHRON MULTI-AMP CONFIGURATION GUIDE On the amplifier main board, locate the connector that connects the external gain control to the main board by following the wire leading from the gain control (see Figure 4.6). Pull gently upward to remove the 3-pin connector from the main board. -
Page 20: Verify Interlock Operation
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Ensure that the inputs of all of the amplifiers are terminated by using a resistor-terminated barrier block connector (see Figure 4.9) or similar device. Verify Interlock Operation Power up each amplifier by switching to ON the front-panel... -
Page 21: Verify And Adjust Amplifier Gain
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 4.12 – Wiring the Paralleled Input Wire Figure 4.13 – Optional BNC Parallel Input Wiring (Three in Parallel shown) Figure 4.11 – Wiring and Test Points for DC Offset Verify and Adjust Amplifier Gain On the main board of each amplifier, locate the Amp Gain Trim (R210) (see Figure 4.10). -
Page 22: Amplifier Gain Matching
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 4.14– Wiring and Test Points for Amp Gain 4.10 Amplifier Gain Matching Connect a digital voltmeter set to AC volts between the positive outputs of the first and the second amplifier (see Figure 4.15). -
Page 23: Figure 4.15- Wiring And Test Points For Gain Matching
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 4.15– Wiring and Test Points for Gain Matching 97-8002465_09-19-14 Information subject to change... -
Page 24: Verify Minimal Circulating Currents
AE TECHRON MULTI-AMP CONFIGURATION GUIDE 4.11 Verify Minimal Circulating Currents Power down the amplifiers. On each amplifier, connect one ring terminal end of your RED output cable to the ballast resistor on each amplifier back panel. Note: Do not connect the LOAD at this time. -
Page 25: Figure 4.17 - Three Amplifiers Paralleled
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 4.17 – Three Amplifiers Paralleled 97-8002465_09-19-14 Information subject to change... -
Page 26: Figure 4.18 - Four Amplifiers Paralleled
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Figure 4.18 – Four Amplifiers Paralleled Information subject to change 97-8002465_09-19-14... -
Page 27: Appendix A Wire Current-Carrying Capacity
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Appendix A: Wire Current-Carrying Capacity Wire size or gauge should be selected to exceed the expected current it will carry. The chart below shows the minimum matching requirements of wire gauge and continuous duty amperage limits. -
Page 28: Appendix B Critical Wire Lengths In Parallel Systems
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Appendix B: Critical Wire Lengths in Parallel Systems In Parallel applications, the output wiring branches to each amplifier should match within ± ¼ inch. Figure B-1 – Critical Wire Lengths in Parallel Systems Information subject to change... -
Page 29: Appendix C Building Parallel System Output Cables
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Appendix C: Building Parallel System Output Cables The Parallel Wiring Kits available through AE Techron include pre-built cables to be used for Output connections. This section describes how to build your own output cables, if you so choose. -
Page 30: Appendix D Building The Db-25 Interlock Cable
Appendix D: Building the DB-25 Interlock Cable Parallel Wiring Kits are available through AE Techron that include a pre-built cable to be used for the Interlock connections. This section describes how to build your own DB-25 cable, if you so choose. -
Page 31: Appendix E Returning Slave Amplifiers To Stand-Alone Use
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Appendix E: Returning Slave Amplifiers to Stand-Alone Use The configuration settings required for Series system operation must be returned to the factory-default settings before a Slave amplifier can be used as a stand-alone amplifier. To reconfigure your Slave amplifiers for stand-alone use, complete the following. -
Page 32: Figure E-5 - Sim-Bnc-Optoc, Factory Default Settings
AE TECHRON MULTI-AMP CONFIGURATION GUIDE Remove Slave Labels (optional) We recommended removing any “Slave” amplifier labels to avoid later confusion or errors. Reconfigure SIM-BNC-OPTOC Cards. Refer to Figure E-5 for SIM-BNC-OPTOC factory-default settings. Note that for normal stand-alone operation, jumpers J6 and J7 (Master/Slave) should be returned to the factory defaults. Stand-alone amplifiers can operate with jumpers J4 (Balanced/Unbalanced) and J5 (Ground Lifted/Chassis Ground) set to either selection, depending on the user’s preference.
