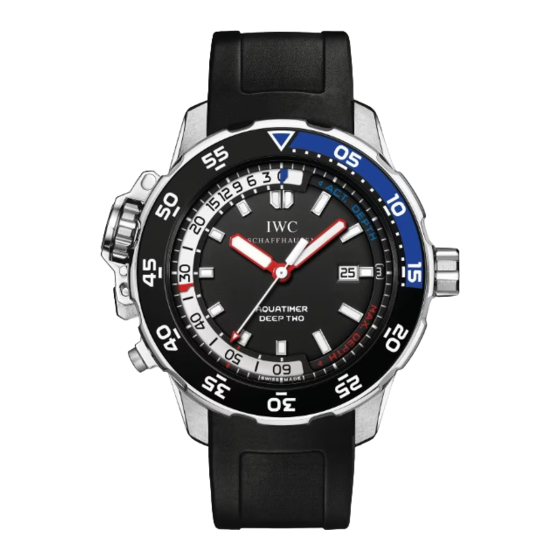

- Page 1 AQUATIMER DEEP TWO REF. 3547 OPERATING INSTRUCTIONS ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ...
- Page 3 Operating instructions English Инструкция по эксплуатации усский...
- Page 5 You are now the owner of a beautiful new example of this IWC tradition. We would like to congratulate you on your choice and send you our best wishes for the time you will spend with your watch, which perhaps cannot be described with any greater accur- acy than it is here.
- Page 6 The technical refinements of the Aquatimer Deep Two Your IWC watch shows you the time in hours, minutes and seconds, as well as the date, current dive depth and maximum depth achieved during your dive. The water pressure (and thus dive depth) is measured by a pressure converter and transmitted to the indicators, which show current dive depth and maximum dive depth down to 50 metres.
- Page 7 Key to the Aquatimer Deep Two 4 | 5 01 Hour hand 09 Screw-in crown 02 Minute hand 10 Adjustment crown with inte- 03 Seconds hand grated pressure converter 04 Date display 11 Hoop guard 05 Rotating bezel with time...
- Page 8 Functions of the crown X Normal position (screwed in) 0 Winding position 1 Date setting 2 Time setting Normal position This watch has a screw-in crown. Screwing the crown in to its normal pos- ition (X) prevents the inadvertent adjustment of the time or date and also acts as a double seal to prevent water from seeping into the case.
- Page 9 Winding position 6 | 7 With the crown in the winding position (0), you can also wind the automatic movement by hand. A few revolutions of the crown are enough to start the movement. However, it is better to wind the watch by turning the crown through approximately 20 revolutions as this will ensure maximum accuracy.
- Page 10 Reading the time in the dark The dial, the hour and minute hands, the marking on the rotating bezel, as well as the dive depth scale of your watch have luminescent elements that allow you to read the time effortlessly, even in total darkness or in poor light conditions in the water.
- Page 11 8 | 9 To clean the adjustment crown (10)*, proceed as follows: Press the slide (12) of the hoop guard (11) with your finger to release the locking mechanism. Fold back the hoop guard (11) and wash the adjustment crown (10) under running mains water.
- Page 12 If you are planning to use the watch to track your dive time and depth, you should be a certified open water diver and have the water- resistance and depth gauge checked regularly by an IWC service centre. To ensure that your watch continues to function perfectly, you should have it checked by an IWC service centre at least once a year.
- Page 13 Important note before diving 10 | 11 Please read the “Depth gauge of the Aquatimer Deep Two” section on page 10. The watch must always be checked visually before a dive. If there is any obvious damage, condensation on the glass, water in the case, or other signs of malfunction, the watch must not be used to keep track of dive time or depth and should be taken to an IWC service centre for checking.
- Page 14 First set the depth gauge to a value below zero (for example –2 metres). Then reset the maximum depth indicator (press the reset button (13)). By turning the adjustment crown (10), the depth gauge can now be set to zero. Inaccuracy in the depth gauge Tolerance range Excess pressure in bar...
- Page 15 Regular inspection and maintenance are required to ensure continued per- formance. For regular scuba use, IWC recommends that you have your watch inspected at least once a year by your authorized IWC Official Agent. Scuba diving is an inherently dangerous sport and involves serious risks of injury or death.
- Page 16 Taking the bracelet apart and removing individual links Remove the bracelet from the case as described and open the clasp by pressing the button on the side. Lay the bracelet with its top surface on a firm base. Using the special tools provided, you can now push down the se- curing pin (1) at the desired point of separation and, at the same time, displace the pivot pin laterally by approximately 3 milli-...
- Page 17 (1) on the underside of the horns. While holding the lever down, slide the connecting link out vertically from the underside of the case (2). * The Aquatimer bracelet quick-change system has been developed by IWC under a patent licence from Cartier.
- Page 18 To attach the bracelet, push down the two sides of the horns vertically towards the lower side of the case and into the recesses (3) until you hear and feel the retaining lever engage. When attaching the bracelet, you must ensure that the horns are securely en- gaged to prevent the bracelet coming off your wrist unintentionally.
- Page 19 To ensure that your watch continues to function perfectly, you should have it checked by an IWC service centre at least once a year. Your watch should also be tested after exposure to unusually harsh conditions. If the tests are not carried out as stipulated, or if the watch is opened by un- authorized persons, IWC will accept no warranty or liability claims.
- Page 20 For this reason, we recommend that you have your watch serviced approximately every five years. Please contact an authorized IWC Official Agent or send your watch directly to the IWC Customer Service Department in Schaffhausen. Effective from September 2009.
- Page 21 18 | 19...
- Page 23 20 | 21...
- Page 25 22 | 23...
- Page 27 24 | 25...
- Page 29 26 | 27...
- Page 31 28 | 29...
- Page 33 30 | 31...
- Page 35 32 | 33...
- Page 37 34 | 35...
- Page 39 36 | 37...
- Page 41 38 | 39...
- Page 43 40 | 41...
- Page 45 42 | 43...
- Page 47 44 | 45...
- Page 49 46 | 47...
- Page 51 48 | 49...
- Page 53 50 | 51...
- Page 55 52 | 53...
- Page 57 54 | 55...
- Page 59 56 | 57...
- Page 61 58 | 59...
- Page 63 60 | 61...
- Page 65 62 | 63...
- Page 67 64 | 65...
- Page 69 66 | 67...
- Page 71 68 | 69...
- Page 73 70 | 71...
- Page 75 72 | 73...
- Page 77 74 | 75...
- Page 79 76 | 77...
- Page 81 78 | 79...
- Page 83 80 | 81...
- Page 85 82 | 83...
- Page 87 84 | 85...
- Page 89 86 | 87...
- Page 90 IWC Schaffhausen Branch of Richemont International SA Baumgartenstrasse 15 CH-8201 Schaffhausen Switzerland Phone +41 (0)52 635 65 65 +41 (0)52 635 65 01 info@iwc.com www.iwc.com © Copyright 2011 IWC Schaffhausen, Branch of Richemont International SA Printed in Switzerland...
