INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow a attached
instructions or operating parameters may lead to the product's failure and possible
damage to property.
*******************************************************************************************

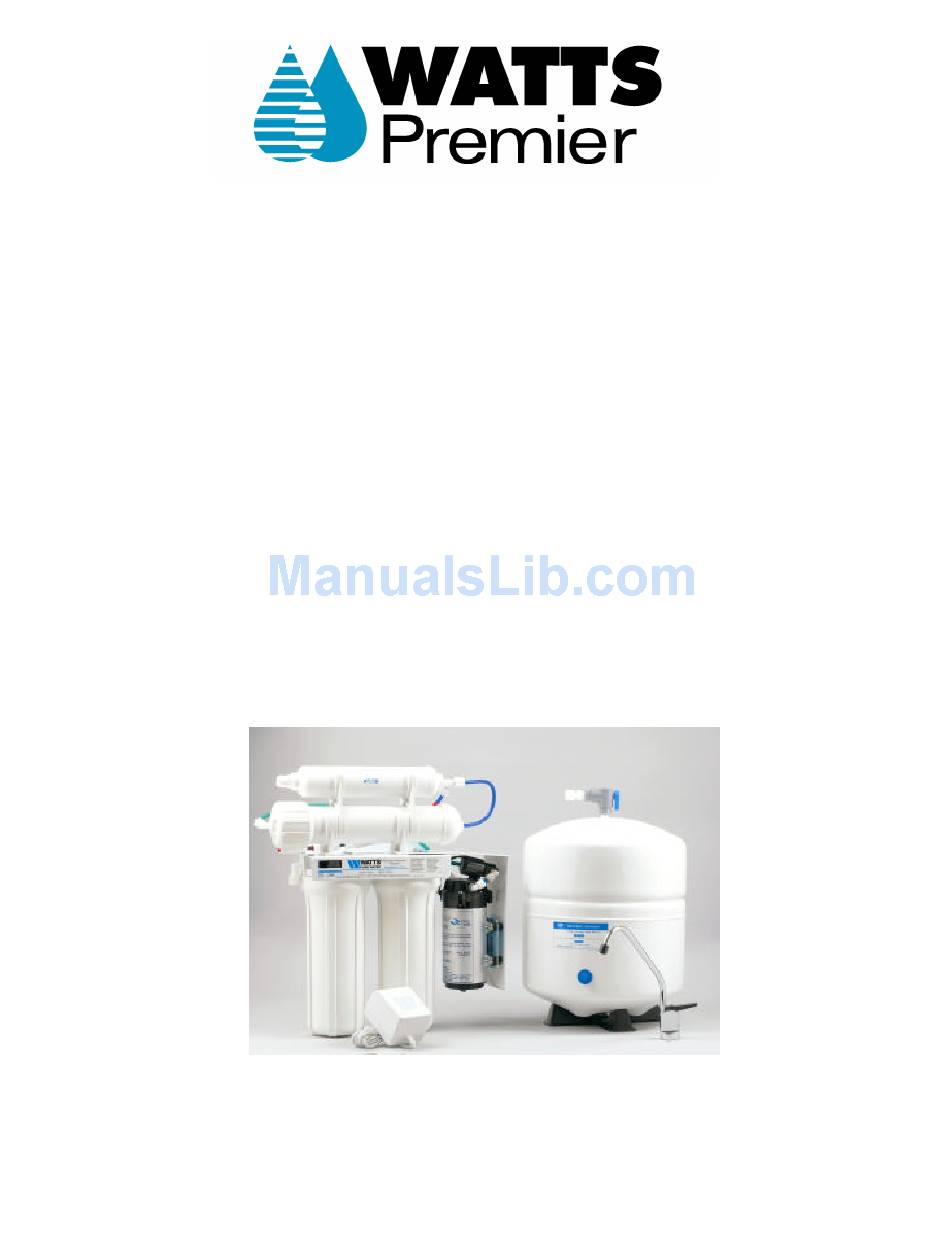

ZERO WASTE REVERSE OSMOSIS SYSTEM
Watts Premier, Inc.
Warning
Save manual for future reference.
Model 500029
1725 W. Williams Dr. C-20
Phone: 1-800-752-5582
Phoenix, AZ 85027
Advertisement
Table of Contents
Related Manuals for Watts Premier 500029
Summary of Contents for Watts Premier 500029
- Page 1 Please read carefully before proceeding with installation. Your failure to follow a attached instructions or operating parameters may lead to the product's failure and possible damage to property. ******************************************************************************************* Save manual for future reference. Model 500029 ZERO WASTE REVERSE OSMOSIS SYSTEM Watts Premier, Inc. 1725 W. Williams Dr. C-20 Phoenix, AZ 85027...
-
Page 2: Table Of Contents
Thank you for your purchase of a Watts Reverse Osmosis system. With proper installation and mainte- nance, this system will provide you with high quality water for years to come. All of Watts water enhance- ment products are rigorously tested by independent laboratories for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1-800-752-5582 (outside USA 623-931-1977). -
Page 3: Operational Parameters
Operational Parameters Do not use with water that is microbiologically unsafe or of unknown quality, without adequate disinfection before or after the system. Operating Temperatures: Maximum 100°F (37.8°C) Minimum 40°F ( 4.4°C) Operating Pressure: Maximum 100 psi (7.43 g/cm2) Minimum 40 psi (2.80 kg/cm2) pH Parameters: Maximum... -
Page 4: Installation Of Faucet
Installation of Faucet Caution: Porcelain sink surface material is extremely hard and may crack or chip. Use extreme caution when drilling. Watts accepts no responsibility for damage resulting from the installation of the faucet. Escutcheon Plate Black Rubber Washer Counter Top/Sink Black Locating Washer (used where a 1/2"... -
Page 5: Installation Of Hot And Cold Water Line Fittings
Installation of hot and cold water supply line valves For 3/8” plumbing For 1/2” plumbing Hand tighten brass nuts then apply 1/4 turn with a wrench. To Sink Faucet To Sink Faucet To RO System To RO System Supply Hose Supply Hose (not included) (not included) -
Page 6: Mounting The Ro Module
Mounting the RO module Step 10 Determine the best location for the RO Module to be mounted and allow for future system maintenance. Use a Phillips screwdriver and secure the screws 5 3/4” apart and 16” from the bottom of the cabinet. Note: There will be (2) Blue, (1) Green and (1) Black coming from the module. -
Page 7: Installation Of Storage Tank
Installation of Storage Tank Apply Teflon tape in a clockwise direction around the Step 15 male pipe threads on the tank. Thread the ball valve (supplied in the parts bag) Step 16 onto the stainless steel connector on the tank. Note: Do not over tighten plastics connections. -
Page 8: Start Up Instructions
Start up Instructions Warning: To prevent the possibility of electrical shock, clean up any water on cabinet floor and dry all water from outside of RO unit. Step 1 Turn on the incoming hot and cold water angle stop valves. Turn on the water line needle valves by turning counter clock- wise. -
Page 9: Annual Maintenance
Semi-annual maintenance continued Step 7 Inspect O-rings for wear and replace them if needed (order part no. WP113029 from Watts.) Lubricate O-rings with a water soluble lubricant such as KY Jelly®, (petroleum based lubricants such as Vaseline® must not be used.) Be sure to properly seat the O-ring in the housing before threading the housings onto the lid assembly. -
Page 10: Membrane Maintenance
(the end with only one elbow). Remove the cap from the white horizontal membrane housing. Note: To assist with the removal of cap a double sided wrench canbe purchased from Watts Premier. Step 2 Using a pair of pliers, grip and pull firmly on the membrane filter to remove it from the housing and discard the membrane. -
Page 11: Trouble Shooting
Trouble shooting Problem Cause Solution Low/slow production Excessive air pressure in tank Relieve pressure at schrader valve on tank (set to 7 psi with the tank empty) Pump not operating Wiring connection broken (plug 110 AC wall plug back in at wall and/or reconnect the 24 VAC wire harness connectors) Replace pump if needed Fouled membrane... -
Page 12: Adjust Faucet
Adjust Faucet If the faucet has developed a drip it can be corrected by following the steps outlined below. Step 1 Remove faucet Spout first. Position both thumbs on the back edge of the lever and push forward. Step 2 Lever will slide forward and completely off of the faucet base. -
Page 13: Service Record
SERVICE RECORD DATE OF PURCHASE DATE OF INSTALL INSTALLED BY SERIAL NO. NAME: Date of (6 mos.) (6 mos.) (1 yr.) (2-5 yrs.) OTHER Maintenance 1st stage 2nd stage Final Filter TFM Memb. Sediment Carbon Block Carbon NOTES:... -
Page 14: Warranty
OTHER CONDITIONS: If PREMIER chooses to replace the equipment, WATTS PREMIER may replace it with reconditioned equipment. Parts used in repairing or replacing the equipment will be warranted for 90 days from the date the equipment is returned to you or for the remainder of the original warranty period, whichever is longer. -
Page 16: Other Products
Other Products from Watts Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are only a few of the items we offer. - Page 17 Part No. 116006 White on chrome $25.95 Watts Premier Ice Maker Kit - High efficiency replaceable filter that can last up to 3 years or 10,000 gallons. Prefect for residential and commercial ice makers as well as refrigerators, drinking fountains, coffee & tea brewers, motor homes and camp- ers.
