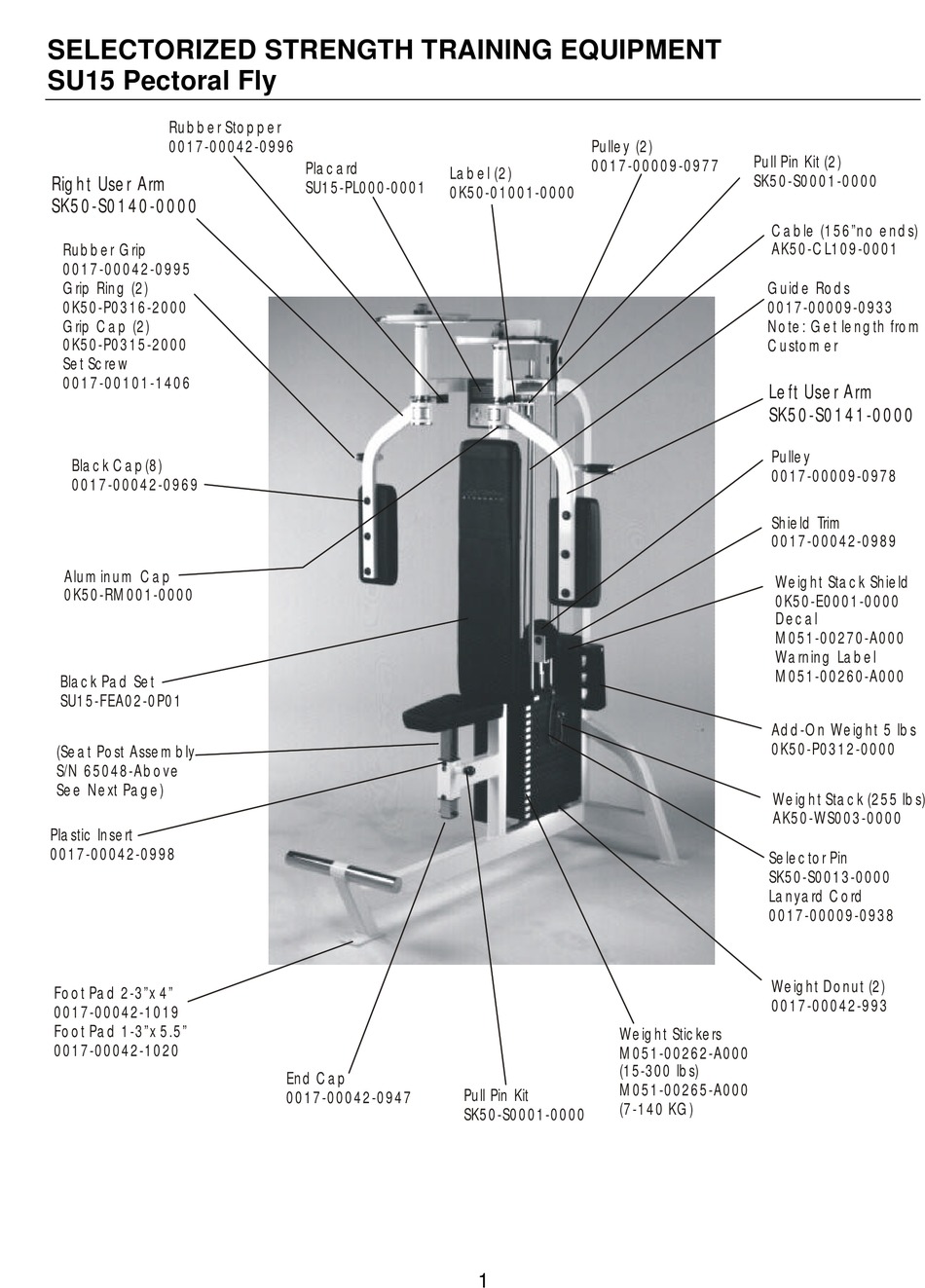

Life Fitness SU15 Assembly & Parts List

SELECTORIZED STRENGTH TRAINING EQUIPMENT
SU15 Pectoral Fly
Rubber Stopper
0017-00042-0996
Right User Arm
SK50-S0140-0000
Rubber Grip
0017-00042-0995
Grip Ring (2)
0K50-P0316-2000
Grip Cap (2)
0K50-P0315-2000
Set Screw
0017-00101-1406
Black Cap(8)
0017-00042-0969
Aluminum Cap
?
0K50-RM001-0000
Plastic Cap
0K50-P0521-0000
0K50-PO521-0000
Black Pad Set
Black Pad Set
SU15-FEA02-0P01
SU15-FEA02-0P01
(see lower right for
more pads, covers)
(Seat Post Assembly
S/N 65048-Above
See Next Page)
Plastic Insert
0017-00042-0998
Black Caps (small)
0017-00042-0968
Foot Pad 2-3"x 4"
0017-00042-1019
Foot Pad 1-3"x 5.5"
0017-00042-1020
Placard
Label (2)
SU15-PL000-0001
0K50-01001-0000
End Cap
Pull Pin Kit
0017-00042-0947
SK50-S0001-0000
Pulley (2)
0017-00009-0977
Weight Stickers
M051-00262-A000
(15-300 lbs)
M051-00265-A000
(7-140 KG)
1
Pull Pin Kit (2)
SK50-S0001-0000
Cable (156"no ends)
AK50-CL109-0001
AK50-CL155-0000
Guide Rods
0017-00009-0933
Note: Get length from
Customer
Left User Arm
SK50-S0141-0000
Pulley
0017-00009-0978
Shield Trim
0017-00042-0989
Weight Stack Shield
0K50-E0001-0000
Decal
M051-00270-A000
Warning Label
M051-00260-A000
Add-On Weight 5 lbs
0K50-P0312-0000
Weight Stack (255 lbs)
AK50-WS003-0000
Selector Pin
SK50-S0013-0000
Lanyard Cord
0017-00009-0938
Weight Donut (2)
0017-00042-993
Seat Pad
0K50-US007-0000
Back Pad
0K50-US023-0000
Forearm Pad
0K50-US050-0000
Wear Cover
0K50-UE004-0000
