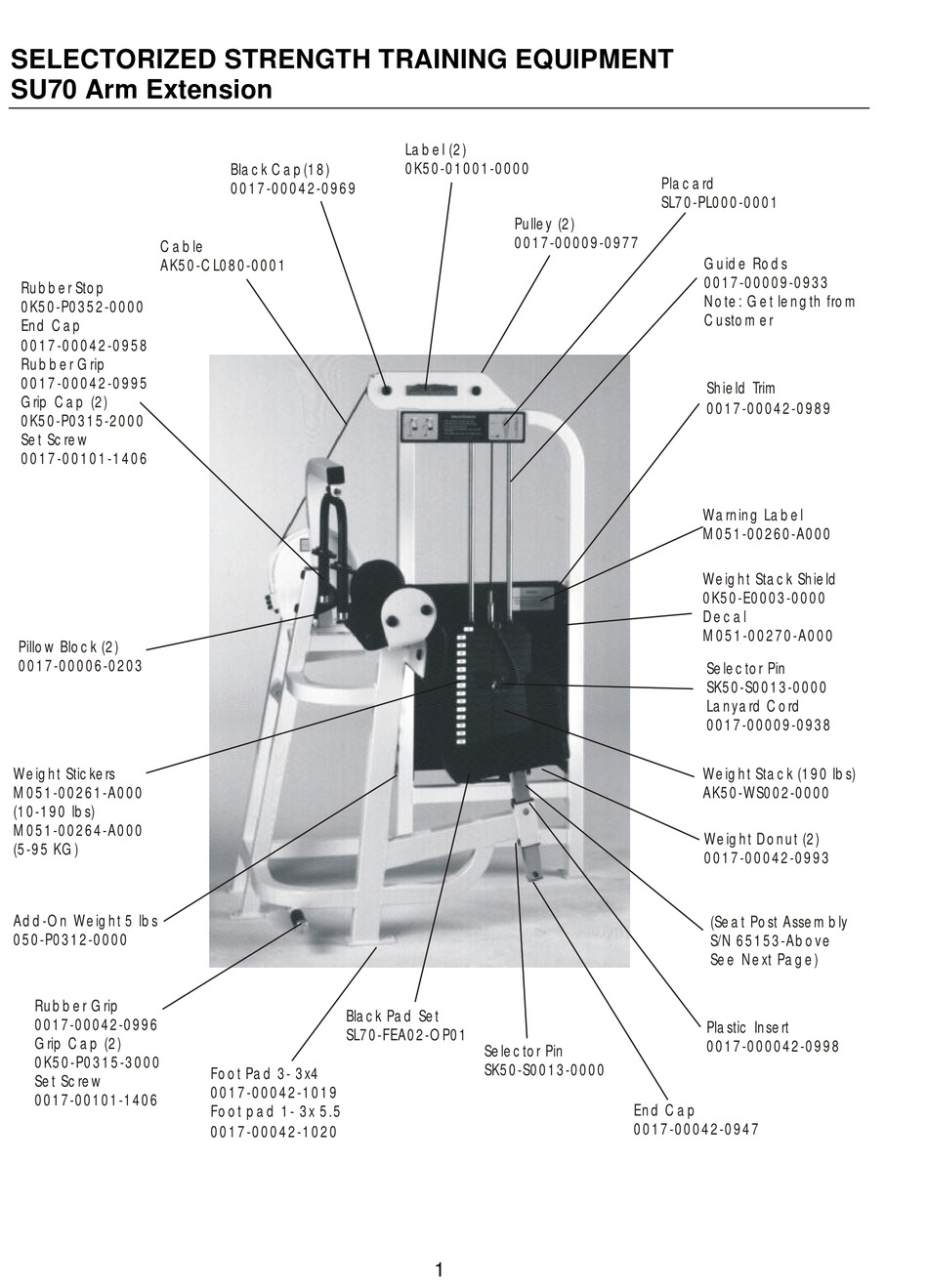

SELECTORIZED STRENGTH TRAINING EQUIPMENT
SU70 Arm Extension
Handle/Arm Bolt & Fasteners
Handle/Arm Bolt & Fasteners
0017-00101-1441 (bolt)
0017-00101-1441 (bolt)
0017-00103-0241 (nut)
0017-00103-0241
0017-00104-0363 (washer)
0017-00104-0363
0K50-P0301-0000
0K50-P0301-0000
Rubber Stop
0K50-P0352-0000
End Cap
0017-00042-0958
Rubber Grip
0017-00042-0995
Grip Cap (2)
0K50-P0315-2000
Set Screw
0017-00101-1406
Cam Assembly
SU70-S0007-000
Cable Bolts
0017-00101-1431
Pillow Block (2)
0017-00006-0203
Weight Stickers
M051-00261-A000
(10-190 lbs)
M051-00264-A000
(5-95 KG)
Add-On Weight
5 lbs
050-P0312-0000
Rubber Grip
0017-00042-0996
Grip Cap (2)
0K50-P0315-3000
Set Screw
0017-00101-1406
Black Cap(18)
0017-00042-0969
Cable
AK50-CL080-0001
AK50-CL085-0000
Foot Pad 3- 3x4
0017-00042-1019
Foot pad 1- 3x 5.5
0017-00042-1020
Label (2)
0K50-01001-0000
Pulley (2)
0017-00009-0977
Selector Pin
SK50-S0013-0000
Black Pad Set
SL70-FEA02-OP01
Selector Pin
Elbow Pad, Left
SK50-S0013-0000
0K50-US035-0000
Elbow Pad, Right
0K50-US034-0000
Chest Pad
0K50-US003-0000
Seat Pad
0K50-US056-0000
Back Pad
0K50-US057-0000
Wear Cover
0K50-UE002-0000
1
Bolt
0017-00101-1392
Nut
0017-00103-0228
Placard
SL70-PL000-0001
Guide Rods
0017-00009-0933
Note: Get length from
Customer
Shield Trim
0017-00042-0989
Warning Label
M051-00260-A000
Weight Stack Shield
0K50-E0003-0000
Decal
M051-00270-A000
Selector Pin
SK50-S0013-0000
Lanyard Cord
0017-00009-0938
Weight Stack (190 lbs)
AK50-WS002-0000
Weight Donut (2)
0017-00042-0993
(Seat Post Assembly
S/N 65153-Above
See Next Page)
Plastic Insert
0017-000042-0998
End Cap
0017-00042-0947
