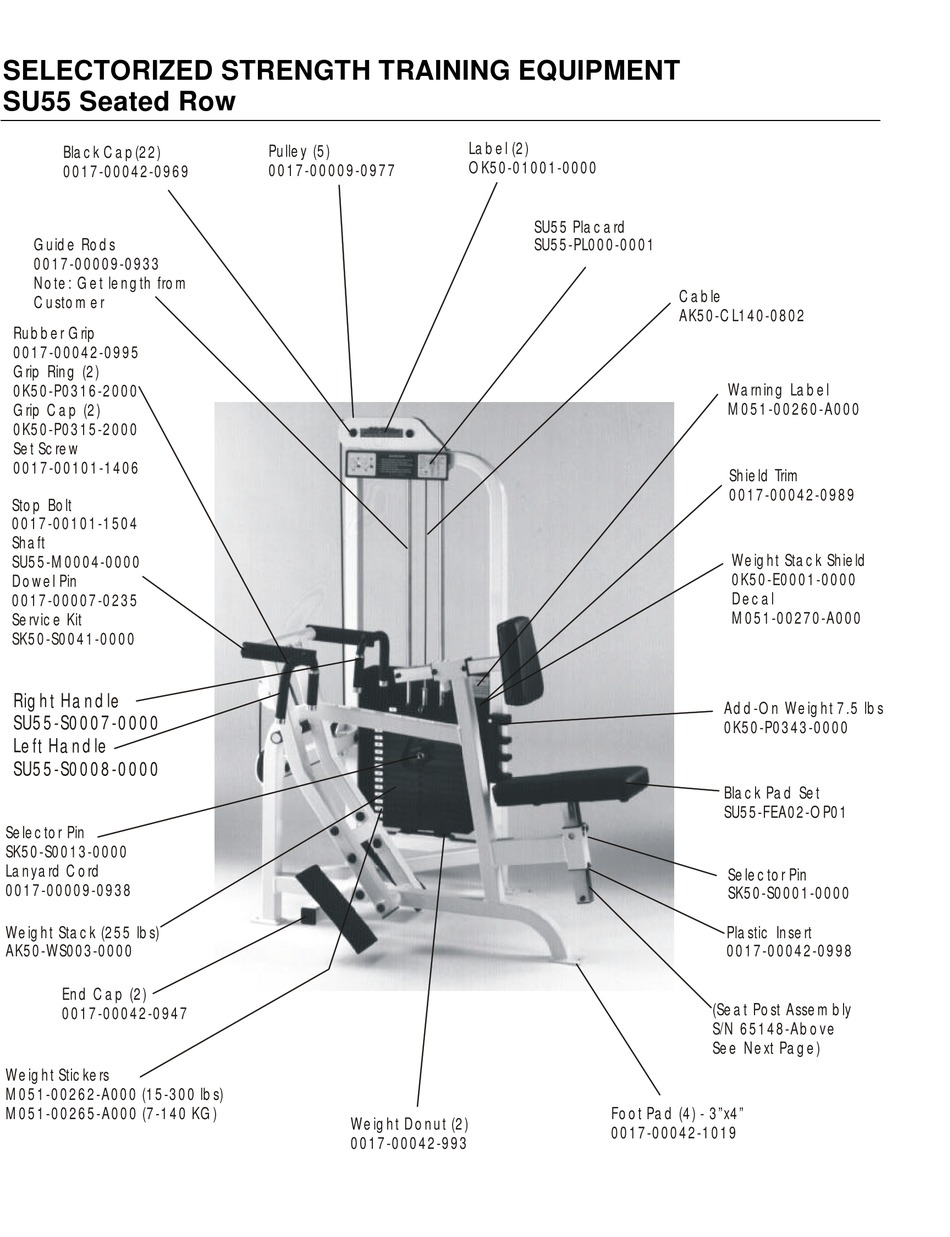

SELECTORIZED STRENGTH TRAINING EQUIPMENT
SU55 Seated Row
Bolt
Black Cap(22)
0017-00101-1392
0017-00042-0969
Nut
0017-00103-0228
Guide Rods
0017-00009-0933
Note: Get length from
Customer
Rubber Grip
0017-00042-0995
Grip Ring (2)
0K50-P0316-2000
Grip Cap (2)
0K50-P0315-2000
Set Screw
0017-00101-1406
Stop Bolt
0017-00101-1504
Shaft
SU55-M0004-0000
Dowel Pin
0017-00007-0235
Service Kit
SK50-S0041-0000
Right Handle
SU55-S0007-0000
Left Handle
SU55-S0008-0000
Selector Pin
SK50-S0013-0000
Lanyard Cord
0017-00009-0938
Weight Stack (255 lbs)
AK50-WS003-0000
End Cap (2)
0017-00042-0947
Weight Stickers
M051-00262-A000 (15-300 lbs)
M051-00265-A000 (7-140 KG)
Bumper
0017-00042-0942
Pulley (5)
0017-00009-0977
Foot Plate
0K50-P0529-0000
Weight Donut (2)
0017-00042-993
Label (2)
OK50-01001-0000
SU55 Placard
SU55-PL000-0001
Foot Pad (4) - 3"x4"
0017-00042-1019
Cable
AK50-CL140-0802
AK50-CL140-1202
Warning Label
M051-00260-A000
Shield Trim
0017-00042-0989
Weight Stack Shield
0K50-E0001-0000
Decal
M051-00270-A000
Add-On Weight
7.5 lbs
0K50-P0343-0000
Black Pad Set
SU55-FEA02-OP01
Black Pad Set
Chest Pad
SU55-FEA02-OP01
0K50-US036-0000
Seat Pad
0K50-US018-0000
Selector Pin
SK50-S0001-0000
Plastic Insert
0017-00042-0998
(Seat Post Assembly
S/N 65148-Above
See Next Page)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Life Fitness SU55
Summary of Contents for Life Fitness SU55
- Page 1 SELECTORIZED STRENGTH TRAINING EQUIPMENT SU55 Seated Row Bolt Black Cap(22) 0017-00101-1392 0017-00042-0969 0017-00103-0228 Guide Rods 0017-00009-0933 Note: Get length from Customer Rubber Grip 0017-00042-0995 Grip Ring (2) 0K50-P0316-2000 Grip Cap (2) 0K50-P0315-2000 Set Screw 0017-00101-1406 Stop Bolt 0017-00101-1504 Shaft SU55-M0004-0000...
-
Page 2: Seat Post
SELECTORIZED STRENGTH TRAINING EQUIPMENT SU55 Seat Post Assembly - S/N 65148-Above Item No. Qty. Part Number AK50-S0028-0000 0K50-P0547-0000 0K50-P0548-0000 0017-00101-1655 0017-00009-1079 NOTE: The Seat Guide is welded to the frame. Shown separately 2-3/16” for illustration purposes only. Seat Post Assembly The 13 notch front/back striker plate is grey.
