Summary of Contents for Life Fitness Signature Series SUB
-

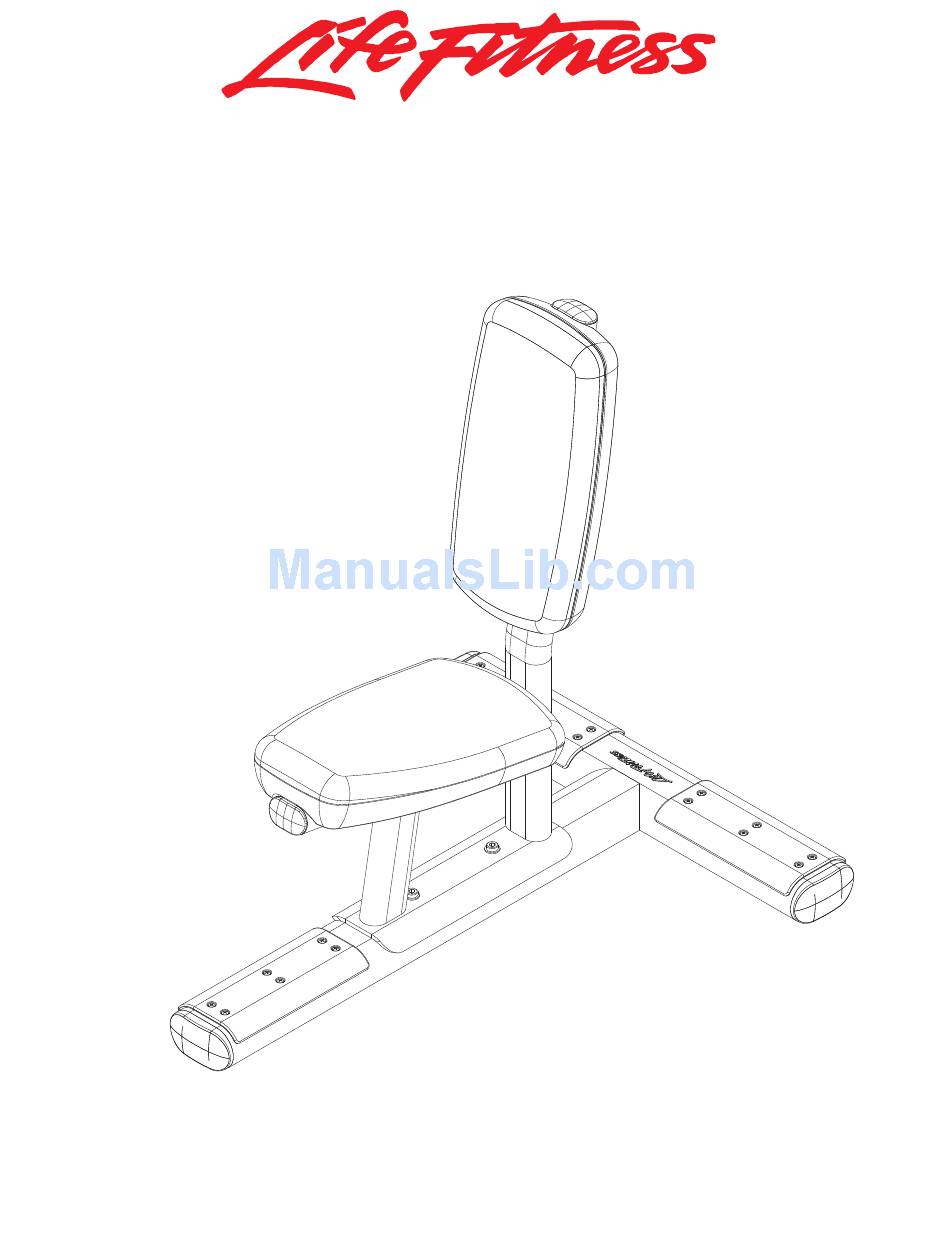

Page 1: Parts List
SIGNATURE SERIES SIGNATURE UTILITY BENCH Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
SUB SIGNATURE UTILITY BENCH CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND BASE FRAME ASSEMBLY BASE FRAME ASSEMBLY LEGEND SEAT FRAME ASSEMBLY IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’ WITH THE REQUIRED COLOR CODES. FRAME 01 = WHITE 02 = PLATINUM PADS 01 = BLACK 99 = CUSTOM... -
Page 3: Component Assembly
SUB SIGNATURE UTILITY BENCH COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
SUB SIGNATURE UTILITY BENCH COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. LEA3256204 SCREW, M10 X1.5 35MM PART NO. DESCRIPTION 78411XX PTD ASSY, SUB, BASE FRAME 78412XX PTD ASSY, SUB, SEAT FRAME 74689XX PAD 18 X 9 CONVEX 78138XX PAD, 10 X 16 TAPERED CONVEX 3237403 PLUG, 1"... -
Page 5: Base Frame Assembly
SUB SIGNATURE UTILITY BENCH BASE FRAME ASSEMBLY - 78411XX ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Base Frame Assembly Legend
SUB SIGNATURE UTILITY BENCH BASE FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78411XX PTD ASSY, SUB, BASE FRAME 7800401 CAP, LRG FLOV END 7821702 GUARD PAINT 7810801 PAD, RUBBER FOOT 3114407 WASHER, SAE #10 3239102 SCREW, M5X12 PHL PAN TT ST BZ 8106101 LABEL, LIFE FIT 13/16 X 4-3/8'' SG 8106801 LABEL, SERIAL NUMBER, LARGE Page 6... -
Page 7: Seat Frame Assembly
SUB SIGNATURE UTILITY BENCH SEAT FRAME ASSEMBLY - 78412XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78412XX PTD ASSY, SUB, SEAT FRAME 7800501 CAP, SML FLOV END LEA7002401 LABEL, V WARNING 4.5 X 1.625 Page 7... -
Page 8: Image
SUB SIGNATURE UTILITY BENCH IMAGE ________________________________________ Page 8...
