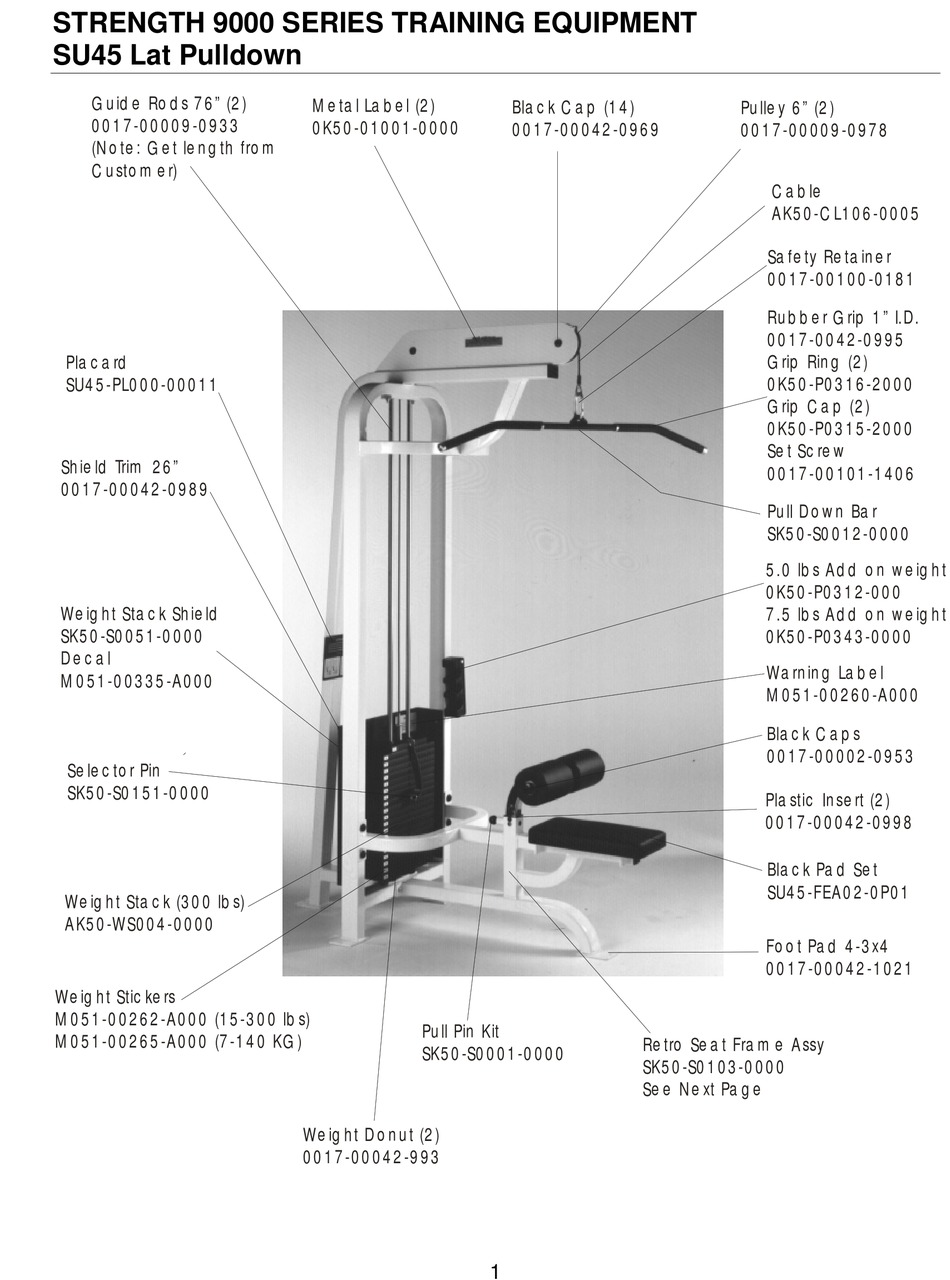

STRENGTH 9000 SERIES TRAINING EQUIPMENT
SU45 Lat Pulldown
Guide Rods 76" (2)
0017-00009-0933
(Note: Get length from
Customer)
Placard
SU45-PL000-00011
Shield Trim 26"
0017-00042-0989
Weight Stack Shield
SK50-S0051-0000
Decal
M051-00335-A000
Selector Pin
SK50-S0151-0000
Weight Stack (300 lbs)
AK50-WS004-0000
Weight Stickers
M051-00262-A000 (15-300 lbs)
M051-00265-A000 (7-140 KG)
Metal Label (2)
0K50-01001-0000
Pull Pin Kit
SK50-S0001-0000
Weight Donut (2)
0017-00042-993
1
Black Cap (14)
0017-00042-0969
Retro Seat Frame Assy
SK50-S0103-0000
See Next Page
Bolt
0017-00101-1392
Nut
0017-00103-0228
Pulley 6" (2)
0017-00009-0978
Cable
AK50-CL106-0005
AK50-CL105-1205
Safety Retainer
0017-00100-0181
Rubber Grip 1" I.D.
0017-0042-0995
Grip Ring (2)
0K50-P0316-2000
Grip Cap (2)
0K50-P0315-2000
Set Screw
0017-00101-1406
Pull Down Bar
SK50-S0012-0000
5.0 lbs Add on weight
0K50-P0312-000
7.5 lbs Add on weight
0K50-P0343-0000
Warning Label
M051-00260-A000
Black Caps
0017-00002-0953
0017-00042-0953
Plastic Insert (2)
0017-00042-0998
Black Pad Set
SU45-FEA02-0P01
Foot Pad 4-3x4
0017-00042-1021
additional pads:
additional pads:
Roller Pad (2)
Roller Pad (2)
0K50-US009-0000
0K50-UW009-0000
Seat Pad
Seat Pad
0K50-US019-0000
0K50-US019-0000
Advertisement
Related Manuals for Life Fitness SU45
Summary of Contents for Life Fitness SU45
- Page 1 STRENGTH 9000 SERIES TRAINING EQUIPMENT SU45 Lat Pulldown Guide Rods 76” (2) Metal Label (2) 0017-00009-0933 0K50-01001-0000 (Note: Get length from Customer) Placard SU45-PL000-00011 Shield Trim 26” 0017-00042-0989 Weight Stack Shield SK50-S0051-0000 Decal M051-00335-A000 Selector Pin SK50-S0151-0000 Weight Stack (300 lbs)
- Page 2 STRENGTH 9000 SERIES TRAINING EQUIPMENT SU45 Lat Pulldown Seat Frame Assembly Bushing 3/4” 0017-00009-0929 Grooved Pin Stop 0K50-P0590-0000 Retaining Clip 0017-00100-0190 Thigh Restraint SM15-S0002-0000 Lat Bench Service Kit (w/weldments & hardware) SK50-S0103-0000 Pull Pin SK50-S0006-0000 Shaft Collar 0017-00009-0942 Black Rubber Cap...
