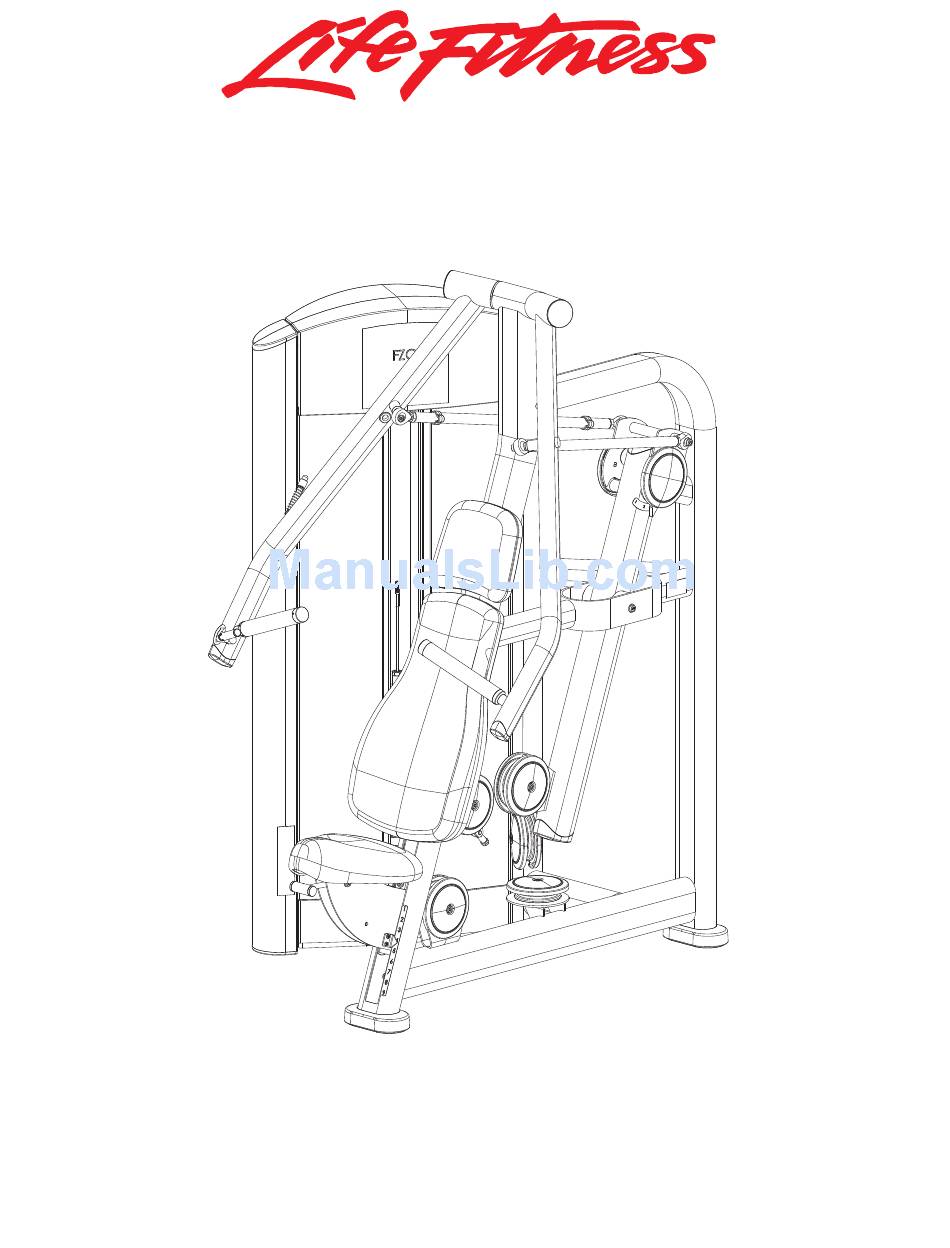

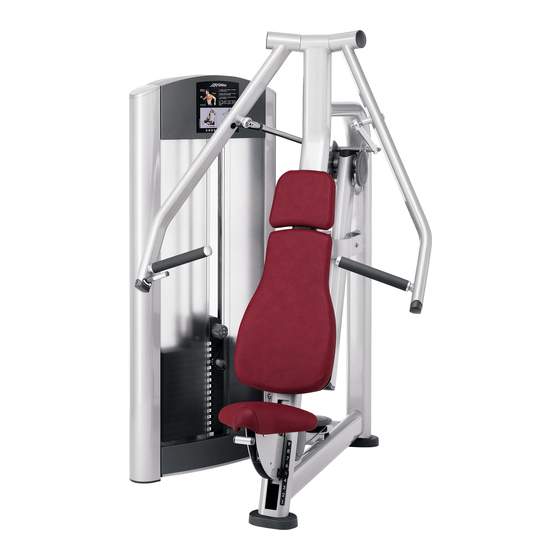

- Page 1 SIGNATURE SERIES FZCP CHEST PRESS Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
FZCP CHEST PRESS CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY II COMPONENT ASSEMBLY LEGEND SEAT CARRIAGE ASSEMBLY SEAT CARRIAGE ASSEMBLY LEGEND ADJUSTER HANDLE ASSEMBLY MID-14 TOWER ASSEMBLY PLASTIC TOWER ASSEMBLY MID-14 WEIGHT STACK ASSEMBLY 5 LB. INCREMENT WEIGHT ASSEMBLY 10 LB. INCREMENT WEIGHT ASSEMBLY 15 LB. -
Page 3: Component Assembly
FZCP CHEST PRESS COMPONENT ASSEMBLY ________________________________________ Page 3 SEE PAGE 5 FOR LEGEND... -
Page 4: Component Assembly Ii
FZCP CHEST PRESS COMPONENT ASSEMBLY II ________________________________________ SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Fzcp Chest Press
7778001 ASSY, FZ ADJUSTER HANDLE 7330501 WLDMT, FZ SEAT SUPPORT 7120801 WLDMT, FZCP PIVOT ARM 7332101 WLDMT, FZCP ADJ START 7119701 WLDMT, FZCP PRESS ARM LH 7119601 WLDMT, FZCP PRESS ARM RH 7911101 ASSY, SEAT CARRIAGE 7419601 COVER, FOOT-20 DEG. -
Page 6: Seat Carriage Assembly
FZCP CHEST PRESS SEAT CARRIAGE ASSEMBLY - 7911101 ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Seat Carriage Assembly Legend
FZCP CHEST PRESS SEAT CARRIAGE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7911295 WLDMT, SEAT CARRIAGE SHDW GRAY 7889701 ROLLER, SEAT CARRIAGE 7911901 SPACER, .625 DIA X 16 GA. 7912001 SPRING, SEAT CARRIAGE 3232408 RING, BRE .443, 5100-46, ST,PP,B 3235703 SPRING, GAS 80N 7414301 STUD, M10 BALL END M10 X 1.5... -
Page 8: Adjuster Handle Assembly
FZCP CHEST PRESS ADJUSTER HANDLE ASSEMBLY - 7778001 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7777595 WLDMT, FZ SEAT ADJ HANDLE SHADOW GRAY 7331801 LINK, ADJUSTER 7331601 PIN, INDEX 7407501 PIN, LINK 3232401 RING, RETAINING, EXTERNAL 7287901 HANDLE, ADJUSTER 3110010 ROLL PIN, 1/8 X 7/8... -
Page 9: Mid-14 Tower Assembly
FZCP CHEST PRESS MID-14 TOWER ASSEMBLY - 7420401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7420101 ASSY, WEIGHT STACK MID-14 7326301 CAP, D-TUBE-BTM 7419801 ASSY, TOWER PLASTICS-MID Page 9... -
Page 10: Plastic Tower Assembly
FZCP CHEST PRESS PLASTIC TOWER ASSEMBLY - 7419801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7318601 COVER, TOWER- TOP FRONT 7318701 COVER, TOWER- TOP REAR 7318801 COVER, TOWER- BOTTOM FRONT 7318901 COVER, TOWER- BOTTOM REAR 3236501 M4 X 0.7 PHL PAN MS ST ZN... -
Page 11: Mid-14 Weight Stack Assembly
FZCP CHEST PRESS MID-14 WEIGHT STACK ASSEMBLY - 7420101 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK ITEM NO. QTY. PART NO. DESCRIPTION 7350701 ASSY, HEAD PLATE (14) 7328401 WEIGHT PLATE, 20 LB 7327601 ASSY, INCREMENT WT-5LB... -
Page 12: Lb. Increment Weight Assembly
FZCP CHEST PRESS 5 LB. INCREMENT WEIGHT ASSEMBLY - 7327601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328001 BRKT, INCREMENT WT - 5 LB 3236202 SCREW, M10 X1.5 25MM Page 12... -
Page 13: Lb. Increment Weight Assembly
FZCP CHEST PRESS 10 LB. INCREMENT WEIGHT ASSEMBLY - 7327701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328101 BRKT, INCREMENT WT - 10 LB 3236202 SCREW, M10 X1.5 25MM Page 13... -
Page 14: Lb. Increment Weight Assembly
FZCP CHEST PRESS 15 LB. INCREMENT WEIGHT ASSEMBLY - 7327801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328201 BRKT, INCREMENT WT - 15 LB 3236202 SCREW, M10 X1.5 25MM Page 14... -
Page 15: Head Plate Assembly
FZCP CHEST PRESS HEAD PLATE ASSEMBLY - 7350701 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK SEE PAGE 16 FOR LEGEND Page 15... -
Page 16: Head Plate Assembly Legend
FZCP CHEST PRESS HEAD PLATE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7326701 HEAD PLATE 7347801 STEM, 9 PLATE 3236001 BUSHING, SPRING PIN 7327201 WLDMT, INCREMENT WT PIN 8024501 SPRING, 1/2 OD X 1-1/2 7326101 KNOB, INC WT SELECTOR... -
Page 17: Image
FZCP CHEST PRESS IMAGE ________________________________________ Page 17...
