moon i-5 Owner's Manual
Hide thumbs Also See for i-5:

Advertisement

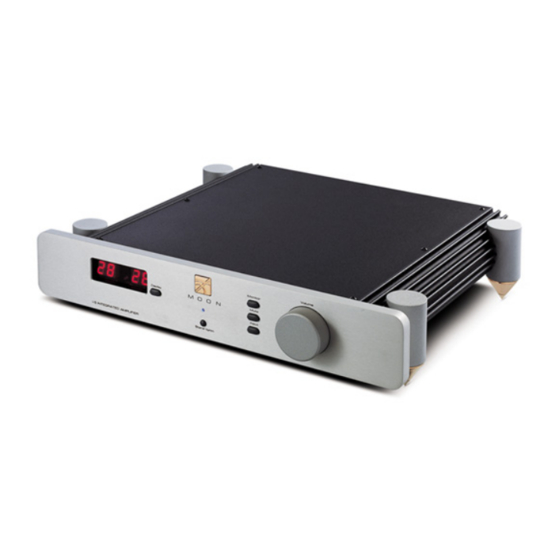

i-5

Integrated Amplifier

___________________________________________________________________________
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for moon i-5

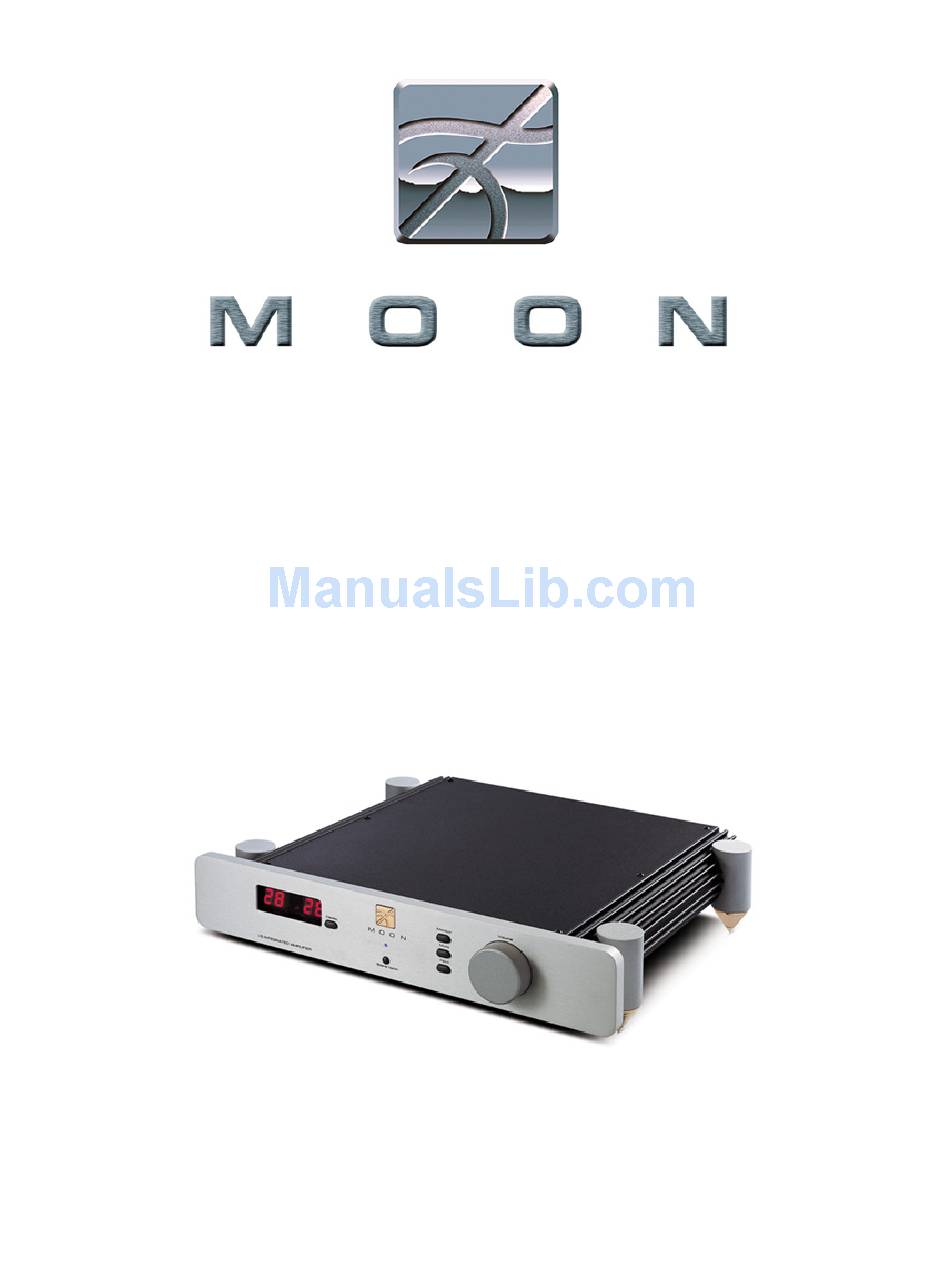

  • Page 1: Integrated Amplifier

    Integrated Amplifier ___________________________________________________________________________ Owner’s Manual...
  • Page 2: Table Of Contents

    Introduction ..........4 Unpacking and Warnings ......5 Installation Tips ........6 Front Panel Controls ........7 Rear Panel Connections........ 9 Operating the i-5 ........10 Remote Control Operation ......11 Specifications .......... 12 Service and Warranty ........ 13 www.simaudio.com IMPORTANT: Please read this entire manual before using this product.
  • Page 3: Congratulations

    MOON integrated amplifiers are so musically satisfying. The performance of your i-5 will continue to improve during the first six weeks of use. This is the result of a “break-in” period required for the numerous high quality electronic parts used throughout this amplifier.
  • Page 4: Introduction

    MOON i-5 Integrated Amplifier Introduction Your MOON i-5 integrated amplifier incorporates many significant design features to achieve its “world class” level of performance. This is an abbreviated list of the more important features: Proprietary “Advanced Renaissance” Technology which eliminates feedback. The results are as follows: Real-time amplification is achieved since interactions from the speaker back to the amplifier are virtually eliminated;...
  • Page 5: Unpacking And Warnings

    MOON i-5 Integrated Amplifier Unpacking and Warning! The MOON i-5 Stereo integrated amplifier should be removed from its box with care. The following accessories should be included inside the box with your integrated amplifier: AC power cable ‘SRM’ Full Function remote control with three ‘AAA’ batteries (USA and Canada only) 4 Pointed screw-on tips (for the integrated amplifier’s legs)
  • Page 6: Installation Tips

    These tips will easily scratch most surfaces, therefore it’s advisable to follow these instructions: 1) Place your i-5 on a soft surface (i.e. carpet) and carefully turn it so that it rests on its side. 2) Screw one tip onto each of the four cones.
  • Page 7: Front Panel Controls

    Directly to the right of the digital display window is a button labeled “Display” which allows you to turn the digital display on and off. The sonic performance of the MOON i-5 integrated amplifier may improve slightly when the display is turned off simply because the power supply has one less task to perform.
  • Page 8 (4) other inputs, repeat the aforementioned procedure. As well, powering down the i-5 via the rear panel rocker switch will reset the A4 to the factory default ‘normal’ mode. Pressing the “Input” selector button allows you to sequentially cascade through each of the possible inputs in the following order: CD, A1, A2, A3 and A4.
  • Page 9: Rear Panel Connections

    CD-Recordable Player. Keep in mind that the output level on the ‘Tape Out’ is fixed and cannot be adjusted by the i-5’s volume control. As well, don’t hesitate to use high quality interconnect cables. Poor quality interconnect cables can degrade the overall sonic performance of your system.
  • Page 10: Operating The I-5

    In the event that you plan to be away from your home for a few days, powering off the i-5 may not be a bad idea. Once fully “broken-in”, please keep in mind that your i-5 will require several hours of playing time before it reaches its peak performance after you’ve powered it up again.
  • Page 11: Remote Control Operation

    MOON i-5 Integrated Amplifier Remote Control Operation The MOON i-5 Stereo integrated amplifier uses the ‘SRM’ simple function, all aluminum remote control (figure 3). It operates on the Philips RC-5 communication protocol and is can be used with other Simaudio MOON components such as the P-3 preamplifier and the i-5080 integrated amplifier.
  • Page 12: Specifications

    THD (20Hz - 20kHz @ 1 watt) ....< 0.1% Remote Control ........All Aluminum Simple-Function (SRM) Optional Phono Section ......MOON IPS - external AC Power Requirements ......120V / 60Hz or 240V / 50Hz Fuse Replacement - 120V ......4A long fast blow Fuse Replacement - 230V ......
  • Page 13: Service And Warranty

    Service and Warranty (U.S.A and Canada only) Please take the time to complete and mail the warranty card supplied with your MOON i-5 integrated amplifier. This card is necessary to activate your full warranty, as well as allowing you to receive...
