i-5080
Integrated Amplifier
___________________________________________________________________________
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-5080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for moon i-5080

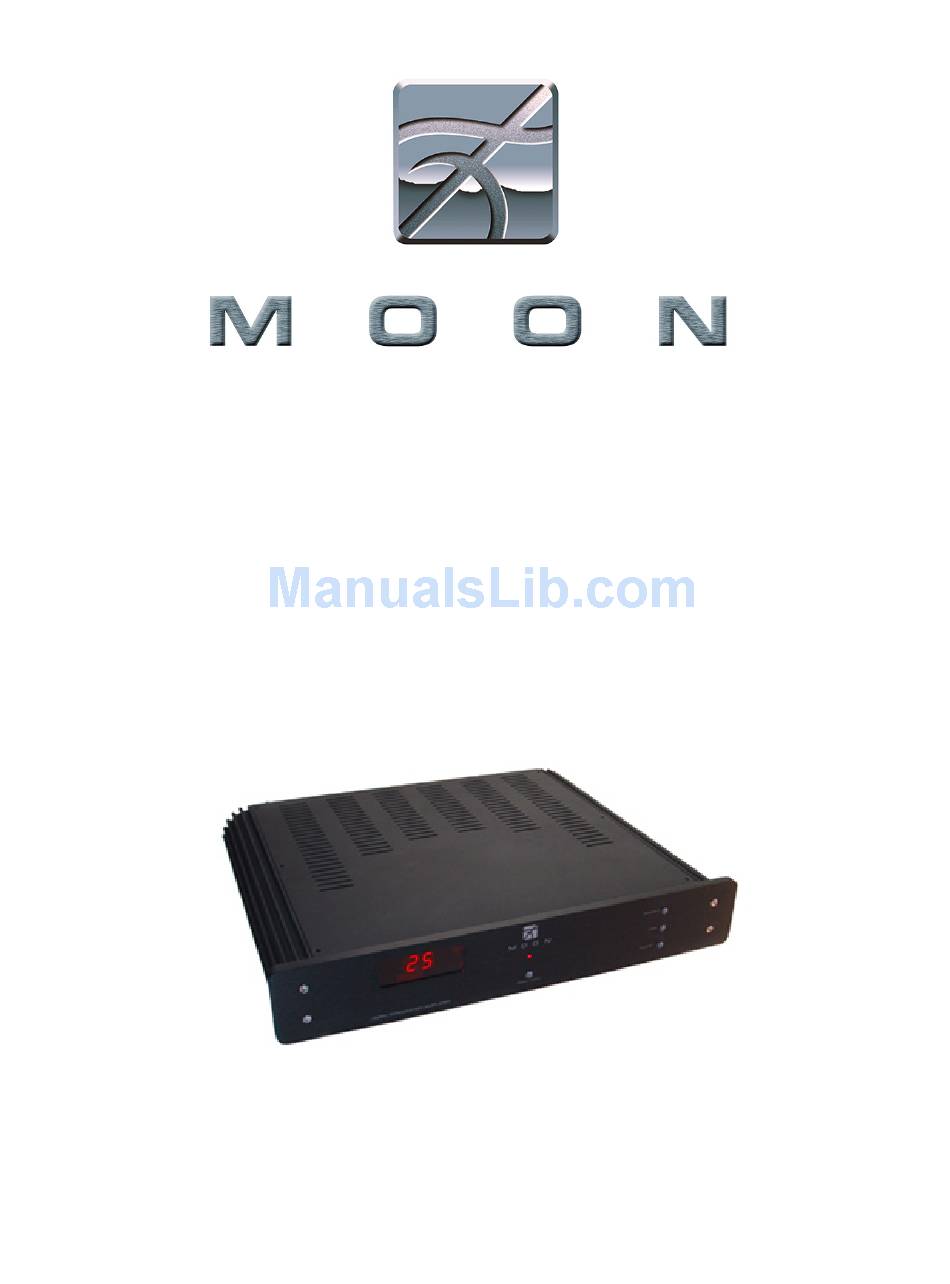

  • Page 1 Integrated Amplifier ___________________________________________________________________________ Owner’s Manual...
  • Page 2: Table Of Contents

    Introduction ..........4 Unpacking and Warnings ......5 Installation Tips ........6 Front Panel Controls ........7 Rear Panel Connections........ 9 Operating the i-5080 ........ 10 Remote Control Operation ......11 Specifications .......... 12 Service and Warranty ........ 13 www.simaudio.com IMPORTANT: Please read this entire manual before using this product.
  • Page 3: Congratulations

    MOON integrated amplifiers are so musically satisfying. The performance of your i-5080 will continue to improve during the first six weeks of use. This is the result of a “break-in” period required for the numerous high quality electronic parts used throughout this amplifier.
  • Page 4: Introduction

    MOON i-5080 Integrated Amplifier Introduction Your MOON i-5080 integrated amplifier incorporates many significant design features to achieve its “world class” level of performance. This is an abbreviated list of the more important features: Proprietary “Advanced Renaissance” Technology which eliminates feedback. The results are as follows: Real-time amplification is achieved since interactions from the speaker back to the amplifier are virtually eliminated;...
  • Page 5: Unpacking And Warnings

    MOON i-5080 Integrated Amplifier Unpacking and Warning! The MOON i-5080 Stereo integrated amplifier should be removed from its box with care. The following accessories should be included inside the box with your integrated amplifier: AC power cable ‘SRM’ Full Function remote control with two ‘AAA’ batteries (USA and Canada only) This owner’s manual...
  • Page 6: Installation Tips

    MOON i-5080 Integrated Amplifier Installation Tips The MOON i-5080 Stereo integrated amplifier should be placed on a rigid surface to prevent any accidents such as falling over. It is highly recommended that it sits on its own dedicated shelf. This integrated amplifier has side-mounted heat sinks; Consequently, it should both be placed in a location with empty space it for proper heat dissipation.
  • Page 7: Front Panel Controls

    LED will not be illuminated when the i-5080 is in “Stand by” mode. When the i-5080 is in “on” mode, holding down the “Stand by/On” for two (2) seconds will turn off the front panel digital display. Repeating this procedure will turn the front panel digital display back on.
  • Page 8 Front Panel Controls (continued) The “Input” selector button allows you to choose which input source you wish to listen to. The MOON i-5080 integrated amplifier has six (6) inputs. The A4 input is a ‘pass-through’ which bypasses the i-5080’s gain section, allowing you to control the gain setting via the source component’s own volume control –...
  • Page 9: Rear Panel Connections

    CD-Recordable Player. Keep in mind that the output level on the ‘Tape Out’ is fixed and cannot be adjusted by the i-5080’s volume control. As well, don’t hesitate to use high quality interconnect cables. Poor quality interconnect cables can degrade the overall sonic performance of your system.
  • Page 10: Operating The I-5080

    Then turn on your integrated amplifier in the following manner: 1) Flick the main rocker switch labeled “POWER” to the ‘1’ (on) position on the rear of the i-5080. 2) Press the push button labeled “Stand by/On” on the i-5080. The red LED will illuminate and the digital display will indicate a gain setting of ‘0’...
  • Page 11: Remote Control Operation

    MOON i-5080 Integrated Amplifier Remote Control Operation The MOON i-5080 Stereo integrated amplifier uses the ‘SRM’ simple function, all aluminum remote control (figure 3). It operates on the Philips RC-5 communication protocol and is can be used with other Simaudio MOON components such as the P-3 preamplifier and the i-5 integrated amplifier.
  • Page 12: Specifications

    THD (20Hz - 20kHz @ 1 watt) ....< 0.15% Remote Control ........All Aluminum Simple-Function Optional Phono Section ......MOON IPS - external AC Power Requirements ......120V / 60Hz or 240V / 50Hz Fuse Replacement - 120V ......4A long fast blow (3AG type) Fuse Replacement - 230V ......
  • Page 13: Service And Warranty

    In order to prevent any damage during transport, the i-5080 must be packed with all of its original internal materials and shipped in the original box. Please keep your box and shipping materials.
