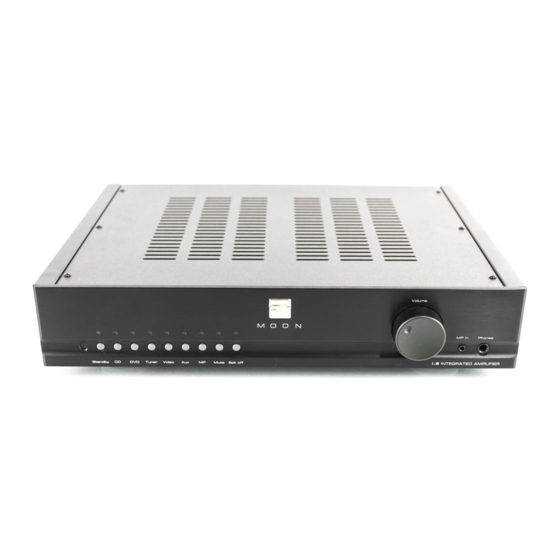

moon i.5 Owner's Manual

Integrated amplifier
Hide thumbs Also See for i.5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Owner's Manual
MOON
i.5
Integrated Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i.5 and is the answer not in the manual?

Questions and answers

Related Manuals for moon i.5

Summary of Contents for moon i.5

  • Page 1 Owner’s Manual MOON Integrated Amplifier...

  • Page 2: Important Safety Instructions

    MOON i.5 Integrated Amplifier Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 To prevent shock hazard, all three connections must ALWAYS be used. Connect the MOON i.5 only to an AC source of the proper voltage; Both the shipping box and rear panel serial number label will indicate the correct voltage. Use of any other voltage will likely damage the unit and void the warranty AC extension cords are NOT recommended for use with this product.

  • Page 4: Table Of Contents

    Congratulations ..........5 Unpacking and Warnings ........5 Introduction ............ 6 Installation & Placement ........6 Front Panel Controls ......... 7 Rear Panel Connections ........8 Operating the i.5 ..........9 Remote Control Operation ........10 Specifications ..........11 www.simaudio.com Revision no.: 20091110 ____________________________________________________________________________________...

  • Page 5: Congratulations

    MOON integrated amplifiers are so musically satisfying. The performance of your i.5 will continue to improve during the first 400 hours of listening. This is the result of a “break-in” period required for the numerous high quality electronic parts used throughout this integrated amplifier.

  • Page 6: Introduction

    Installation & Placement The MOON i.5 requires reasonable ventilation to maintain an optimum and consistent operating temperature. As a result, it should be placed in a location with empty space around it for proper heat dissipation. As well, it should be placed on a solid level surface.

  • Page 7: Front Panel Controls

    The blue indicator LED does not illuminate when the i.5 is in “Standby” mode. The MOON i.5 integrated amplifier has six (6) inputs labeled CD, DVD, Tuner, Video, Aux, and MP. Each of the first five (5) inputs has a corresponding pair of input connections located on the unit’s rear panel (refer to the section entitled “Rear Panel...

  • Page 8: Rear Panel Connections

    RCA inputs in the event that you wish to use your MOON i.5 as a preamplifier only. The output level on the ‘PRE OUT’ is variable and is adjusted by the i.5’s volume control.

  • Page 9: Operating The I.5

    In the event that this can’t be avoided, you should ensure that any cables coming into contact with each other are crossed at a ninety degree angle to minimize the contact area.

  • Page 10: Remote Control Operation

    To engage the CRM remote for use with the MOON i.5 Integrated Amplifier, you must first press the button labeled AMP.

  • Page 11: Specifications

    MOON i.5 Integrated Amplifier Specifications Configuration ............Stereo Class Of Operation - Amplifier ........Class A/B Single-ended inputs ..........5 (RCA) Mini-jack input ............1 (1/8”) Input Sensitivity ............. 370mV – 3.0V RMS Input Impedance ........... 11,000Ω Preamplifier output ..........1 (RCA) Headphone output ...........
