ADTRAN BLUESOCKET 1930 Quick Start Manual

B
LUESOCKET
P/N 1700950F1, 1700951F1
H
ARDWARE

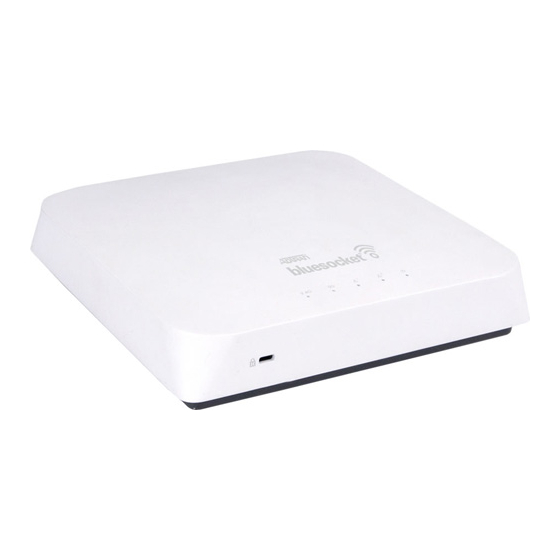

The following items are included in your shipment:
• Bluesocket 1930/1935 Access Point (BSAP)
• One wall/ceiling mounting hardware kit (two plastic anchors, two mounting screws)
• One flush/recessed ceiling T-rail mounting hardware kit (one flush mount bracket, one recessed
mount bracket, four small screws)

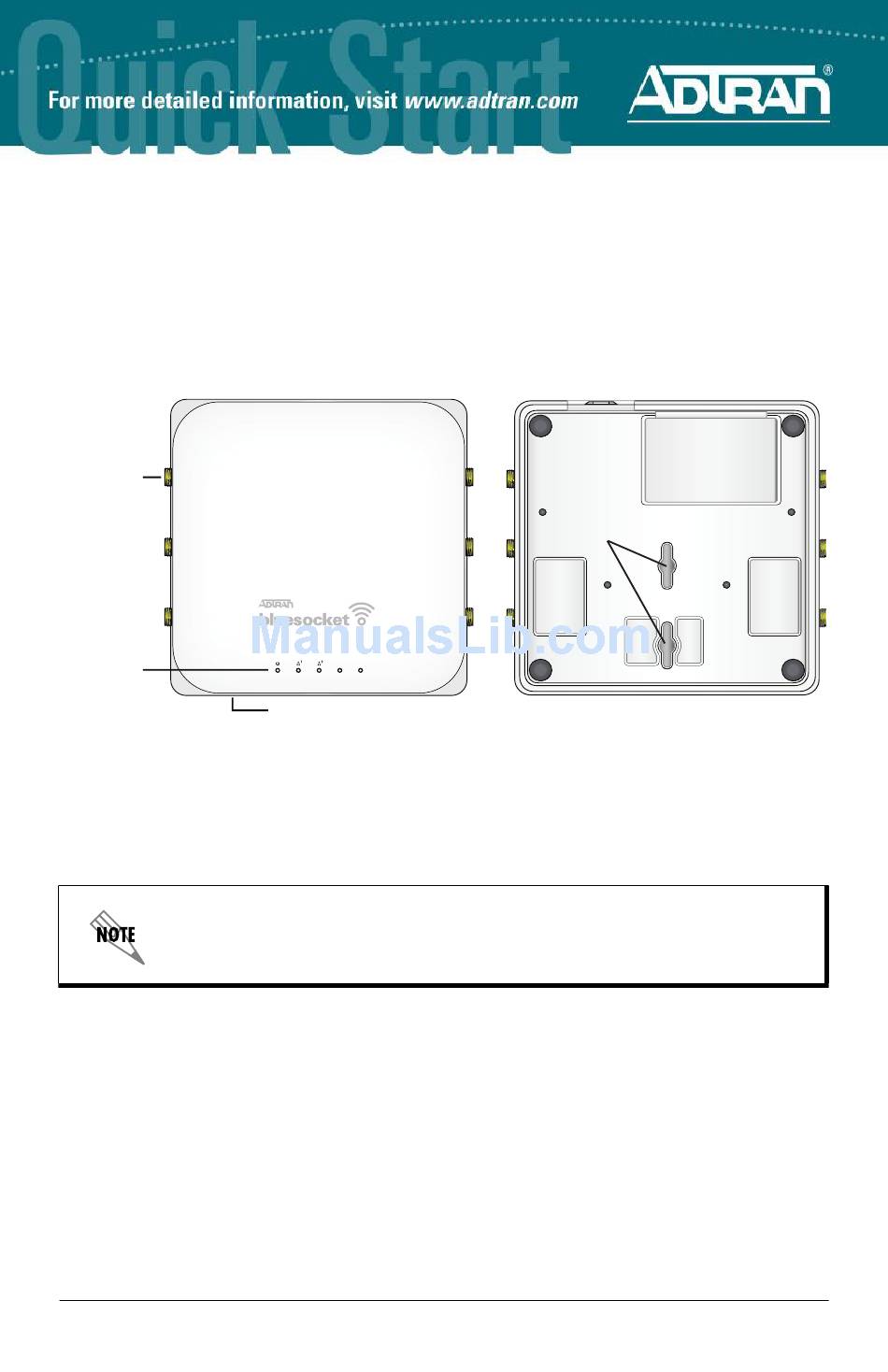

Antenna
Connectors
BSAP 1935
Only
LEDs
A
NTENNAS
The BSAP 1930 provides one integrated, six element high-efficiency Planar Inverted F Antenna (PIFA)
array with 3 dBi gain (no external antennas are required). The BSAP 1935 provides six reverse-polarity
subminiature version A (RP-SMA) antenna connectors (no integrated antennas are included with this
model). Three antenna connectors are labeled 2.4 G and three labeled 5 G. These antennas/connectors
support two internal 802.11 radios: one 2.4 GHz 802.11b/g/n radio, and one 5 GHz 802.11a/n radio. Six
modular high-efficiency omnidirectional antennas with 3 dBi gain can be purchased separately for the
BSAP 1935 (three 2.4 GHz and three 5 GHz, ADTRAN P/N 1700931F1).
Make a note of the 12-character MAC address and serial number listed on the
back of the BSAP 1930/1935 before mounting the BSAP to a wall or other
surface. This information will be required during configuration.
M
OUNTING THE
BSAPs should be positioned for maximum throughput and range between other APs and wireless client
devices. Follow these instructions to mount the BSAP on an interior ceiling or wall using the enclosed
ceiling/wall mounting kit:
1. BSAP 1935 only: Install the antennas (sold separately) onto the appropriate antenna ports. Both the
antenna ports and antennas are labeled 2.4G and 5G.
2. Using a 0.25-inch (0.65 cm) drill bit, drill two holes in the ceiling or wall 2.75 inch (4.45 cm) apart,
and tap the anchors into the holes.
3. Drive the provided mounting screws into the plastic anchors leaving enough of the screws exposed
to ensure that the screws can be inserted into the keyed slots in the bottom of the unit.
4. Insert the screws into the keyed slots on the bottom of the BSAP and slide the BSAP forward (or
backward) on the screws to securely mount it in place.
5. Optionally, protect your BSAP with a Kensington cable lock (not provided) in the security slot
Quick Start Guide, 61700950F1-13C, July 2014
1930/1935 A
2.4G 5G
Kensington Lock Slot
BSAP C
TO A EILING OR
P
CCESS OINT
Keyed Slots
W
ALL
LAN 2 LAN 1 DC-IN CONSOLE
1
