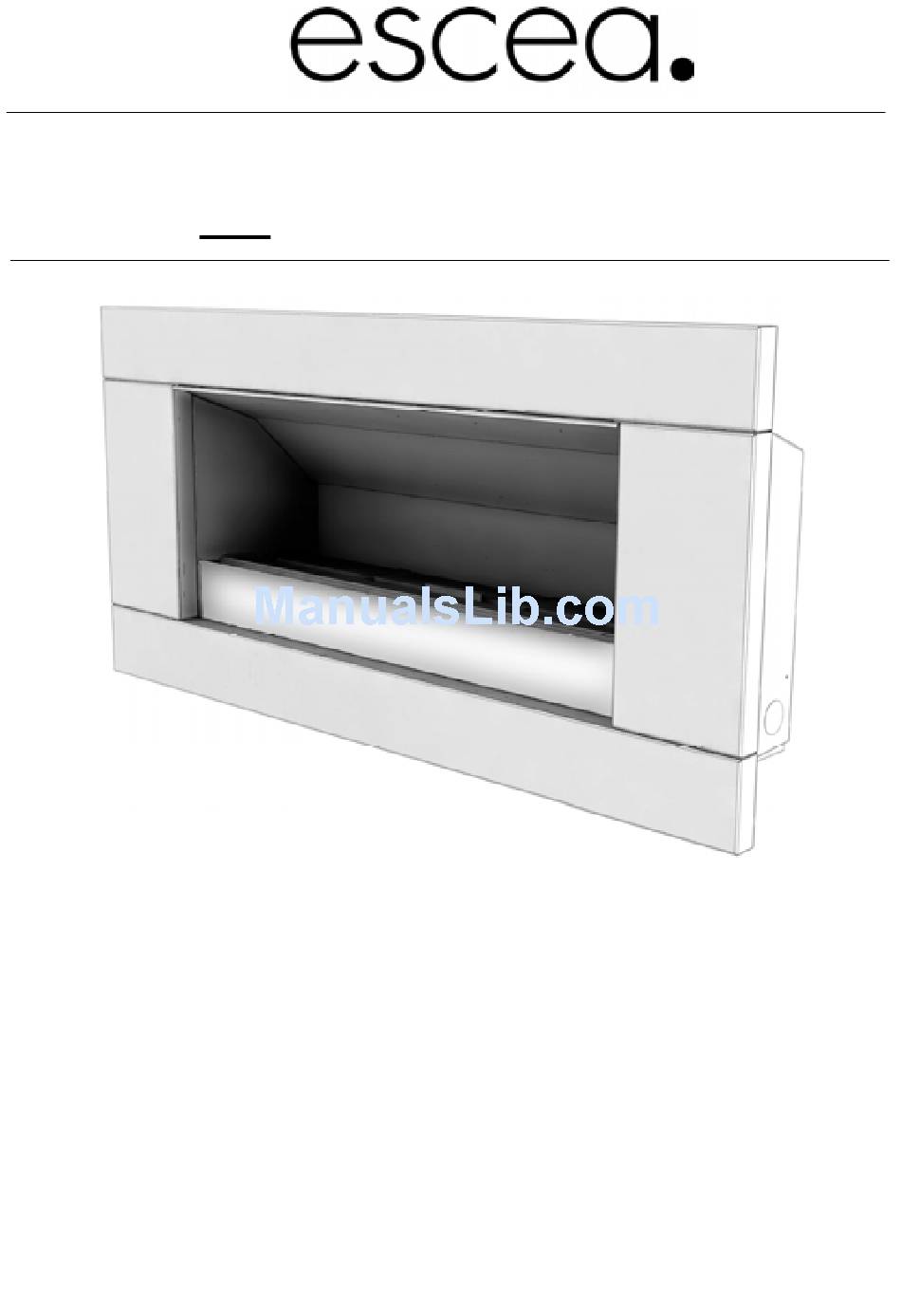

Installation Manual
EF5000 – AUS
Important:
The appliance shall be installed in accordance with;
• Local gas fitting regulations
• Municipal building codes
• AS 5601 / AG 601—2000, Gas installations
• Any other relevant statutory regulations.
• TO BE INSTALLED ONLY BY AN AUTHORIZED PERSON
• THIS APPLIANCE MUST NOT BE INSTALLED OR USED INDOORS
• INSTRUCTIONS MUST BE LEFT WITH THE CONSUMER AND THE CONSUMER
TO RETEAIN THEM FOR FUTURE REFERENCE.
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.net
For contact details of your local Escea distributor or dealer please visit www.escea.net
v 2.0
630051_2 Installation Manual EF5000 AUS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Escea EF5000
Summary of Contents for Escea EF5000
- Page 1 • INSTRUCTIONS MUST BE LEFT WITH THE CONSUMER AND THE CONSUMER TO RETEAIN THEM FOR FUTURE REFERENCE. Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.net For contact details of your local Escea distributor or dealer please visit www.escea.net...
- Page 2 The 240/24volt plug pack MUST be installed inside and out of the weather. It MUST be kept dry and protected from rain and water ingress. This Gas Fire is for outdoor use only. 630051_2 Installation Manual EF5000 AUS...
-
Page 3: Table Of Contents
Testing of touch panel and spark ignition 12.0 Checking operating pressure 13.0 Assembly of stone cartridge 14.0 Fitting the fascia 15.0 Placement of ceramic pebbles 16.0 Operating Instructions 17.0 Maintenance and cleaning 18.0 Electrical Schematic 19.0 630051_2 Installation Manual EF5000 AUS... -
Page 4: Product Description
Product Description: The escea EF5000 flame effect gas fire is designed for outdoor use only. This appliance re- quires no flue and must be permanently installed into a cavity. It may be installed into a tim- ber cavity. The fire is controlled by the user from a switch that is situated on the lower right hand side of the stainless steel fascia. -
Page 5: Power Supply
2000mm. Warning: Under no circumstances should any object such as people, pets, furniture, etc. be closer than 1 metre in front of the escea EF5000. 630051_2 Installation Manual EF5000 AUS... -
Page 6: Wall Cladding Around The Fire
Certain materials or items, when placed under or near the appliance, will be subjected to ra- diant heat and could become damaged. The following installation diagrams are escea recommendations only and may or may not comply with your local council standards. Please check with your local council for actual building standards. - Page 7 Rectangular areas have been used in the above diagrams; the same principles apply to any other shaped area. In the case of balconies, at least 20% of the total wall area should be and remain open and unrestricted. 630051_2 Installation Manual EF5000 AUS...
-
Page 8: Corner Installations
Allowances need to be made for cladding the internal of the cavity. Dimensions of the cavity in this diagram represent the internal size only. 1000 Minimum Minimum Minimum clearance distance between adjacent wall and fascia needs to be no less than 270mm. 630051_2 Installation Manual EF5000 AUS... -
Page 9: Laying Gas Pipe
EF5000 Natural Gas = 52 Mj/hr EF5000 Propane = 40 Mj/hr It is highly recommended to install an easily accessible isolating shut off valve (ball valve) along the gas line to the EF500 unit which should be easily accessible to the user. -
Page 10: Fixing The Fire Into The Cavity
Escea EF5000, will void the limited appliance warranty. 10.2 The EF5000 must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½ psi (3.5 kPa). - Page 11 This can be done with the gas supply either turned on or off. With the power supply and power switch connected, Lean the fascia Right end up beside the fire and run through the steps for igniting the pilot (refer to section 17.0 for instructions). 630051_2 Installation Manual EF5000 AUS...
-
Page 12: Checking Operating Pressure
C = Inlet pressure test point D = Inlet gas connection. EF 1200 Pressure table EF5000 Pressure table Natural Minimum Inlet pressure 2.5 kPa 1.0 kPa Maximum Inlet pressure 5.0 kPa 5.0 kPa Operating Pressure 2.0 kPa 1.0 kPa 630051_2 Installation Manual EF5000 AUS... -
Page 13: Assembly Of Stone Cartridge
(River Stones) are also supplied, use these to fill the stone cartridge. 14.1 With the glass in position, fix the stone cartridge to the fire by using the two supplied screws in the location shown below. Do this before the fascia is fitted. 630051_2 Installation Manual EF5000 AUS... -
Page 14: Fitting The Fascia
Before fitting the fascia, the hooks must be attached using the screws supplied. Ensure the wires connecting the fascia to the fire are securely connected, as per section 11.0. The EF5000 fascia is attached to the combustion box by four ‘hooks’ on the corners of the fascia. - Page 15 Objects such as wood, coal, fire logs or any other solid fuels shall not be burned in the gas fireplace. Under no circumstances should any part of your body enter the gas fireplace during the start-up or whilst the fire is running. 630051_2 Installation Manual EF5000 AUS...
-
Page 16: Operating Instructions
17.0 Operating Instructions: The EF5000 is operated by the switch located on the right hand side outer edge of the fas- cia. The basic operations possible are ON/OFF. Before operating the fire, ensure the power transformer is plugged into the mains wall socket &... -
Page 17: Maintenance And Cleaning
18.2 Cleaning of the burners and ceramic stones can be carried out using a brush and a dry cloth and should be done at least annually. This will remove carbon or soot build-up. 630051_2 Installation Manual EF5000 AUS... -
Page 18: Electrical Schematic
19.0 Electrical Schematic 630051_2 Installation Manual EF5000 AUS... - Page 19 630051_2 Installation Manual EF5000 AUS...
-
Page 20: Natural Gas
5mm x 1 off per burner Rear Burner Aeration Hole 11mm x 2 off per burner 5mm x 1 off per burner Mj/hour For any inquires, please contact your local Escea distributor or dealer www.escea.net 630051_2 Installation Manual EF5000 AUS...
