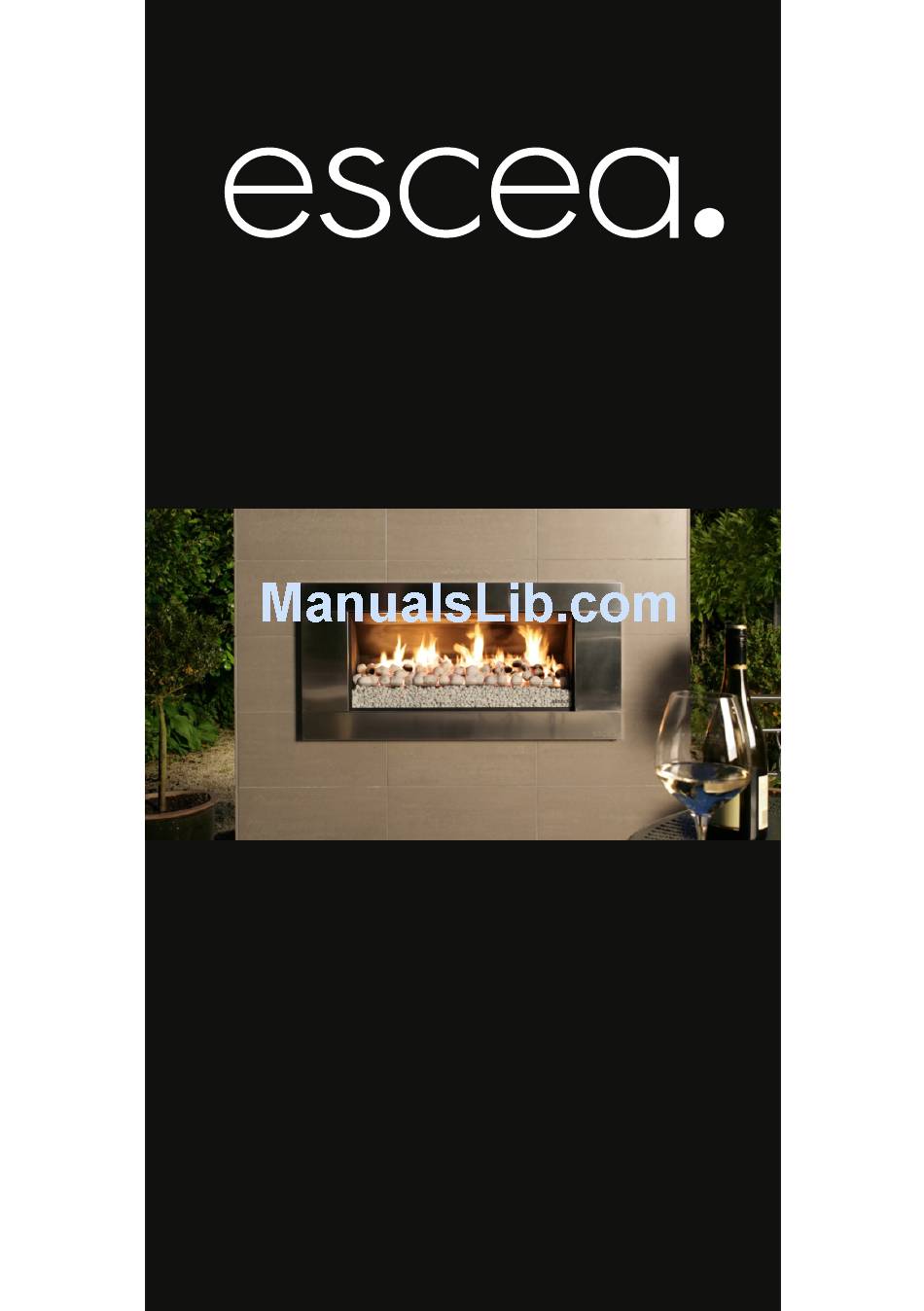

- Page 1 OUTDOOR GAS FIREPLACE USER GUIDE North America 630299_0 EF5000 www.escea.net SERIAL NUMBER 71000 AND ABOVE...
- Page 2 Any service work carried out on this appliance must only be done by a recognised escea technician or authorized personnel. The data plate for this appliance, containing technical information and specifications, can be found to the right of the control tray, near the base of the fire.
-
Page 3: Table Of Contents
Contents Basic Operation Removing the Fascia Replacing Batteries Cleaning and Maintenance Warranty Information... -
Page 4: Basic Operation
Basic Operation The EF5000 is operated by the touch control located on the Right hand side outer edge of the fascia. The basic operations possible from the touch control are ON/OFF and manual adjustment of the flame height. Flame Up... - Page 5 Basic Operation Adjusting the flame height: While the fire is on, push the FLAME UP button or the FLAME DOWN button to increase or decrease the flame height. If the FLAME UP button is pushed while the fire is on HIGH burner flame position, nothing will happen.
- Page 6 Basic Operation -Check batteries are charged and inserted correctly. -Check that the cable connecting the fascia to the fireplace is connected. High Pilot...
-
Page 7: Removing The Fascia
Removing the Fascia The EF5000 Stainless Steel fascia is attached to the fire by four 'hooks' on the corners of the fascia. If you need to remove the fascia, first give the fascia a brief lift upwards as shown. Now pull the fascia towards you, and rest the Fascia on the brackets... -
Page 8: Replacing Batteries
Replacing Batteries The EF5000 uses 4x AA sized batteries, To access the battery pack you will need to remove the fascia (as described on previous page). When the fascia has been removed, you will find the battery pack located in the lower right of the fire, velcroed to the chassis wall. -
Page 9: Cleaning And Maintenance
Escea Gas Fireplace. Never ever rub the fascia. The outside of an Escea Fascia must only be cleaned with a soft microfibre cloth. If heavier cleaning is required for the likes of grease or stubborn fingerprint removal we recommend the use of: Steel Kleen brand Ezi Wipes for stainless steel fascias only, and warm soapy water for powder coated fascia’s. -
Page 10: Warranty Information
Ensure your strokes still follow the direction of the grain or brush finish. 6. Ensure that no film is applied to the glass of your Escea Gas Fireplace. If applied accidentally, wipe off with an absorbent microfibre cloth. - Page 11 Where an Escea product is covered by a parts and labor warrantee, the warrantee covers both the repair by Escea of the defective part or the provision of a spare part to replace the defective part and the installation of that part.
- Page 12 3.1.11 Subjective factors (e.g. like noise or smell) that have been investigated by Escea (or their technicians) and confirmed to be within normal operational parameters; 3.1.12 Any differences in fireplace appearance from Escea promotional images that is due to printing limitations, environmental factors or gas type.
- Page 13 Where you make a claim under this warrantee, an authorized repairer may need to attend your premises to inspect the Escea product. We may charge you a service call fee if a repairer will be required to travel more than 30 miles from the nearest service centre to your location. You may obtain details on the location of service centres and service call fees by visiting the distributor website or calling distributor customer care line.
