Escea EF5000 User Manual

Gas fire
Hide thumbs Also See for EF5000:

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

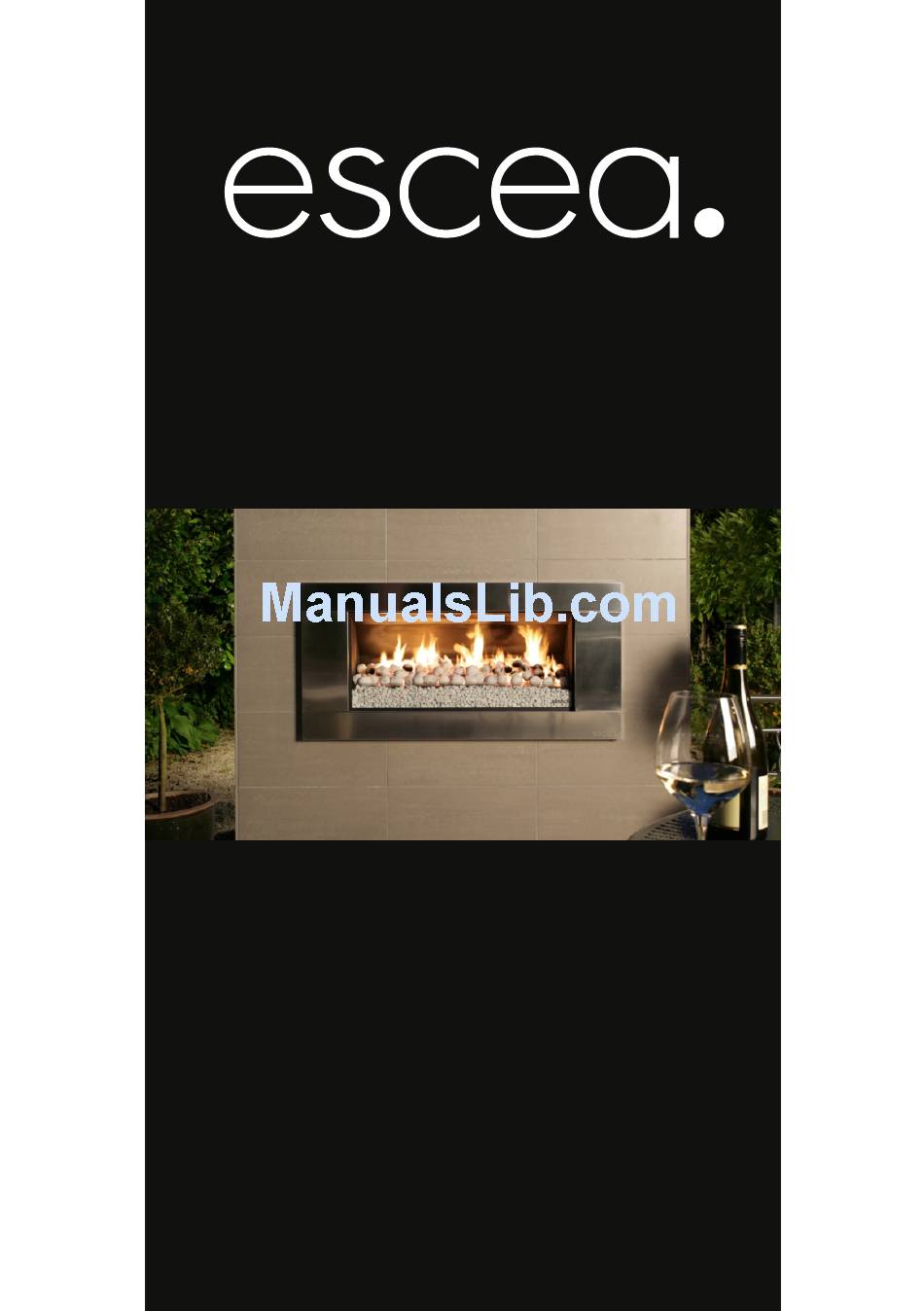

GAS FIRE USER GUIDE
New Zealand
630163_5
EF5000
www.escea.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the EF5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Escea EF5000

Summary of Contents for Escea EF5000

  • Page 1 GAS FIRE USER GUIDE New Zealand 630163_5 EF5000 www.escea.net...
  • Page 2 Any service work carried out on this appliance must only be done by a recognised escea technician or authorised personnel. The data plate for this appliance, containing technical information and specifications, can be found to the right of the control tray, near the base of the fire.

  • Page 3: Basic Operation

    Replacing Batteries Cleaning and Maintenance The EF5000 electronic control system is designed to work within the temperature range of 0°C to 70°C, with a humidity level that is non condensing. This is to ensure safe operation of the electronic and gas control system.
  • Page 4 Basic Operation The EF5000 is operated by the touch control located on the right hand side outer edge of the fascia. The basic operations possible from the touch control are ON/OFF and manual adjustment of the flame height. Before operating the fire, switch the Battery Isolating Switch on.
  • Page 5 Basic Operation Adjusting the flame height: The EF5000 has 4 flame positions: PILOT flame only, LOW burner flame, MEDIUM burner flame and HIGH burner flame. While the fire is on, push the FLAME UP button or the FLAME DOWN button to increase or decrease the flame height.
  • Page 6 Basic Operation...
  • Page 7 Removing the Fascia The EF5000 Stainless Steel fascia is attached to the fire by four 'hooks' on the corners of the fascia. If you need to remove the fascia, first give the fascia a brief lift upwards as shown. Now pull the fascia towards you, and rest the Fascia on the ground...
  • Page 8 Replacing Batteries The EF5000 uses 3x D sized batteries, To access the battery pack you will need to remove the fascia (as described on previous page). When the fascia has been removed, you will find the battery pack located in the lower middle of the fire, situated inside the control box.
  • Page 9 Escea Gas Fireplace. Never ever rub the fascia. The outside of an Escea Fascia must only be cleaned with a soft microfibre cloth. If heavier cleaning is required for the likes of grease or stubborn fingerprint removal we recommend the use of Steel Kleen brand Ezi Wipes.
  • Page 10 Ensure your strokes still follow the direction of the grain or brush finish. 6. Ensure that no film is applied to the glass of your Escea Gas Fireplace. If applied accidentally, wipe off with an absorbent microfibre cloth.
