4. Connect the three-wire connector to
the bulb; then install the rubber
boot.
CAUTION
When replacing the headlight bulb,
be careful not to touch the glass
portion of the bulb. Grasp the new
bulb with a clean cloth.
License Plate Light
To replace the license plate bulb, use the
following procedure.
1. Remove the two screws and remove
the lens.
2. Pull out the bulb.
3. Install the new bulb by pushing it in.
4. Install the lens. Tighten the two
screws securely.
Turn Signal Light - Rear/
Taillight/Brakelight
To replace the turn signal light - rear/
taillight/brakelight bulb, use the follow-
ing procedure.
1. Rotate the socket counterclockwise
and remove it from the housing.
2. To remove the bulb from the socket,
push in and rotate counterclockwise.
3. To install the bulb, push in and turn
clockwise.
4. Insert the socket into the housing
and rotate it clockwise.
Turn Signal Light -
Front/ Position Light -
Front
To replace the turn signal light front/
position light front bulb, use the follow-
ing procedure.
1. Rotate the socket counterclockwise
and remove it from the housing.
2. To remove the bulb from the socket,
pull it straight out of the socket.
3. To install the bulb, push it straight
into the socket.
4. Insert the socket into the housing
and rotate it clockwise.

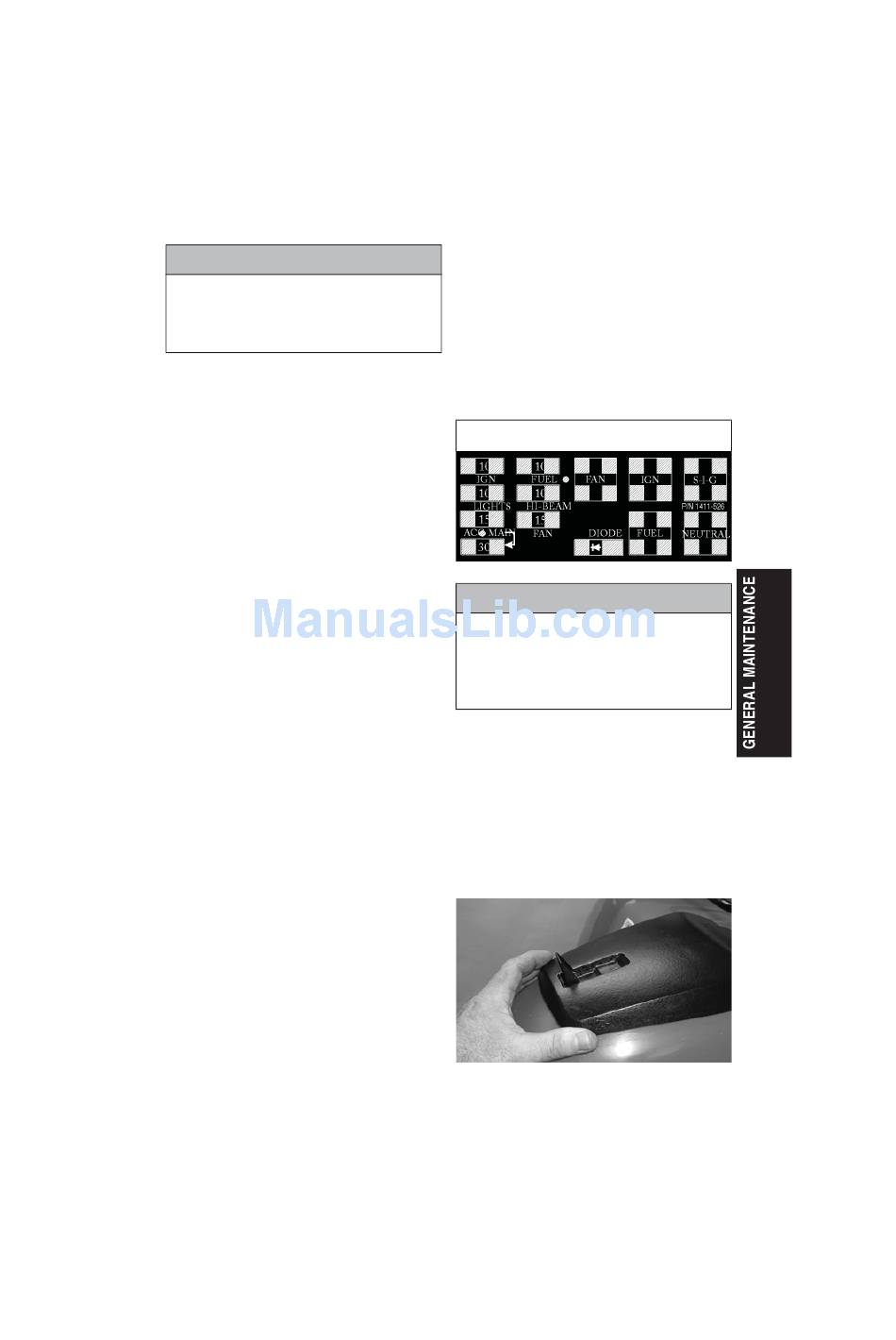

FUSES

The fuses are located in a power distri-
bution module under the seat. If there is
any type of electrical system failure,
always check the fuses first.
„
NOTE: To remove the fuse, com-
press the locking tabs on either
side of the fuse cover and lift off;
then remove and replace the fuse.
550 H1/TRV
CAUTION
Always replace a blown fuse with a
fuse of the same type and rating. If
the new fuse blows after a short
period of use, consult an authorized
Arctic Cat ATV dealer immediately.
STORAGE
COMPARTMENT/TOOLS
A basic tool kit is provided with the
ATV. Maintain the tool kit with the ATV
at all times. The tool kit is located under
the seat.
The storage compartment is above the
engine in front of the seat.
1411-526
AL675
59
